Description
Clear high impact acrylic sheet, grade IM30, in 2mm, 3mm and 5mm full sheets of 2030 × 1523mm. Also known as impact-modified acrylic, it has improved impact strength compared with standard extruded acrylic. It is less notch sensitive, so its impact strength is retained even after fabrication, and it is easier to thermoform and fabricate.
Why choose high impact acrylic
- Improved impact strength compared with standard extruded acrylic
- Less notch sensitive – keeps its impact strength after cutting and drilling

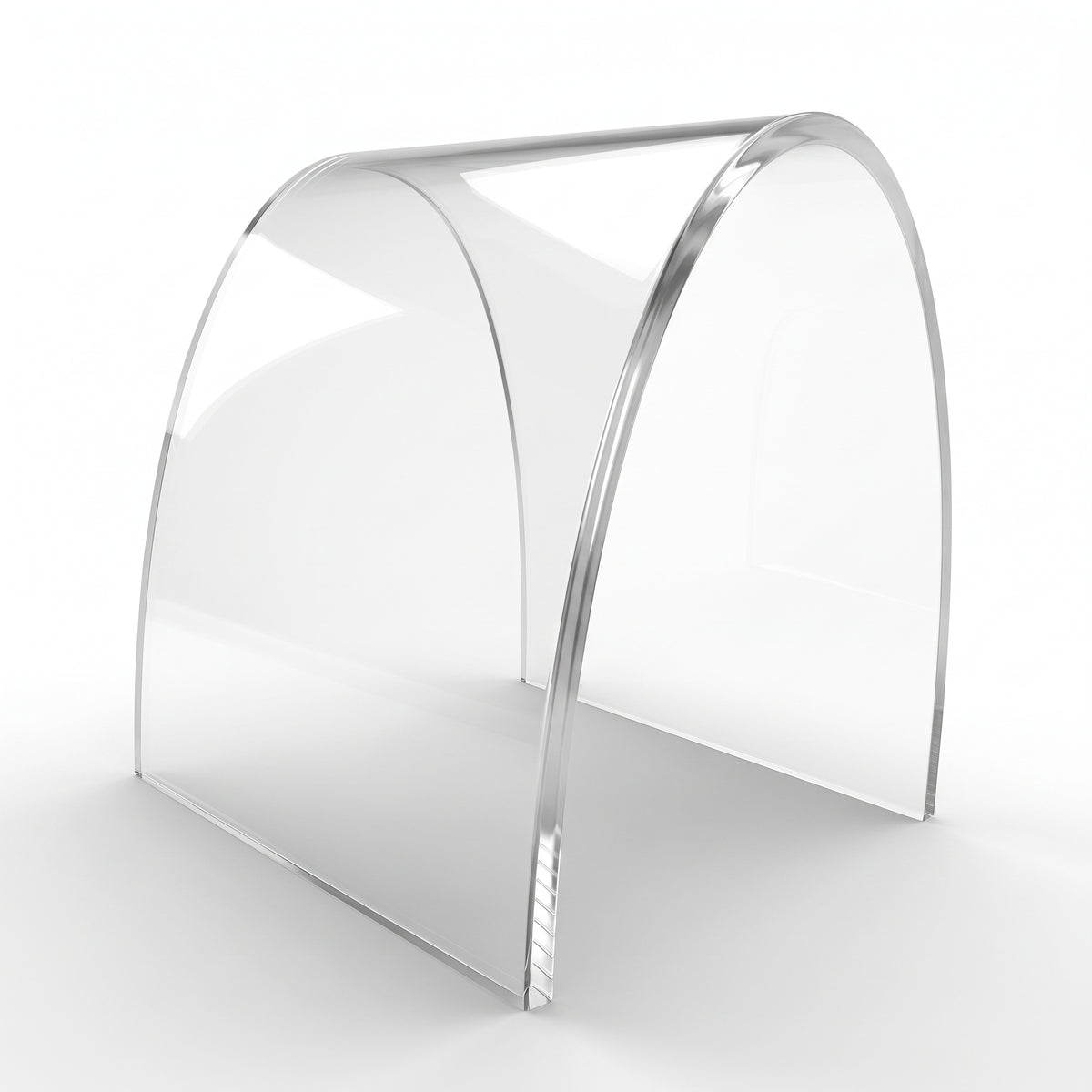

- Easier to thermoform and fabricate
- Gloss finish on both sides
- Protective film on both sides
- Normally in stock
Sizes and weights
| Thickness | Sheet size | Approx. weight |
|---|---|---|
| 2mm | 2030 × 1523mm | 7.4kg |
| 3mm | 2030 × 1523mm | 11.0kg |
| 5mm | 2030 × 1523mm | 18.4kg |
Specifications
- Material: Impact-modified acrylic (PMMA), grade IM30
- Colour: Clear
- Finish: Gloss both sides
- Supplied with protective film on both sides
Typical uses
- Thermoformed and fabricated parts
- Displays, covers and guards that may take knocks
- Parts that are cut or drilled, where standard acrylic could crack
Need even more impact strength?
For machine guards and anti-vandal glazing, see our clear polycarbonate sheet. For standard clear acrylic in cut sizes, see our clear acrylic sheet.
FAQ
Q: What size are the sheets?
A: 2030mm × 1523mm. A larger 3050mm × 2030mm sheet may be available – please get a quote.
Q: Is it easier to thermoform than standard acrylic?
A: Yes – its improved impact strength helps with ease of thermoforming and fabrication.
Q: Do you have 4mm?
A: Please get a quote and we'll check availability.
All sizes & prices
3 sizes · prices include VAT · tap a price to select that size
Need a size that isn't listed? We cut to order. Request a quote or call 01744 520110.
