Description

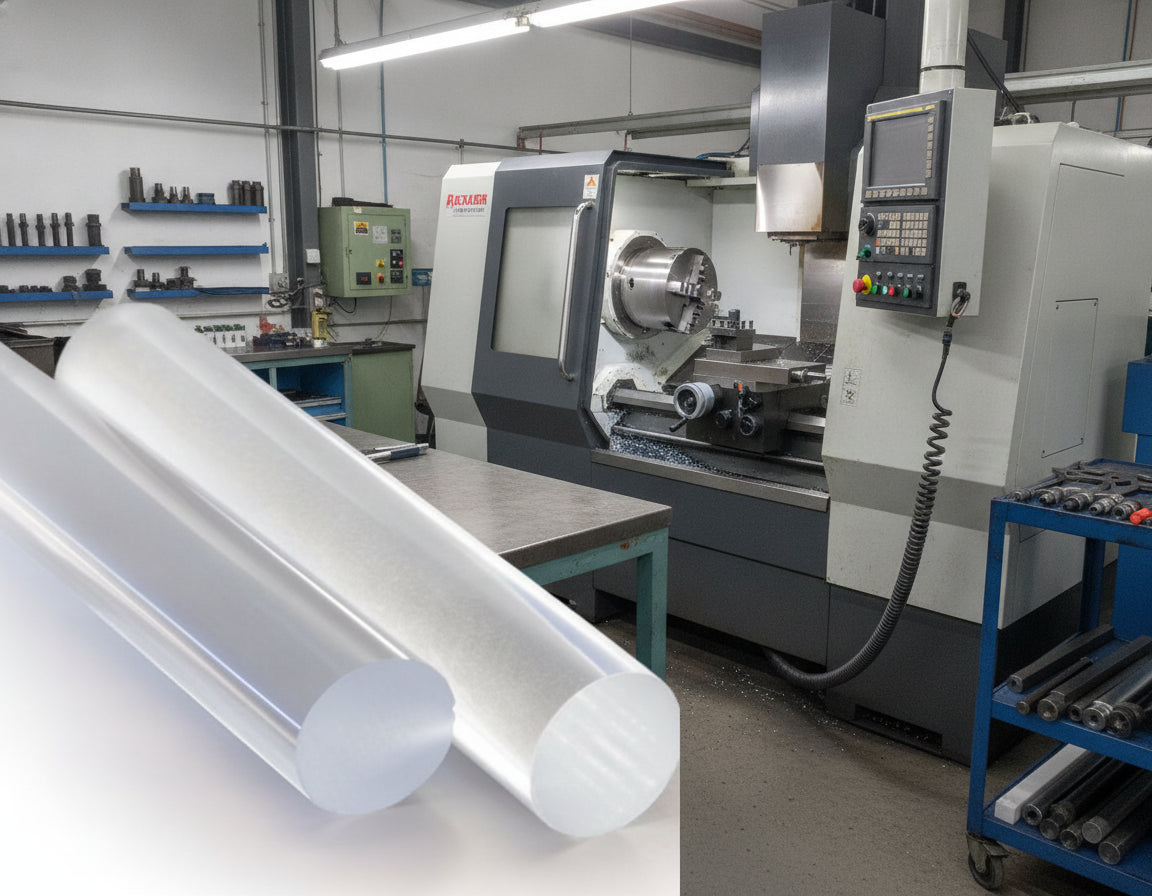

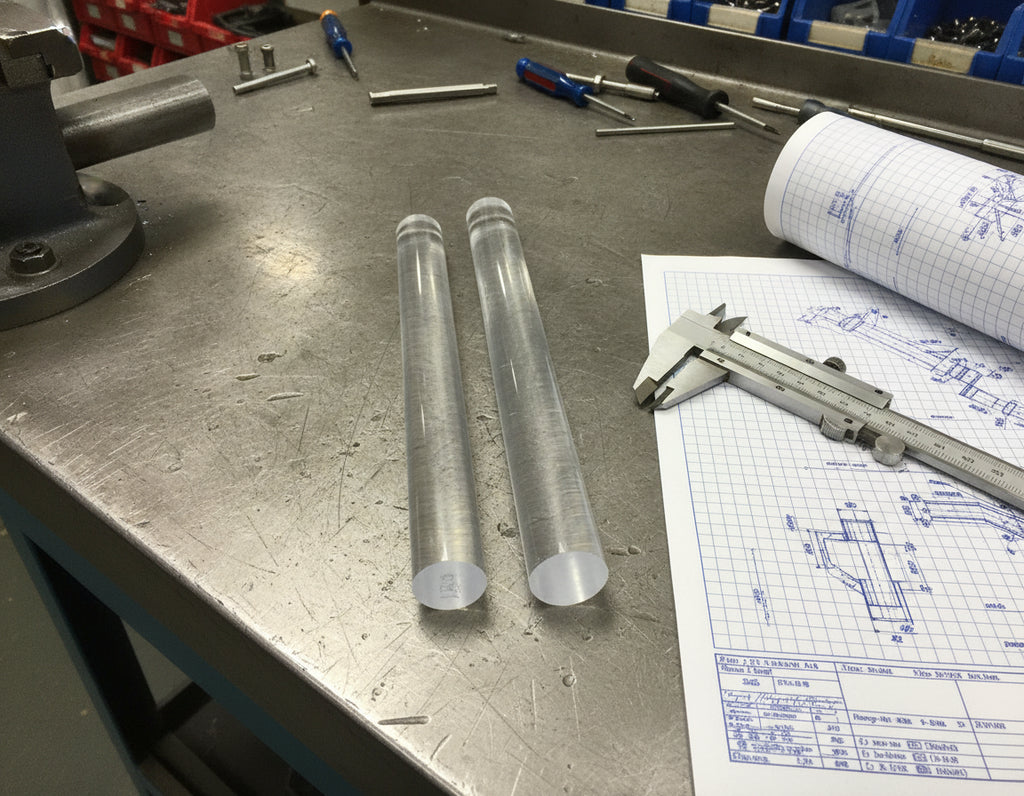

Crystal-clear extruded acrylic (PMMA) rod in 16 diameters from 2mm to 40mm, supplied in 2000mm (2 metre) lengths. Glass-like clarity at half the weight of glass and many times stronger – the go-to clear rod for displays, light guides, signage, model making, crafts and interior features.
- ✔ Crystal clear – excellent light transmission, perfect for edge-lit and LED light-guide projects
- ✔ Shatter resistant – much safer and tougher than glass rod
- ✔ Lightweight – about half the weight of glass
- ✔ Accurate, consistent diameter thanks to the extrusion process
- ✔ Good UV and weather resistance for indoor and sheltered outdoor use
- ✔ Easy to cut, polish, bond and heat-bend
Sizes and Pack Quantities
Every rod is 2000mm long. Smaller diameters are sold in multi-packs. All prices include VAT.
| Diameter | Pack | Total length |
|---|---|---|
| 2mm | 10 rods | 20 m |
| 3mm | 20 rods | 40 m |
| 4mm, 5mm, 6mm | 10 rods | 20 m |
| 8mm, 10mm | 5 rods | 10 m |
| 12mm | 3 rods | 6 m |
| 15mm, 16mm | 2 rods | 4 m |
| 18mm, 20mm, 25mm, 30mm, 35mm, 40mm | 1 rod | 2 m |
Need shorter pieces or a larger quantity? Contact us for a quote.
Applications
- Point-of-sale displays, shelf supports and product stands
- LED light guides, edge-lit signs and decorative lighting
- Model making, architectural models and prototypes
- Crafts, jewellery, curtain poles and home décor
- Clear dowels, spacers and pins for exhibitions and shopfitting
Working With Extruded Acrylic Rod
- Cutting: use a fine-toothed saw, support the rod well and cut slowly to avoid chipping.
- Finishing: wet-sand cut ends with fine abrasive paper, then polish or flame-polish for a clear edge.
- Bonding: use a solvent cement or acrylic adhesive for clear, strong joints.
- Bending: heat gently and evenly with a heat gun or strip heater.
- Machining: extruded acrylic is not recommended for turning or heavy machining – it can stress-crack. For machined parts, choose cast acrylic rod.
Specification
| Material | Extruded acrylic (PMMA, polymethyl methacrylate) |
|---|---|
| Colour | Clear (transparent) |
| Diameters | 2, 3, 4, 5, 6, 8, 10, 12, 15, 16, 18, 20, 25, 30, 35, 40mm |
| Length | 2000mm per rod |
| Density (typical) | approx. 1.19 g/cm³ |
| Max. service temperature (typical) | approx. 70°C |
FAQ
Is this the same as Perspex®?
Perspex® is a brand name for acrylic (PMMA). This rod is the same type of material – clear acrylic – from a quality UK stockist. Perspex® is a registered trademark of its respective owner.
Can I machine it?
Light drilling and cutting are fine, but extruded acrylic is not recommended for turning on a lathe or heavy machining. Contact us for cast acrylic rod if you need to machine parts.
Is it suitable for outdoor use?
Yes, acrylic has good UV and weather resistance, especially in sheltered locations.
How is it delivered?
Rods are delivered in full 2 metre lengths, packed to protect them from scratches.
All sizes & prices
16 sizes · prices include VAT · tap a price to select that size
| Size | Price | Ex VAT |
|---|---|---|
| 2mm - pack of 10 lengths / Clear / 2000mm | £89.95 | £74.96 |
| 3mm - pack of 20 lengths / Clear / 2000mm | £56.95 | £47.46 |
| 4mm - pack of 10 lengths / Clear / 2000mm | £43.95 | £36.63 |
| 5mm - pack of 10 lengths / Clear / 2000mm | £50.95 | £42.46 |
| 6mm - pack of 10 lengths / Clear / 2000mm | £72.95 | £60.79 |
| 8mm - pack of 5 lengths / Clear / 2000mm | £56.95 | £47.46 |
| 10mm - pack of 5 lengths / Clear / 2000mm | £66.95 | £55.79 |
| 12mm - pack of 3 lengths / Clear / 2000mm | £57.95 | £48.29 |
| 15mm - pack of 2 lengths / Clear / 2000mm | £59.95 | £49.96 |
| 16mm - pack of 2 lengths / Clear / 2000mm | £71.95 | £59.96 |
| 18mm - pack of 1 length / Clear / 2000mm | £49.95 | £41.63 |
| 20mm - pack of 1 length / Clear / 2000mm | £53.95 | £44.96 |
| 25mm - pack of 1 length / Clear / 2000mm | £81.95 | £68.29 |
| 30mm - pack of 1 length / Clear / 2000mm | £118.95 | £99.13 |
| 35mm - pack of 1 length / Clear / 2000mm | £162.95 | £135.79 |
| 40mm - pack of 1 length / Clear / 2000mm | £212.95 | £177.46 |
Need a size that isn't listed? We cut to order. Request a quote or call 01744 520110.
