Description
Flexible Chevron Wall Guard – PU Rubber
This flexible polyurethane chevron wall guard protects walls, loading areas, and car park surfaces from vehicle, forklift, and heavy goods trolley impacts. The raised herringbone chevron pattern provides excellent grip and visual impact, making it ideal for both wall-mounted and floor-level applications.
Available in bright yellow for maximum high-visibility safety marking, or black for a more discreet industrial finish. Both colours feature the same durable PU construction rated for domestic, commercial, and industrial use.
Product Specifications
| Specification | Detail |
|---|---|
| Material | Polyurethane (PU) |
| Hardness | 75 Shore A |
| Length | 500mm |
| Width | 100mm |
| Height / Thickness | 15mm |
| Colours available | Yellow or Black |
| Bolt hole diameter | 6.5mm |
| Fixings required | 4 x M6 x 87mm bolts (not included) |
| Max operating temperature | +70°C |
| Min operating temperature | −15°C |
| Application | Walls, floors, ramps – garages, car parks, workshops, warehouses |
Key Benefits
- Flexible PU construction – conforms slightly to uneven surfaces and absorbs repeated impacts
- Herringbone chevron pattern – provides grip and clear visual direction guidance
- Two colour options – high-vis yellow or discreet black to suit your environment
- 75 Shore A hardness – firm, durable, built for commercial and industrial use
- Wide temperature range – rated −15°C to +70°C
- Pre-drilled bolt holes – 4 x 6.5mm holes for quick, secure installation
- Versatile mounting – suitable for walls, floors, and ramp edges
- Multiple units – install end-to-end for longer runs of protection
Typical Applications

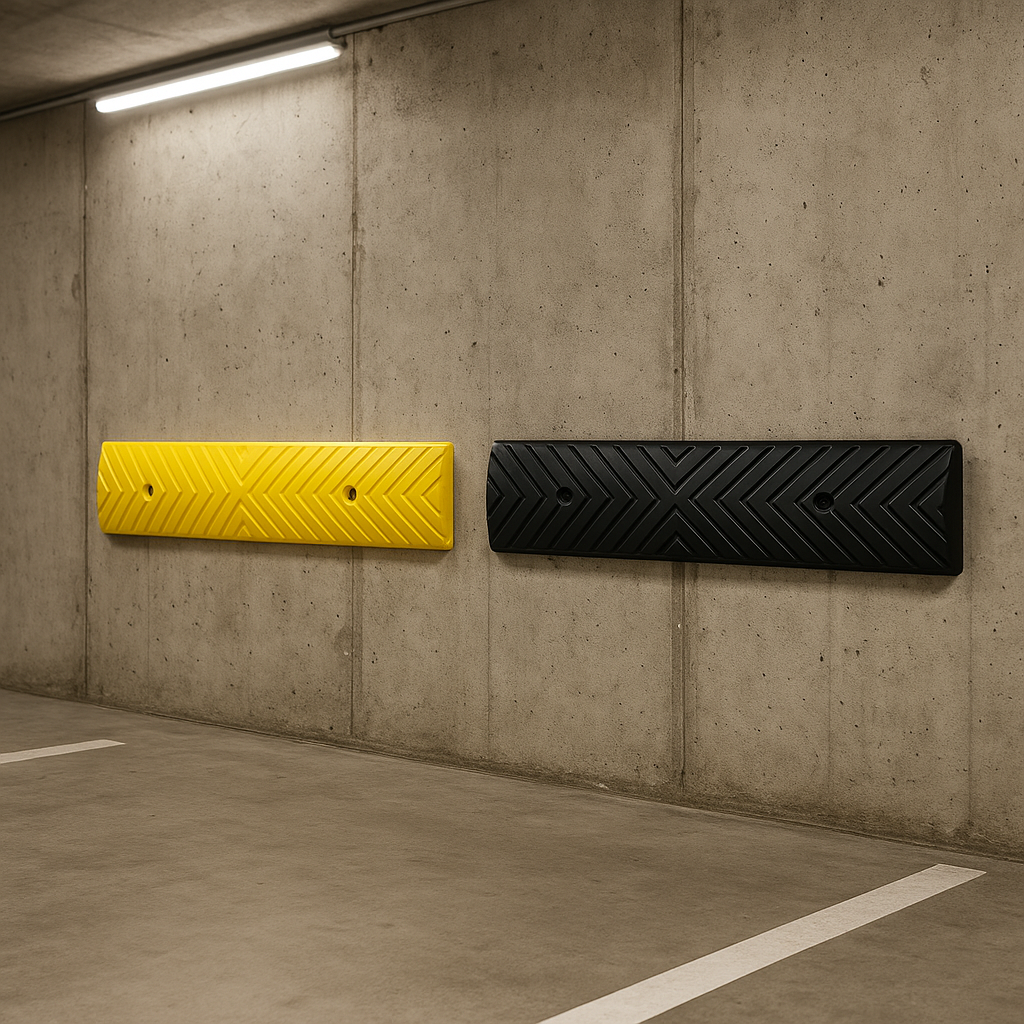

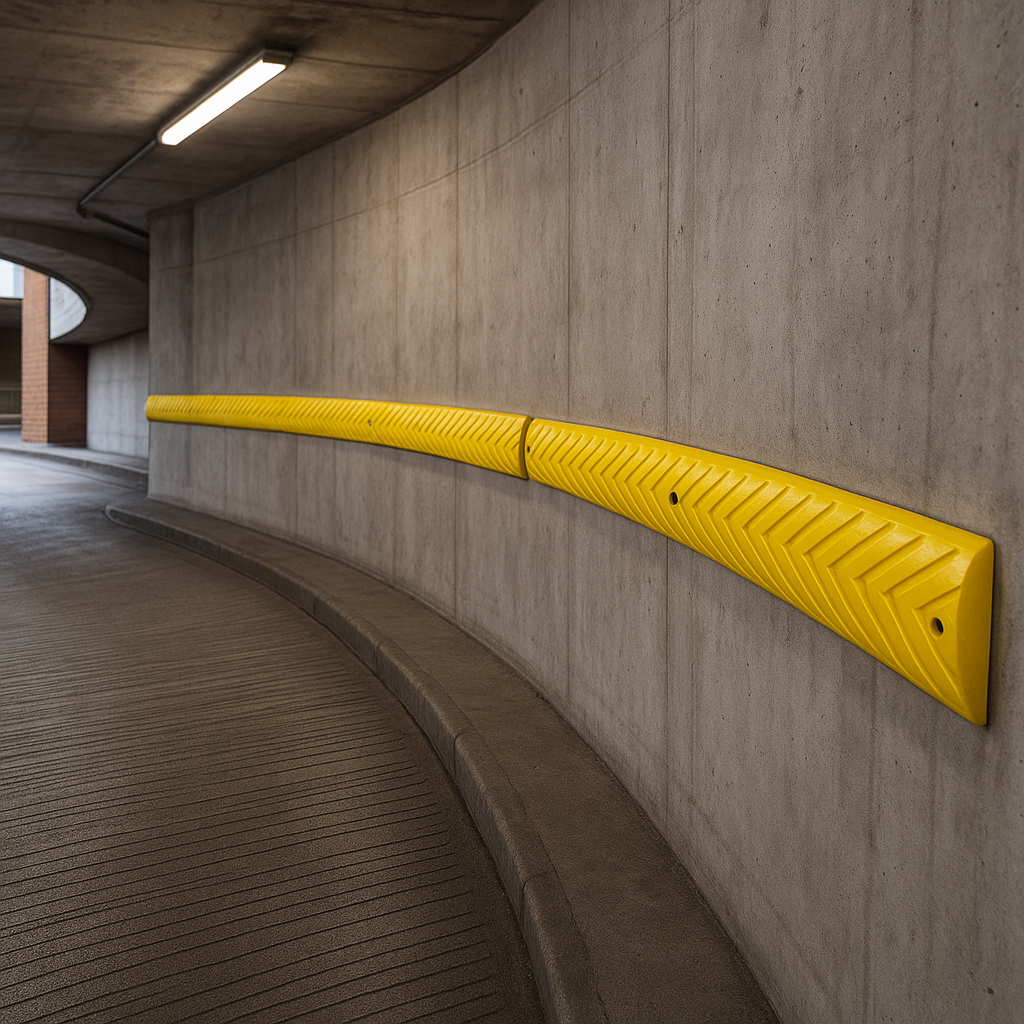

- Car park walls and ramp edges
- Garage workshop walls and floors
- Warehouse aisles and loading zones
- Retail and commercial stockrooms
- Loading bay approach ramps
- Any surface at risk from vehicle or trolley impact
Installation
Position the chevron guard on the surface to be protected. Mark 4 fixing points through the pre-drilled 6.5mm bolt holes. Drill and plug as appropriate for your substrate. Secure with 4 x M6 x 87mm bolts (not supplied). For extended coverage, install multiple units end-to-end.
⚡ UK Stock – Fast Dispatch | ✅ Yellow or Black | 🏭 Flexible PU Rubber | 🚗 Wall, Floor & Ramp Protection
