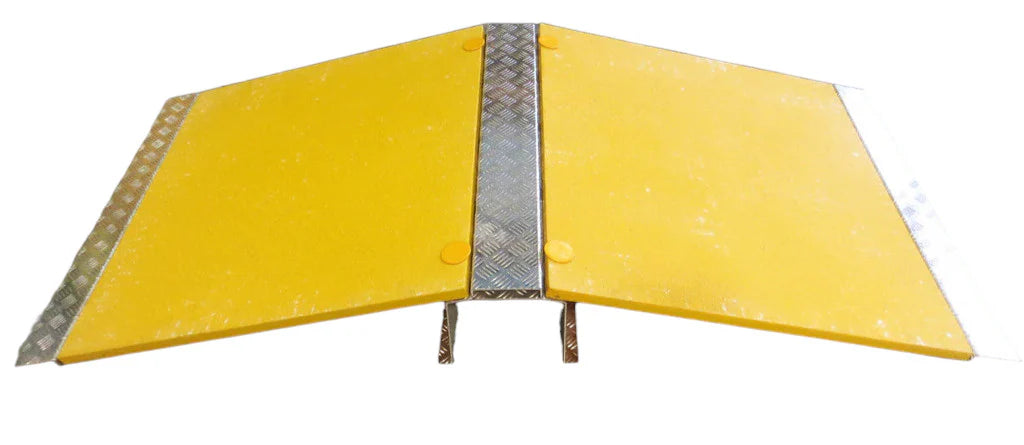

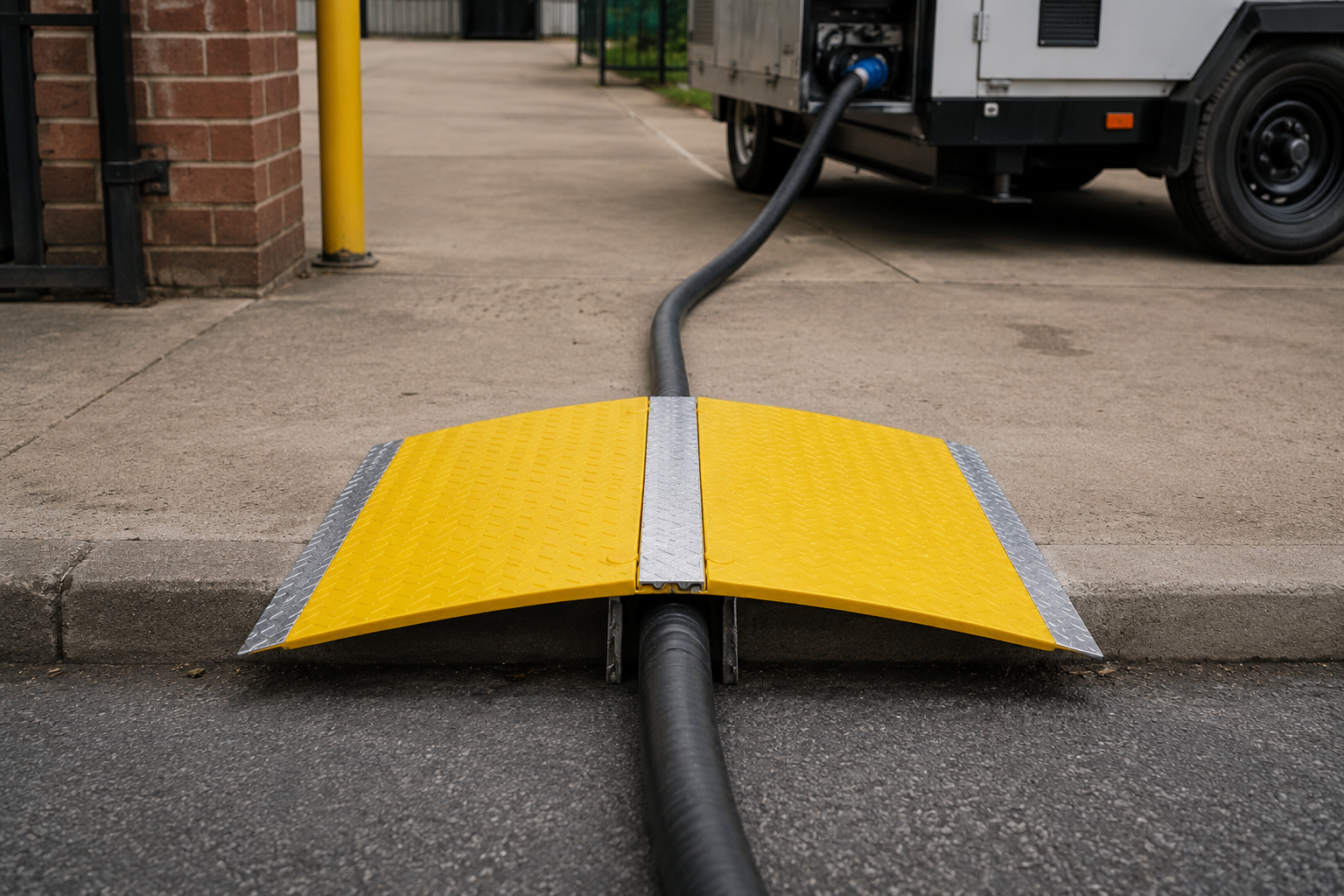

Pedestrian Hose & Cable Ramp — Professional Grade Site Safety
Stop cables and hoses becoming a trip hazard. This heavy-duty pedestrian cable ramp creates a safe, smooth crossing point over large-diameter hoses and cables in any industrial, construction, or public environment — protecting both the cables beneath and the people walking above.

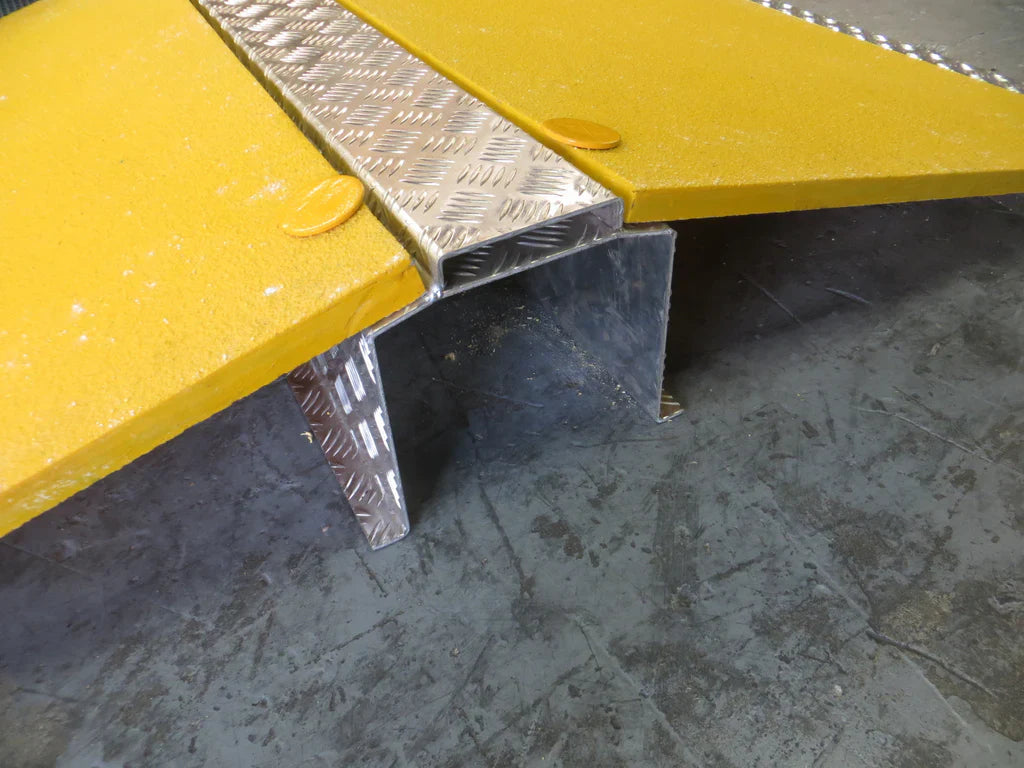

Engineered with a rigid aluminium tunnel that shields cables from crush damage underfoot, combined with bevelled anti-slip ramp sections for smooth pedestrian approach. The modular Z-clip assembly takes minutes and requires zero tools.
Handles cables and hoses up to 200mm in diameter. Rated for pedestrian loads up to 200kg.
📐 Technical Specifications
| Specification | Detail |
|---|---|
| Overall Length | 2080mm |
| Overall Width | 995mm |
| Overall Height | 235mm |
| Tunnel Internal Width | 225mm |
| Tunnel Internal Height | 200mm |
| Max Cable / Hose Diameter | 200mm Ø |
| Max Pedestrian Load | 200 kg |
| Total Weight | 35 kg |
| Tunnel Material | Heavy-duty aluminium |
| Ramp Surface | Anti-slip drop-over grating |
| Assembly System | 3-piece modular, Z-clip locking |
| Tools Required | None |
| Approach Edge | Bevelled — eliminates trip hazard |
| Lead Time | Made to order — 10–14 working days |
✅ Key Benefits
- Accommodates cables up to 200mm Ø — handles the largest industrial hoses, hydraulic lines, and power cable bundles in a single protected channel
- Rigid aluminium tunnel — zero crush risk to hoses beneath, even under sustained foot traffic
- 200kg pedestrian load rating — suitable for heavy-duty sites, public walkways, and high foot-traffic events
- Anti-slip grating surface — confident pedestrian grip in wet, muddy, and outdoor conditions
- Bevelled approach ramps — smooth, gradual incline on both sides removes the trip hazard entirely
- Tool-free Z-clip assembly — deploy and pack away in minutes; no tools, no specialist labour
- 3-piece modular design — tunnel base plus two grating panels, easy to transport and store
- Reusable and relocatable — ideal for both permanent installations and temporary site deployments
🏭 Where It's Used
- Construction sites — protect power, water, and pneumatic hose runs across pedestrian routes
- Outdoor events & festivals — safe cable crossings for power, AV, lighting, and water supplies
- Industrial & warehouse facilities — permanent hydraulic hose and cable management across walkways
- Film & TV production — quick-deploy cable crossing for set builds and location shoots
- Exhibition halls & conference venues — protect AV and power cabling across visitor walkways
- Road & utilities maintenance — crossing for water mains, gas lines, and electrical conduit
- Airports, rail depots & ports — heavy-duty hose routing across shared vehicle/pedestrian zones
🔧 Assembly — 3 Steps, No Tools
- Position the tunnel — place the aluminium tunnel base directly over the hose or cable run
- Drop on the grating panels — lower the left and right anti-slip panels onto the steel mounting pegs, one each side
- Lock with Z-clips — clip both panels securely in place — ready for use in under 5 minutes
To remove: reverse the above. No tools at any stage.
🚚 Made to Order — Dispatched within 10–14 Working Days
✅ Handles Hoses to 200mm Ø | 🦶 200kg Pedestrian Load Rated | 🔧 Tool-Free Z-Clip Assembly | 🏗️ Construction, Events & Industrial Use
