Description

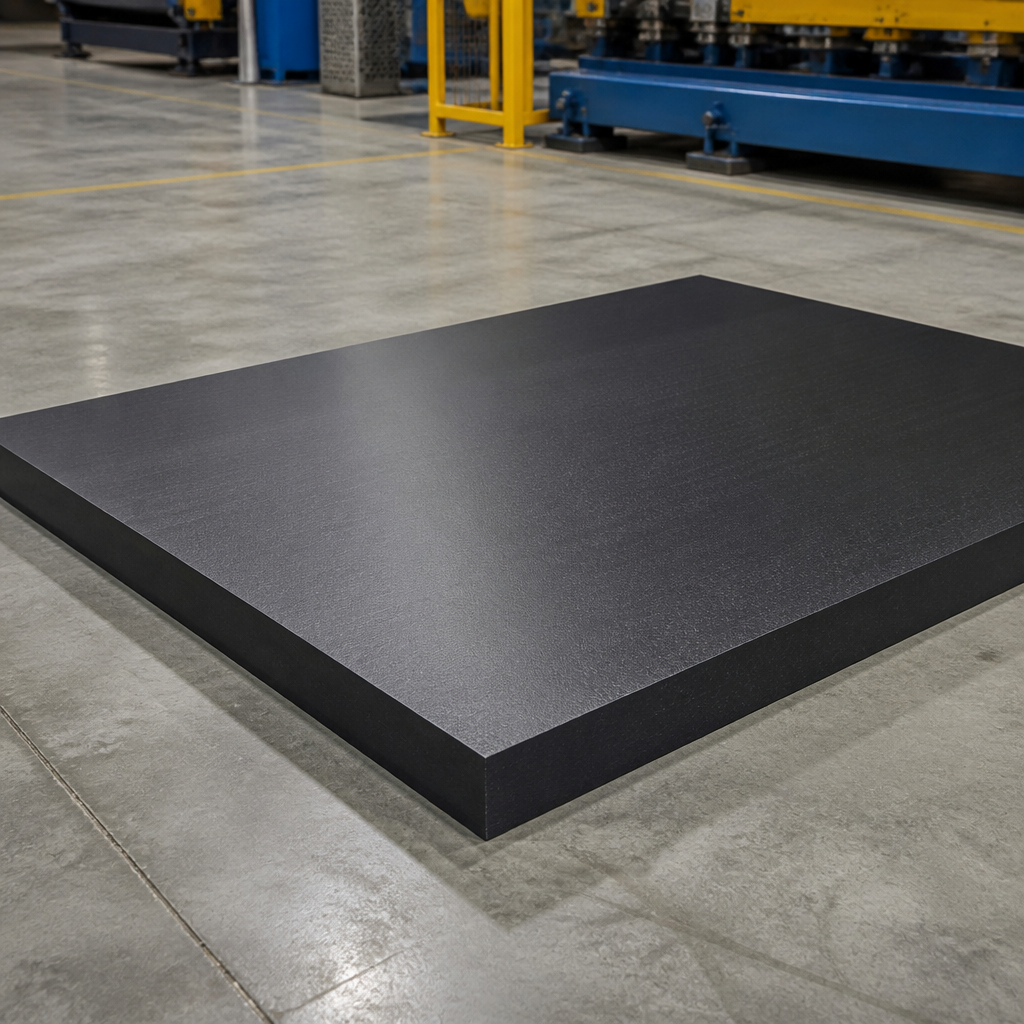

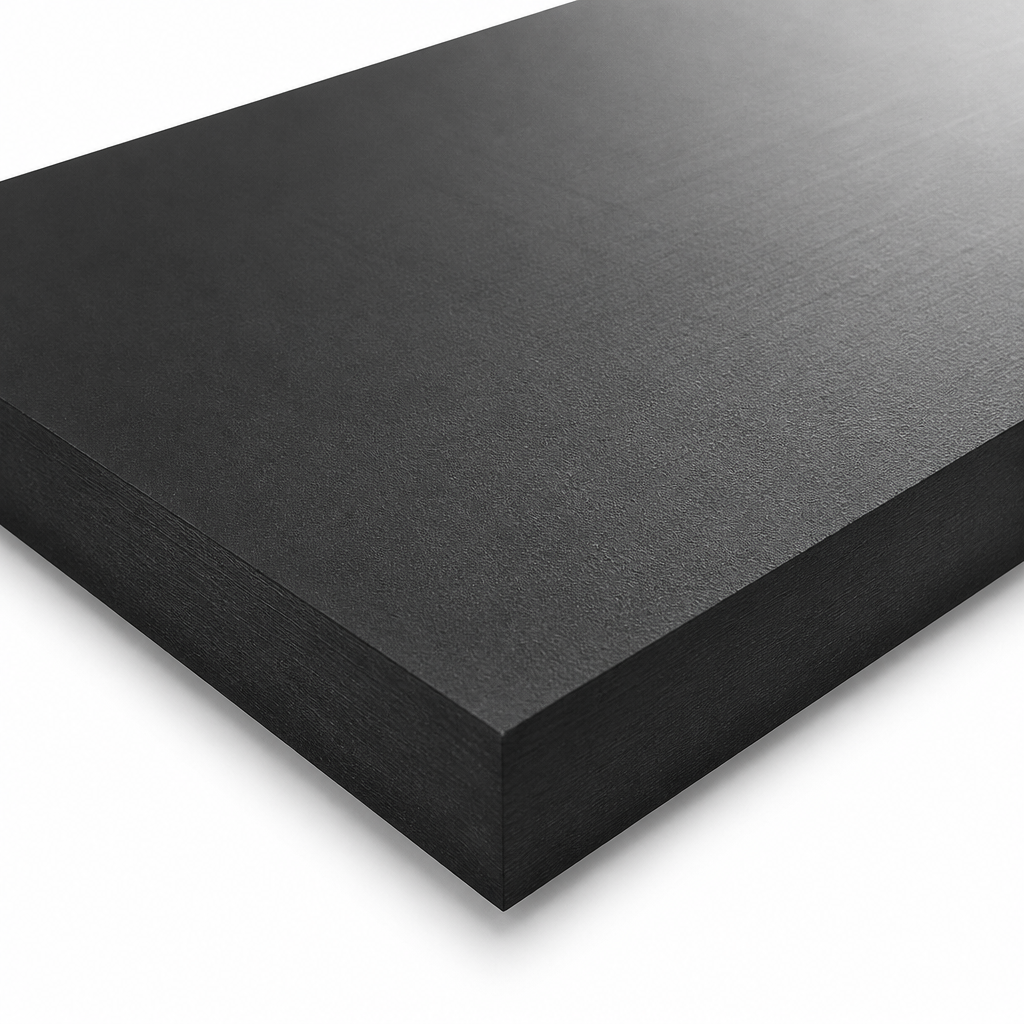

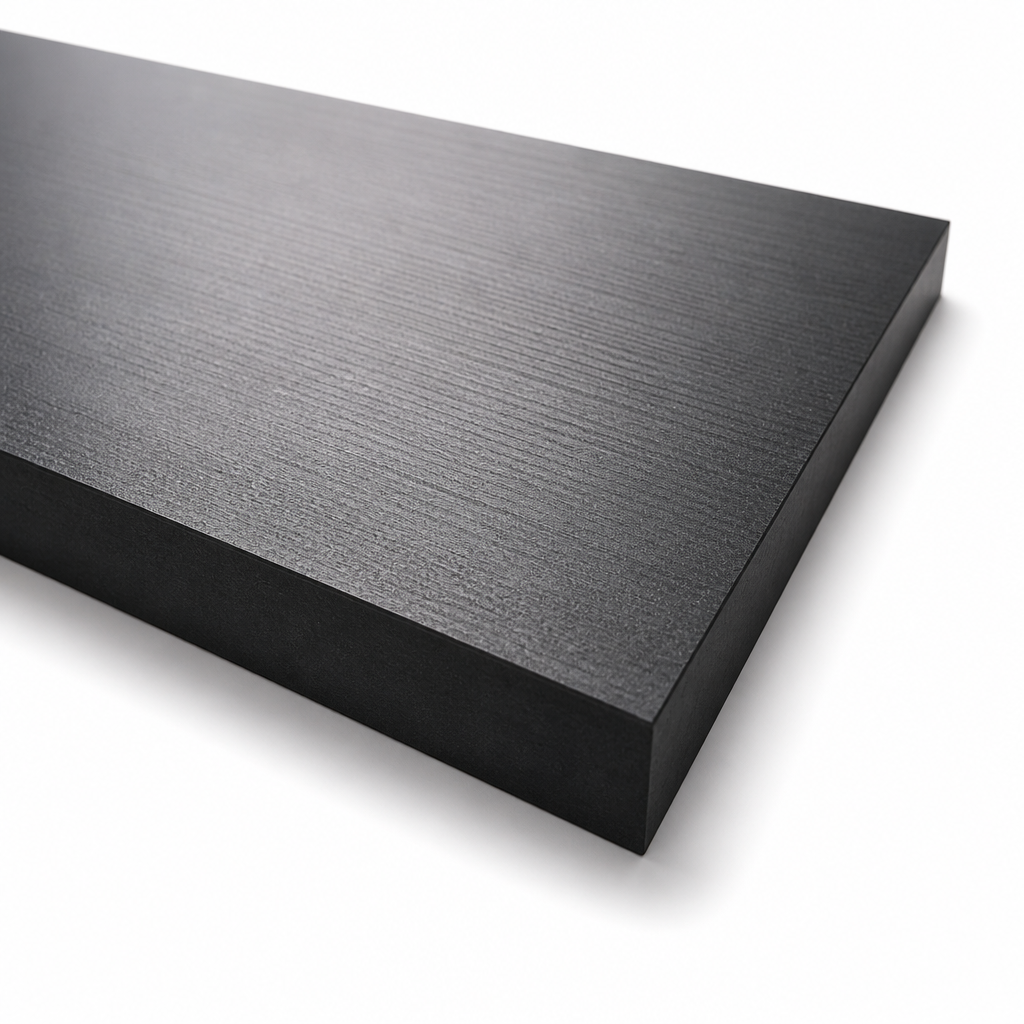

RG1000 is a recycled ultra high molecular weight polyethylene sheet, ideal for various industrial uses. It offers excellent abrasion resistance and low moisture absorption.
Material Composition
RG1000 Sheet is made from ultra high molecular weight polyethylene (UHMWPE) with recycled material, providing an economical alternative to virgin grades while maintaining similar performance characteristics.
Mechanical and Thermal Properties
This sheet has a tensile strength of 22 MPa and a Shore D hardness. It can withstand service temperatures up to 80°C for long-term use, with a short-term maximum of 90°C and a melting point around 135°C. Its thermal conductivity is measured at 0.43 W/(K*m).
Advantages and Disadvantages
RG1000 is odorless, tasteless, and non-toxic, featuring low moisture absorption and a very low coefficient of friction. It is self-lubricating and highly resistant to abrasion, water, moisture, and most chemicals. However, it is not FDA approved and is unsuitable for high tensile applications or food contact.
Applications and Use Cases

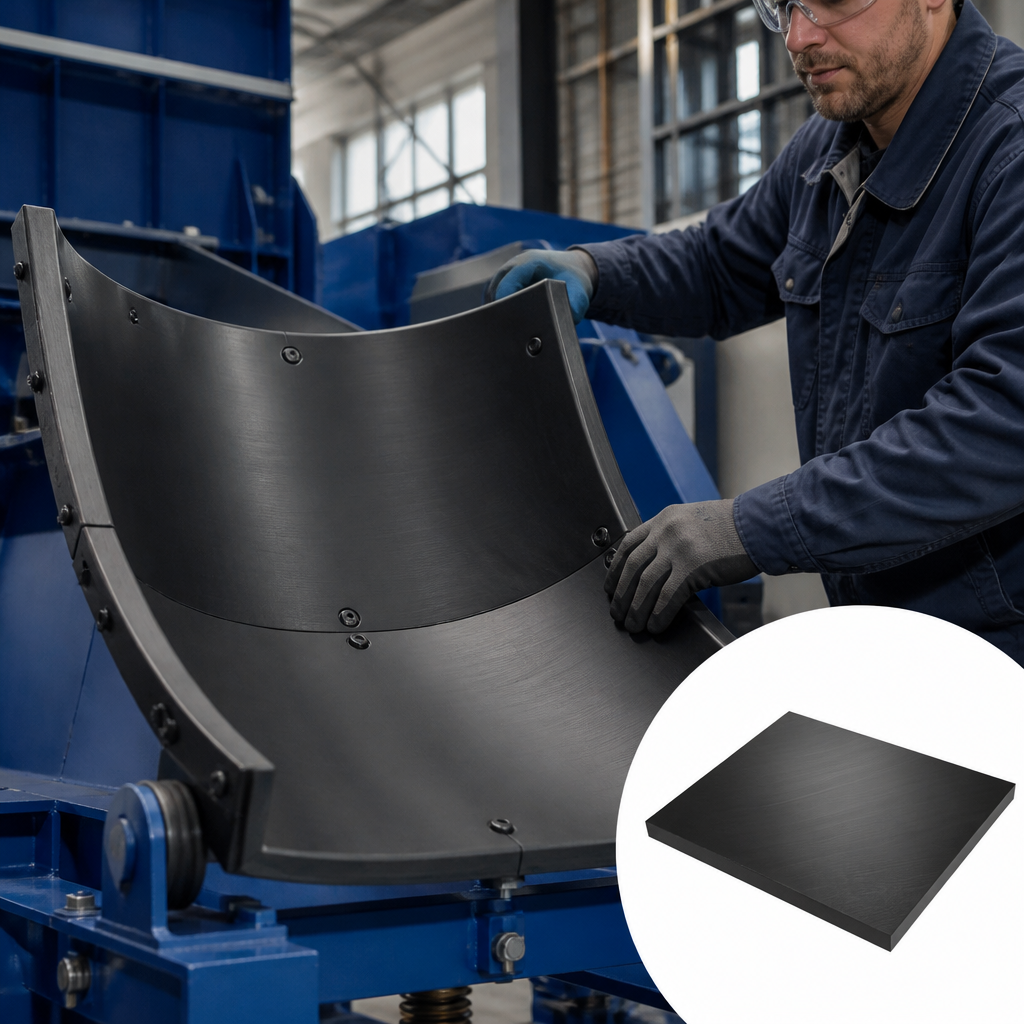

This sheet is commonly used for lining chutes, hoppers, slide-ways, and wear blocks in aggressive environments. Its low moisture absorption makes it suitable for marine applications. However, it is not recommended for food or medical applications.
Machining and Fabrication
RG1000 can be machined into various shapes and parts, from small gears to large sprockets. It is easier to machine than metals and offers cost-effective solutions for many engineering applications.
Specifications
- Tensile strength: 22 MPa
- Shore hardness: Shore D
- Ball indentation hardness: 40 MPa
- Service temperature – short term: 80°C
- Service temperature – long term: 80°C
- Thermal conductivity: 0.43 W/(K*m)
- Available sizes: 2000mm x 1000mm and 3000mm x 1250mm
- Thickness range: 5mm to 80mm
- Available colors: black and green
Benefits
- Long lifespan with low drag
- Cost-effective for budget projects
- Excellent wear and abrasion resistance
- Suitable for various industrial applications
Use Cases
- Lining chutes
- Hoppers
- Slide-ways
- Wear blocks
- Forest-product drag conveyor flights
- Conveyor-chain wear plates
- Belt-conveyor wipers and skirts
FAQ
Q: Is RG1000 suitable for food applications?
A: No, RG1000 is not approved for any use in food applications.
Q: Can RG1000 be glued?
A: Bonding RG1000 is difficult due to its low moisture absorption.
Q: Is RG1000 wear resistant?
A: Yes, RG1000 sheet is highly resistant to abrasion.
