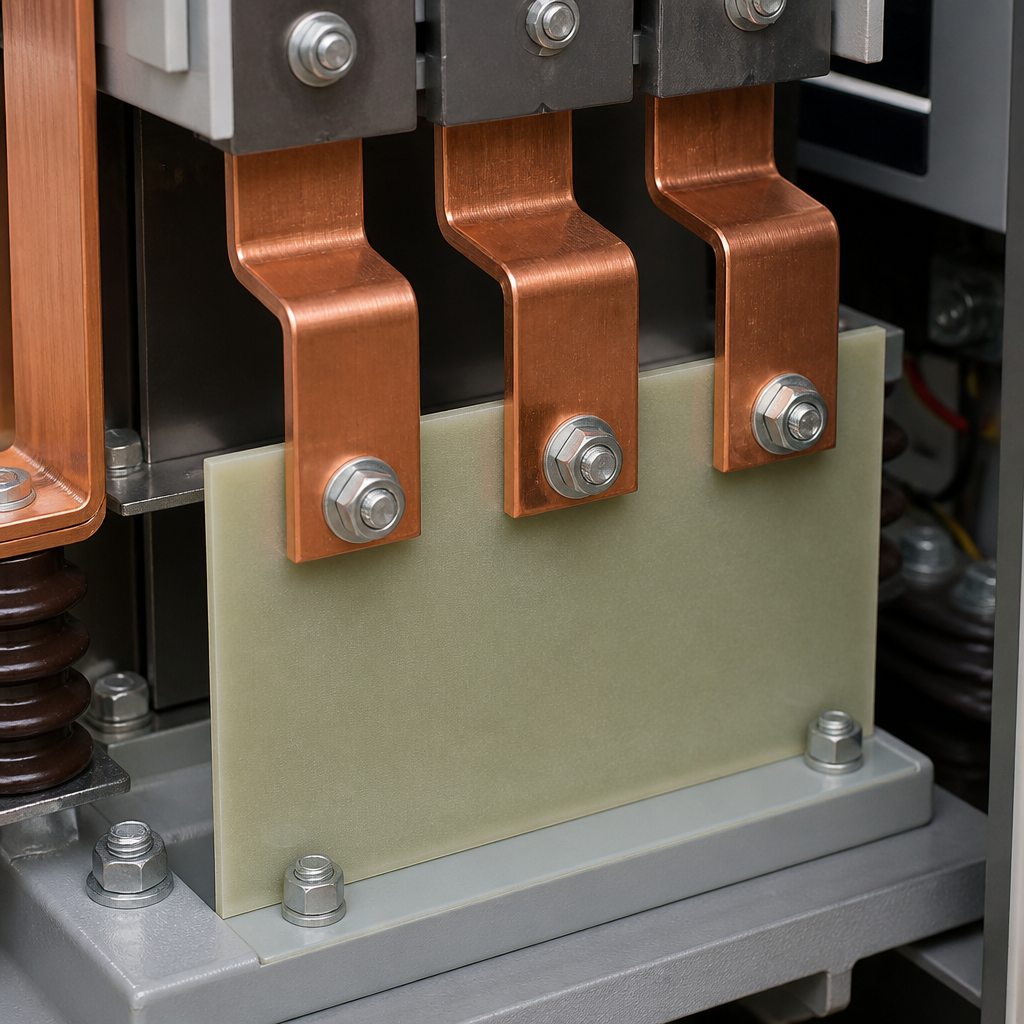

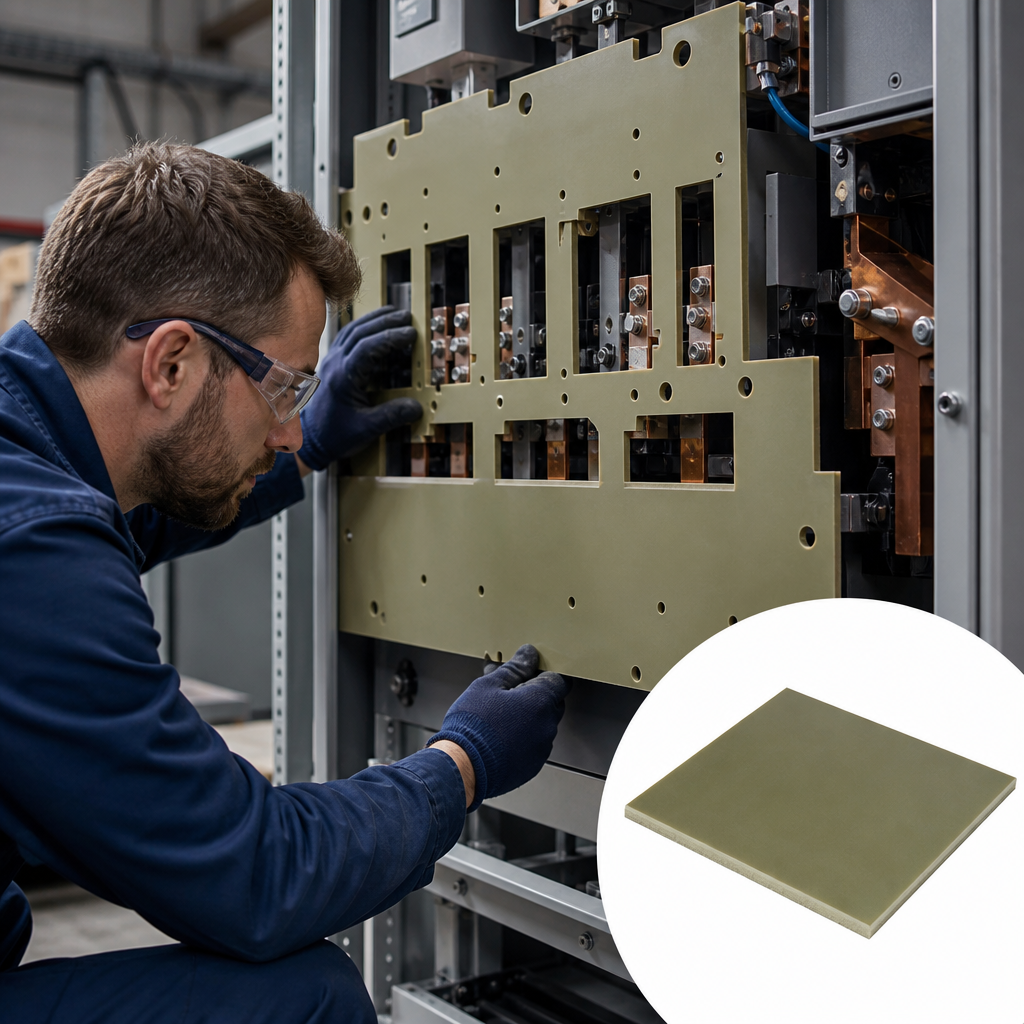

Tufnol Synthetic Resin Bonded Glass Fabric Sheet 1.6mm for Electrical Insulation 1.6mm to 16mm thick - Tufnol Sheet in use
Roll over image to zoom in Click on image to zoom
Tufnol Synthetic Resin Bonded Glass Fabric Sheet 1.6mm for Electrical Insulation 1.6mm to 16mm thick - UK Engineering PlasticsTufnol Synthetic Resin Bonded Glass Fabric Sheet 1.6mm for Electrical Insulation 1.6mm to 16mm thick - Tufnol Sheet in use

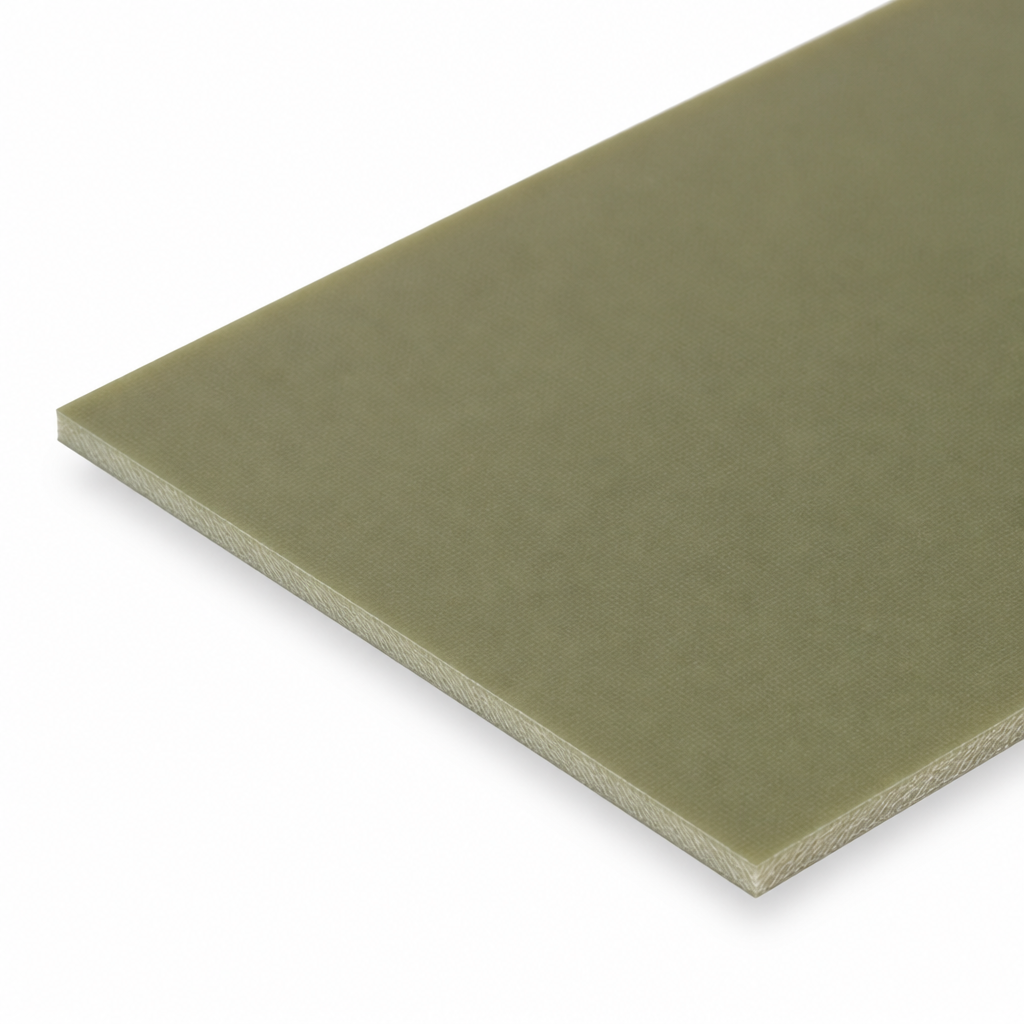

Tufnol Synthetic Resin Bonded Glass Fabric Sheet for Electrical Insulation 1.6mm to 16mm thick

£55.60inc VAT
£46.33 ex VAT£617.77 per m²

UK delivery calculated at checkout · Delivery details

Size: 300 x 300 x 1.6mm

1Thickness 9 options1.6mm

2Sheet size for 1.6mm300 × 300mm

Compare all 49 sizes in one price table

In stock — ready to ship

Order before 2pm Mon–Fri for same-day dispatch

Standard UK mainland delivery in 1–3 working days

American Express Apple Pay Diners ClubDiscoverGoogle Pay KlarnaMaestroSecure checkout
  • 14-day returns on unopened stock items
  • 3,000+ products in UK stock
  • Cut to size on request
  • Technical advice included
Provides reliable insulation in electrical applications
Resistant to high temperatures
49 sheet sizes available

Need a custom length, bulk quantity or trade pricing?

Volume discounts from 5 items · Account terms for established businesses · Mon–Fri 9am–5pm

Get a quote 01744 520110 Email us

Cut to size calculator

Cut to your size Instant price · any size up to the limits shown · several sizes in one order
Thickness
Your cutting list

Prices include VAT and cutting. Several pieces of the same size are cut from one piece of stock where they fit, allowing 4mm for the saw blade between pieces; the first piece is cut free and each additional piece is £1.60. Cut pieces are made to order and have a sawn finish. Delivery is calculated at checkout. For shapes, holes or large quantities, request a quote or call 01744 520110.

Description

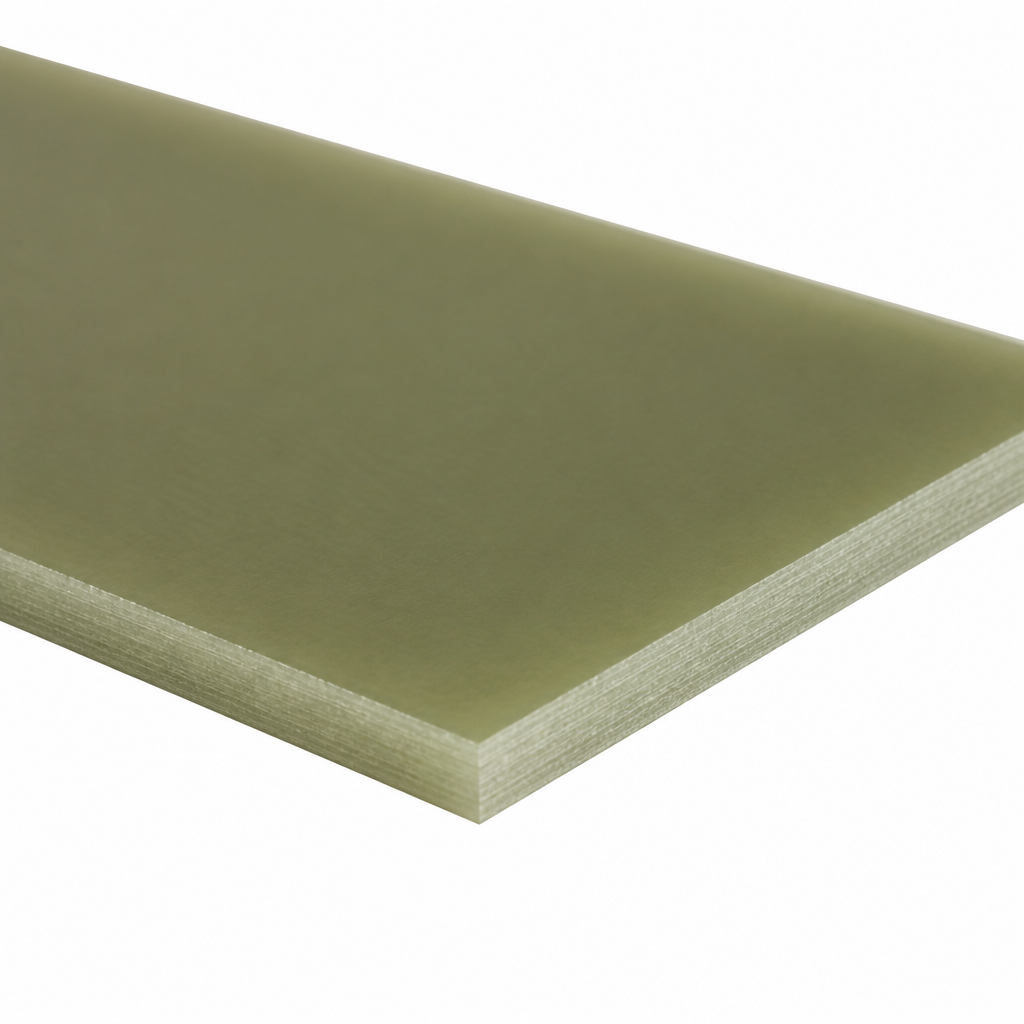

Tufnol 10G/40 Sheet is a high-performance synthetic resin bonded glass fabric. Ideal for insulation in electrical applications and structural components.

Material Composition

The Tufnol 10G/40 Sheet is made from synthetic resin bonded glass fabric, providing exceptional strength and rigidity. This material is designed for high-performance applications.

Mechanical Properties

This sheet has a density of 1.90 g/cm³, a tensile strength of 355 MPa, and a cross breaking strength of 490 MPa. It also features a Young's modulus of 17.7 GPa, ensuring excellent dimensional stability.

Thermal and Performance Characteristics

The maximum continuous working temperature for this sheet is 130°C, while it can withstand intermittent temperatures up to 150°C. It is classified as thermal class B, making it suitable for various high-performance applications.

Applications and Limitations

Tufnol 10G/40 Sheet is primarily used for insulation in high-performance electrical applications, structural insulation, and jigs. However, it is not suitable for bearing applications due to its abrasive nature.

Specifications

  • Density: 1.90 g/cm³
  • Tensile strength: 355 MPa
  • Cross breaking strength: 490 MPa
  • Young's modulus: 17.7 GPa
  • Maximum working temperature – continuous: 130°C
  • Maximum working temperature – intermittent: 150°C
  • Thermal classification: B

Benefits

  • Provides reliable insulation in electrical applications
  • Resistant to high temperatures
  • Durable and long-lasting

Use Cases

  • electrical insulation
  • but at low voltages only

FAQ

Q: Is Tufnol 10G/40 suitable for food applications?
A: No, Tufnol 10G/40 is not suitable for contact with food.

Q: Can Tufnol 10G/40 be glued or bonded?
A: Yes, Tufnol 10G/40 can be easily bonded with many commercially available adhesives.
