Description

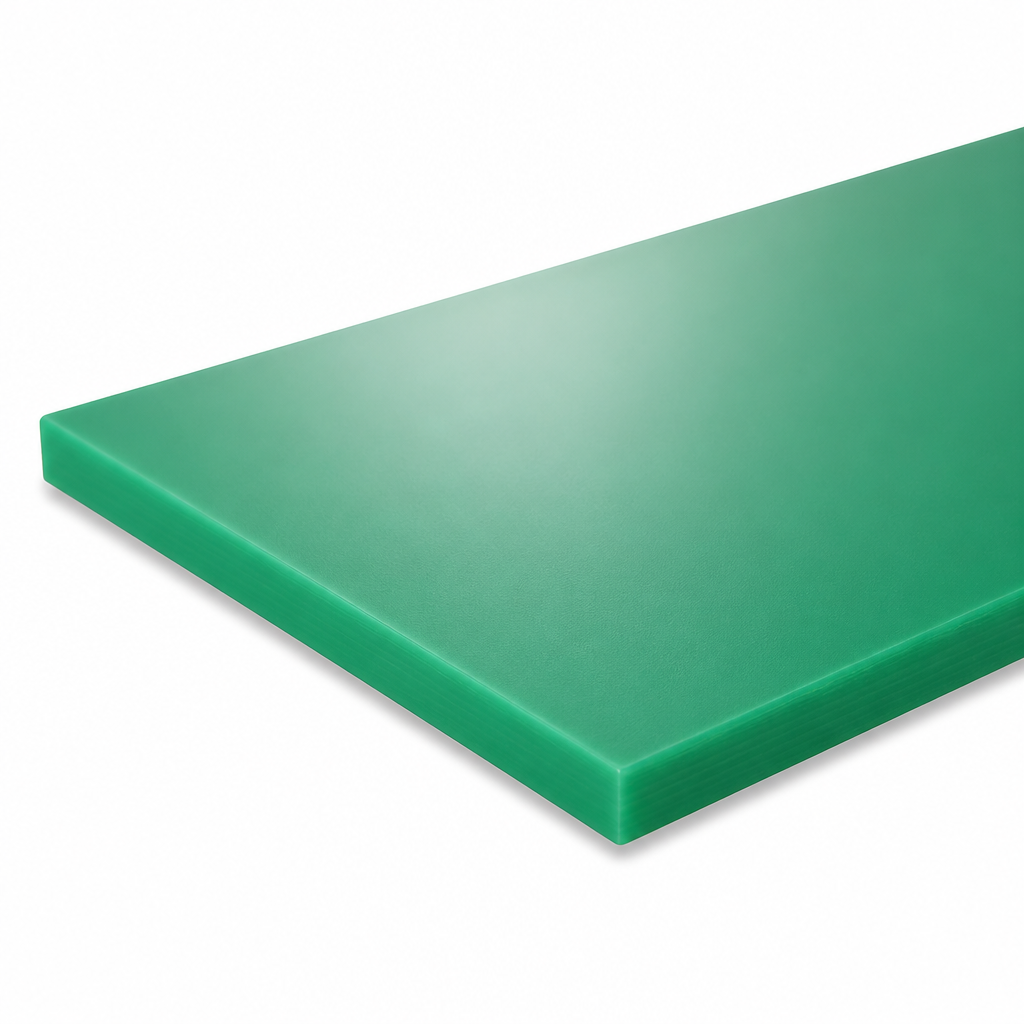

RG1000 is a recycled Ultra High Molecular Weight Polyethylene sheet. Ideal for lining and wear applications in non-FDA environments.
Material Composition
RG1000 is made from Ultra High Molecular Weight Polyethylene (UHMWPE) with recycled material. This engineering plastic is designed for durability and performance in various applications.
Mechanical and Thermal Properties
The sheet has a tensile strength of 22 MPa and a Shore D hardness. It can withstand service temperatures of up to 80°C, with a short-term maximum of 120°C and a melting point around 135°C. Its thermal conductivity is 0.43 W/(K*m).
Advantages and Disadvantages
RG1000 is odorless, tasteless, and non-toxic, offering excellent abrasion resistance and low moisture absorption. However, it is not suitable for high tensile applications and lacks FDA approval for food contact.
Applications and Uses

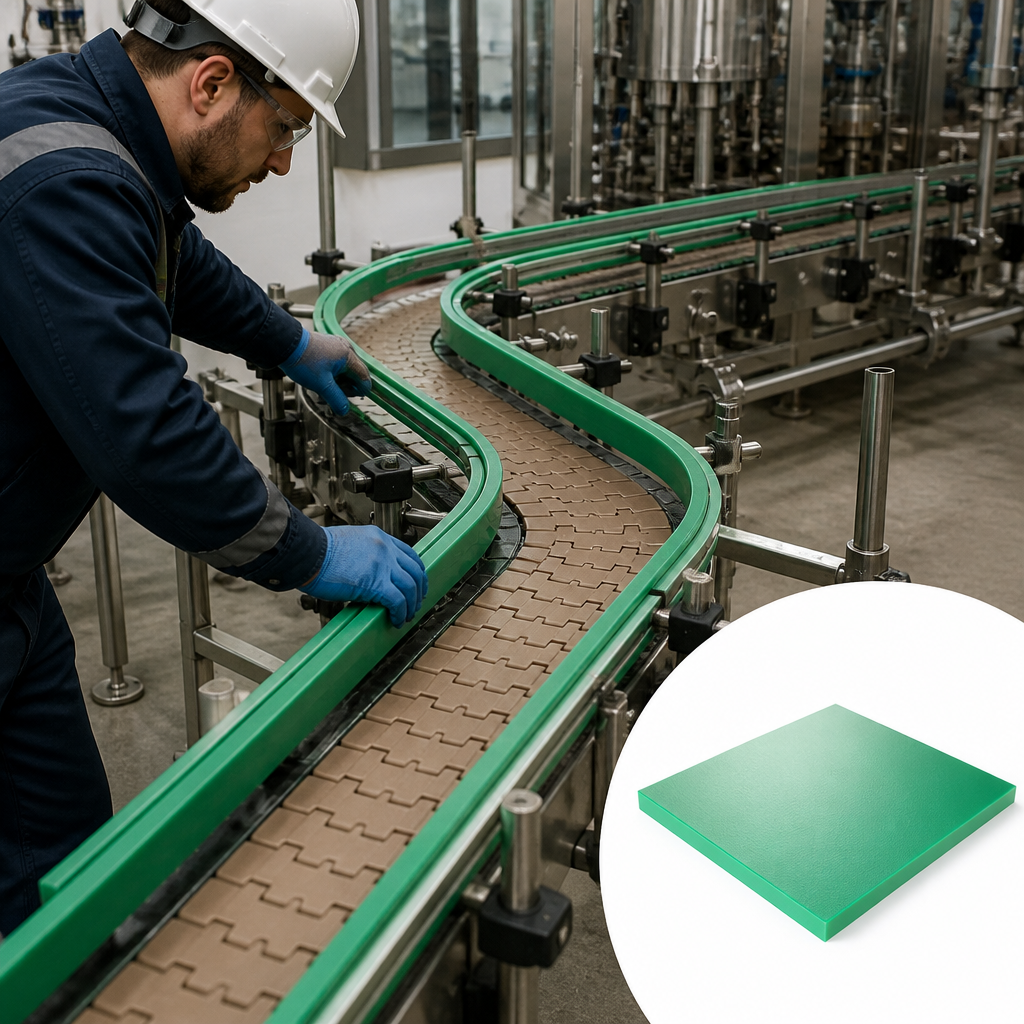

Commonly used for lining chutes, hoppers, slide-ways, and wear blocks in aggressive environments. It is also effective in marine applications due to its low moisture absorption.
Machining and Bonding Characteristics
RG1000 can be machined into various shapes but requires high-speed steel tooling. Bonding is challenging due to its low water absorption properties.
Specifications
- Tensile strength: 22 MPa
- Shore hardness: Shore D
- Ball indentation hardness: 40 MPa
- Service temperature – short term: 80°C
- Service temperature – long term: 80°C
- Thermal conductivity: 0.43 W/(K*m)
- Available sizes: 2000mm x 1000mm and 3000mm x 1250mm
- Thickness range: 5mm to 80mm
- Available colors: black and green
Benefits
- Long lifespan with low drag
- Excellent sliding properties
- Versatile for various machining applications
- Cost-effective for budget projects
Use Cases
- Lining chutes
- Hoppers
- Slide-ways
- Wear blocks
- Marine applications
FAQ
Q: Is RG1000 suitable for food applications?
A: No, RG1000 is not approved for any food contact applications.
Q: Can RG1000 be glued?
A: Bonding RG1000 is difficult due to its low water absorption properties.
Q: Is RG1000 wear resistant?
A: Yes, RG1000 is highly resistant to abrasion.
