Reflective Chevron Wall Guard – Car Park & Traffic Direction
This large rubber wall guard features a high-visibility reflective chevron pattern to simultaneously protect walls from vehicle impact and direct traffic safely through car parks, garages, and loading areas. The bright yellow retroreflective chevron arrows shine clearly in headlights, dramatically reducing the risk of accidental collisions, especially in low-light or underground environments.
Made from durable NR/SBR rubber at 75 Shore A hardness, this guard is built to withstand repeated impacts while maintaining its protective and directional function.
Product Specifications
| Specification | Detail |
|---|---|
| Material | NR/SBR Rubber |
| Hardness | 75 Shore A |
| Length | 800mm |
| Width | 220mm |
| Thickness | 10mm |
| Colour | Black with reflective yellow chevrons |
| Pattern | Directional chevron arrows (retroreflective) |
| Max operating temperature | +70°C |
| Min operating temperature | −15°C |
| Fixing | Central mounting hole for wall fixing |
Key Benefits
- Dual purpose – protects walls from vehicle impact AND directs traffic simultaneously
- Retroreflective chevrons – shine brightly in headlights for maximum night-time visibility
- NR/SBR rubber construction – absorbs impacts and protects painted walls and brickwork
- 75 Shore A hardness – firm enough to withstand repeated vehicle contact
- Wide temperature range – rated −15°C to +70°C, suitable for all UK conditions
- Simple installation – single central fixing hole for quick wall mounting

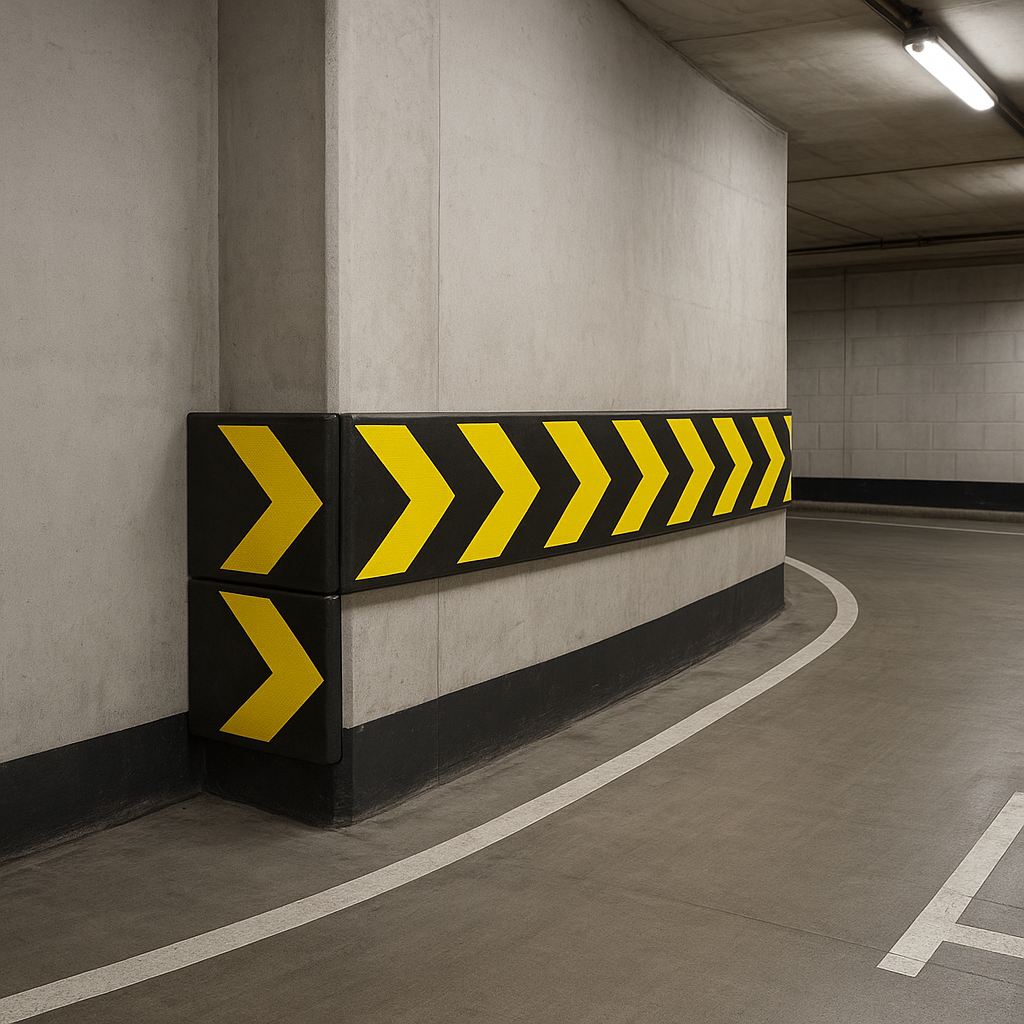

- Stackable in runs – mount multiple units end-to-end for longer coverage
Typical Applications
- Public and private car parks

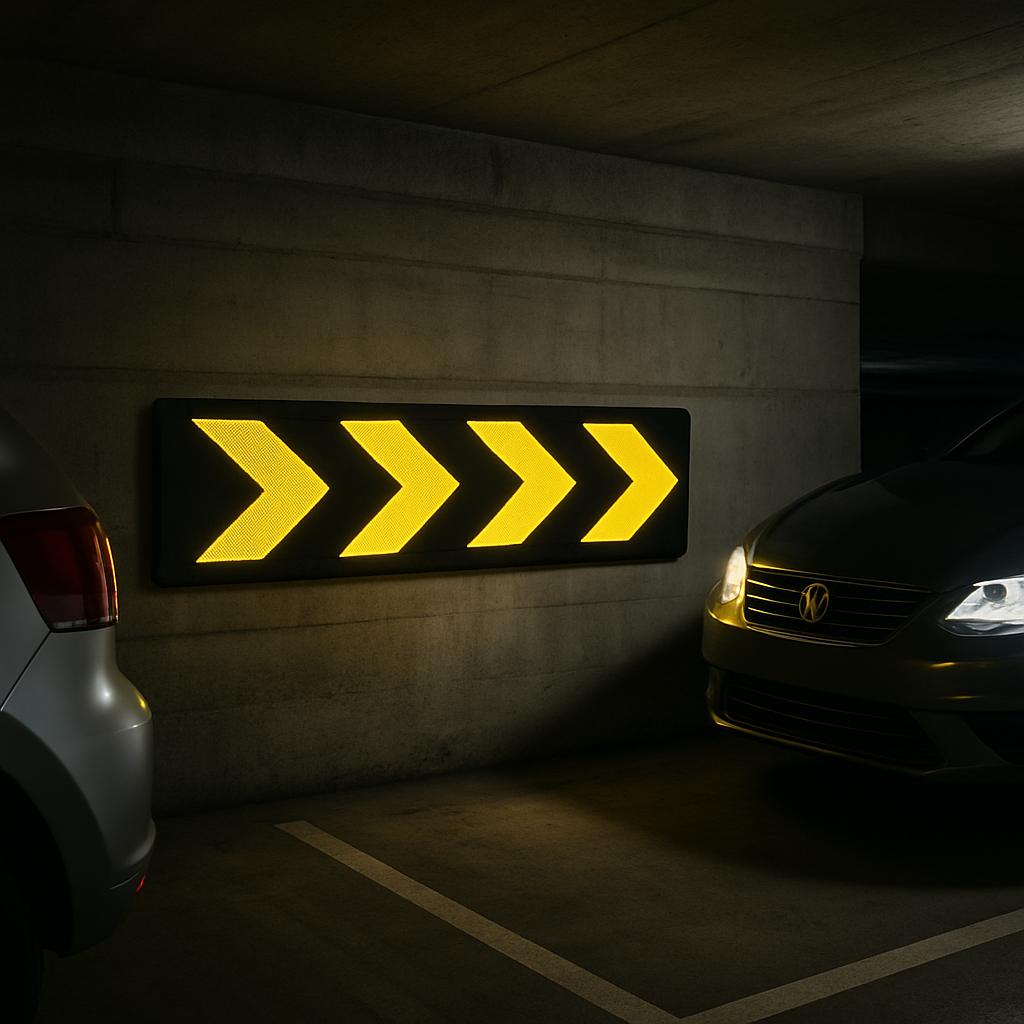

- Underground and multi-storey parking structures
- Private garages and driveways

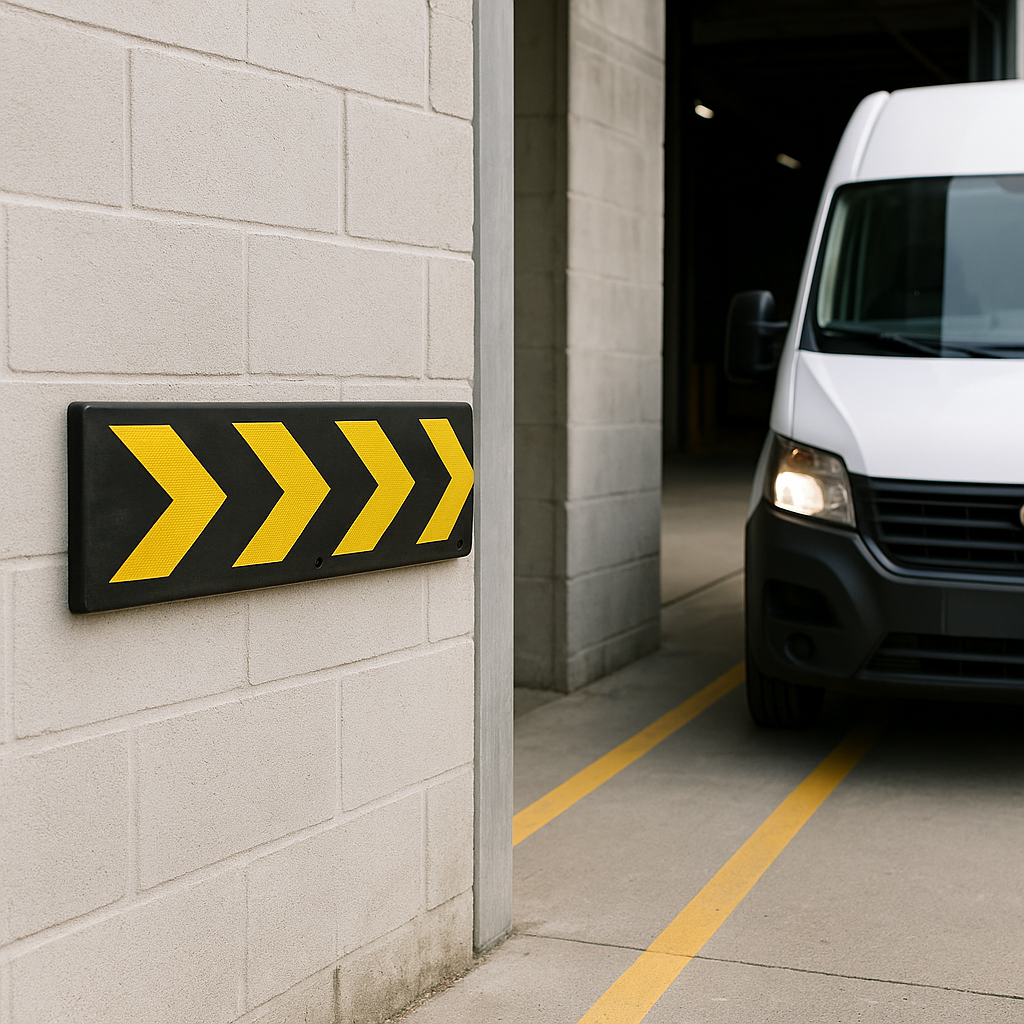

- Loading bay approach walls
- Warehouse aisles and tight corners
- Road curves, tunnels, and low-visibility areas
- Any wall at risk from vehicle contact
Installation
Position the guard on the wall at the required height. Mark and drill through the central fixing hole. Secure with a suitable wall plug and bolt for your substrate. For directional guidance, ensure chevrons point in the intended direction of travel. Mount multiple units end-to-end for extended coverage along a wall.
