Description

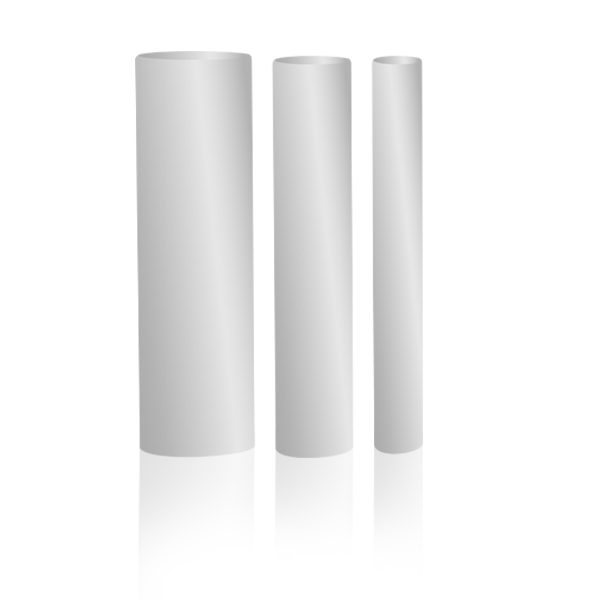

This premium PVDF natural plastic rod offers outstanding chemical resistance, mechanical strength and long-term durability, making it an excellent choice for demanding industrial and engineering applications. Manufactured from high-quality polyvinylidene fluoride, it provides a stable, rigid solution where reliability and performance are critical.
Ideal for use in corrosive environments, outdoor installations and electrical systems, this PVDF rod is UV and weather resistant, with excellent electrical insulation properties. Available in a wide range of diameters from 10mm to 100mm and in standard lengths from 250mm up to 2000mm, it can be easily machined, turned or fabricated to suit your specific project requirements.
Product Features
- Material: premium natural PVDF (polyvinylidene fluoride) for high chemical resistance and stability.
- Diameter options from 10mm up to 100mm to suit light-duty through to heavy-duty components.
- Standard length options include 250mm, 500mm, 1000mm and 2000mm for flexible cutting and machining.
- Example variants include 10mm x 250mm, 10mm x 500mm, 10mm x 1000mm and 10mm x 2000mm, plus over 35 further size combinations.
- Natural off-white colour finish, allowing easy visual inspection of wear, contamination or stress marks.
- Excellent electrical insulation properties, suitable for insulating components and housings.
- UV and weather resistant for reliable use in outdoor and exposed installations.
Key Features and Benefits
- Outstanding chemical resistance to acids, bases and many solvents helps ensure long service life in aggressive environments.
- High mechanical strength and rigidity make the rod suitable for precision machined parts and structural components.
- Inherent UV and weather resistance reduces degradation and colour change when used outdoors.
- Low moisture absorption and good dimensional stability support tight tolerances during machining and operation.
- Excellent electrical insulating properties make it ideal for components in electrical and electronic assemblies.
- Wide choice of diameters and lengths allows efficient material selection, minimising waste and machining time.
Specifications
| Specification | Detail |
|---|---|
| Material | PVDF (polyvinylidene fluoride), natural |
| Available diameters | From 10mm up to 100mm (including 10mm, 15mm and additional larger sizes) |
| Standard lengths | 250mm, 500mm, 1000mm and 2000mm (plus further size combinations) |
| Colour | Natural / off-white |
| Key properties | High chemical resistance, UV and weather resistance, excellent electrical insulation |
| Typical applications | Machined components, chemical processing equipment, electrical insulators, structural parts |
Applications and Ideal Uses
This PVDF plastic rod is suitable for a wide range of industrial, engineering and fabrication tasks where strength, chemical resistance and electrical insulation are required.
- Machined components for chemical and process plant equipment.
- Insulating bushes, spacers and supports in electrical and electronic systems.
- Structural and support parts in outdoor or exposed environments.
- Precision turned parts for pumps, valves and fluid handling systems.
- General engineering prototypes and custom fixtures requiring high performance plastic.
Frequently Asked Questions
Can this PVDF rod be easily machined using standard workshop tools?
Yes, PVDF rod can be machined using conventional metalworking or plastics tooling, such as lathes, mills and saws. Sharp tools and appropriate cutting speeds are recommended to achieve a clean finish and maintain dimensional accuracy.
Is the natural PVDF rod suitable for use outdoors and in UV-exposed environments?
Yes, PVDF has excellent UV and weather resistance, making this rod suitable for outdoor installations and applications where it will be exposed to sunlight and the elements for extended periods.
How do I choose the correct diameter and length for my application?
Select a diameter that provides sufficient mechanical strength for your part after machining, allowing for any material to be removed during turning or milling. Choose the nearest standard length (250mm, 500mm, 1000mm or 2000mm) that gives enough material for your components while keeping offcuts and waste to a minimum.
