Description
Parking Column Protector – PVC Extruded Profile

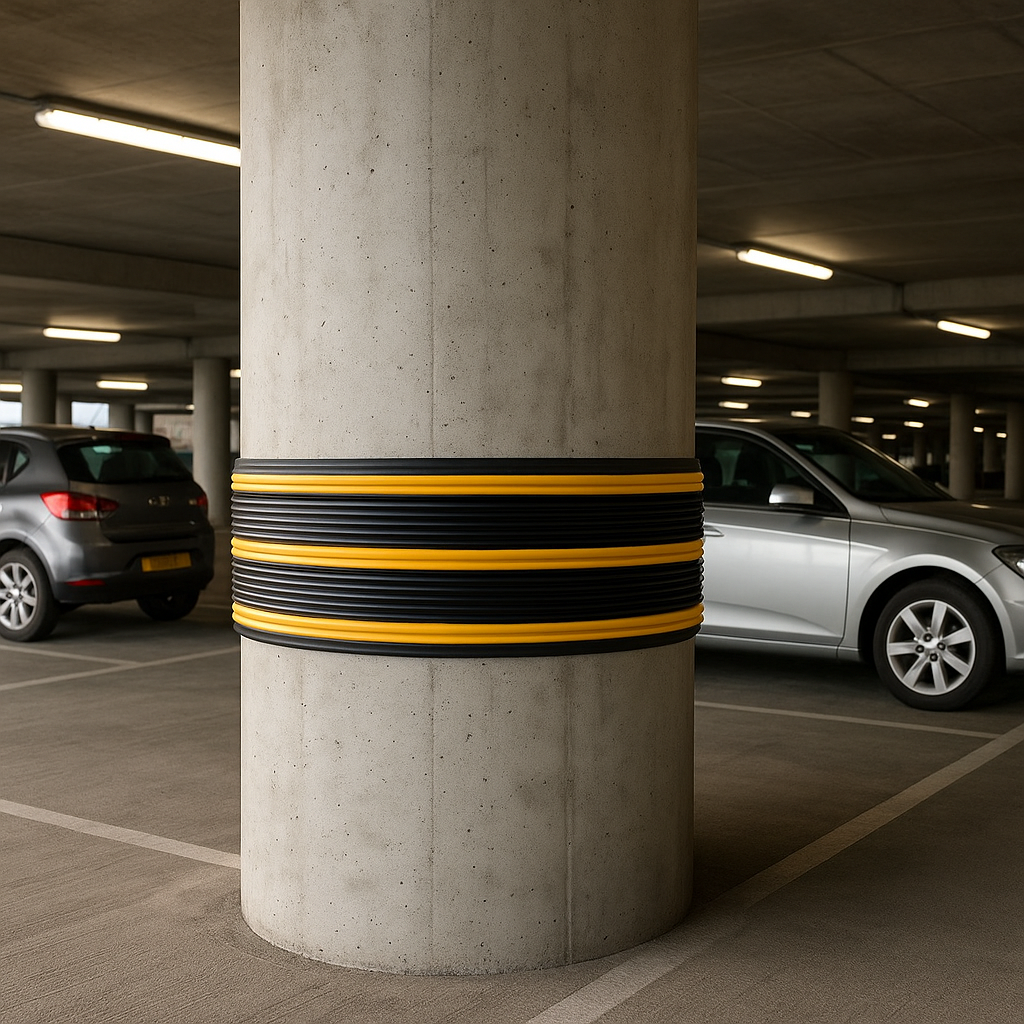

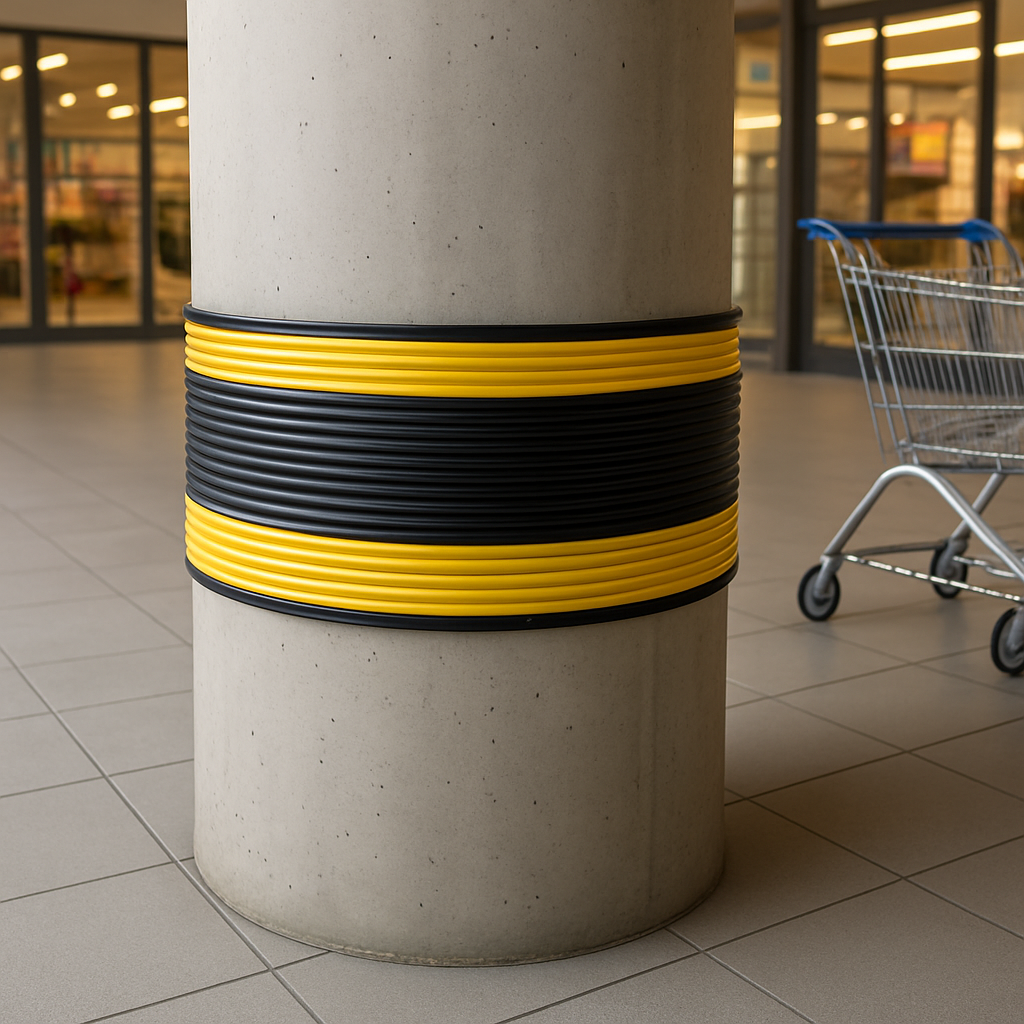

This heavy-duty PVC column protector strip provides complete protection for circular car park columns, structural pillars, and other surfaces from accidental vehicle collisions. The domed V-shape profile cushions impacts, preventing costly concrete damage and vehicle bodywork repairs. The high-visibility black and yellow colouring provides a clear warning to drivers, reducing the risk of accidental contact.
Supplied in a 5000mm (5 metre) length, this flexible extruded strip wraps around columns of any diameter and can be cut to length on site.
Dimensions & Coverage Guide
| Strip Length | Strip Width | Thickness | Column Coverage (approx.) |
|---|---|---|---|
| 5000mm (5m) | 200mm | 30mm | Wraps a 400mm dia. column ~4x or a 600mm dia. column ~2.5x |
Strip can be cut to length on site with a sharp utility knife. For taller columns, stack strips vertically. Multiply strips for larger diameter columns or wider coverage areas.
Product Specifications
| Specification | Detail |
|---|---|
| Material | PVC (extruded) |
| Hardness | 85 Shore A |
| Length | 5000mm (5 metres) |
| Width | 200mm |
| Height / Thickness | 30mm |
| Colour | Black and Yellow (high-visibility) |
| Profile | Domed V-shape, multi-ribbed face |
| Max operating temperature | +55°C |
| Min operating temperature | −15°C |
| Application | Circular columns, walls, structural pillars |
| Installation | Wrap and fix with suitable fixings |
Key Benefits
- High-vis black & yellow – instantly recognisable hazard colouring, warns drivers before impact occurs
- Domed V-shape profile – absorbs and deflects vehicle bumper and door impacts
- Flexible PVC construction – conforms to curved surfaces including circular columns of any diameter
- 5 metre length – a single strip covers most standard car park columns with minimal joins
- 85 Shore A hardness – firm enough to protect the column, flexible enough to absorb impact energy
- Wide temperature range – rated −15°C to +55°C, suitable for UK multi-storey car parks year-round
- Cut to length on site – easily trimmed with a sharp knife to any required length
- Low maintenance – once installed, no ongoing maintenance required
Typical Applications
- Multi-storey and underground car parks
- Shopping centre and retail park columns
- Airport and hotel parking structures
- Loading bays and dock columns
- Factory and warehouse structural pillars
- Any circular column or pillar at vehicle height
Installation Guide
Wrap the strip around the column or surface to be protected. Mark and drill fixing points through the strip at suitable intervals. Secure with appropriate fixings for your substrate (concrete anchors, screws, or bolts). The flexible PVC profile will conform to circular and irregular surfaces. Cut to length with a sharp utility knife. For full column protection, butt strips end-to-end vertically.
⚡ UK Stock – Fast Dispatch | ✅ 5 Metre Length | 🟡 High-Vis Black & Yellow | 🅿️ Protects Columns, Walls & Pillars
Supplying UK engineers, manufacturers and public bodies
