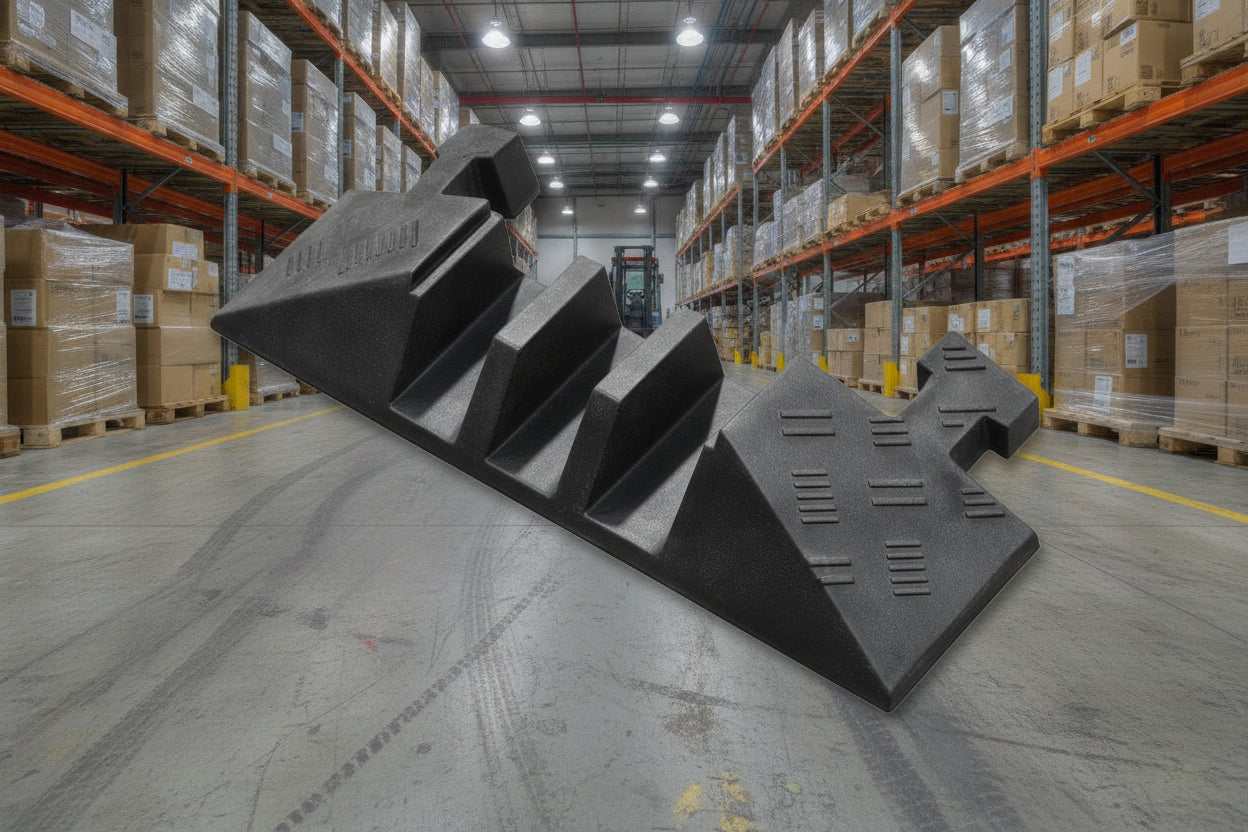

Male & Female Fitting Hose And Cable Ramp

The SN225 Hose and Cable Ramp is a 3 channel end connector for the SN224 Hose and Cable Ramp. This part is sold as a pair, one male and one female fitting.This part has no lid.

Note: These ramps are for temporary deployment and not for permanent fitting.

Made from Commercial Grade Rubber

Inner Channel:

• 55mm wide x 50mm deep

Outer Channels:

• 70mm wide x 50mm deep

Max Load:

• 12 Tonnes per vehicle axle when joined to SN224

Approx Dims:

• (Male fitting) 150  x 590 x 80 mm : (Female fitting) 200  x 590 x 80 mm

Weight:

• 9 kg
