Cut to size calculator
Prices include VAT and cutting. Several pieces of the same size are cut from one piece of stock where they fit, allowing 4mm for the saw blade between pieces; the first piece is cut free and each additional piece is £1.60. Cut pieces are made to order and have a sawn finish. Delivery is calculated at checkout. For shapes, holes or large quantities, request a quote or call 01744 520110.
Description

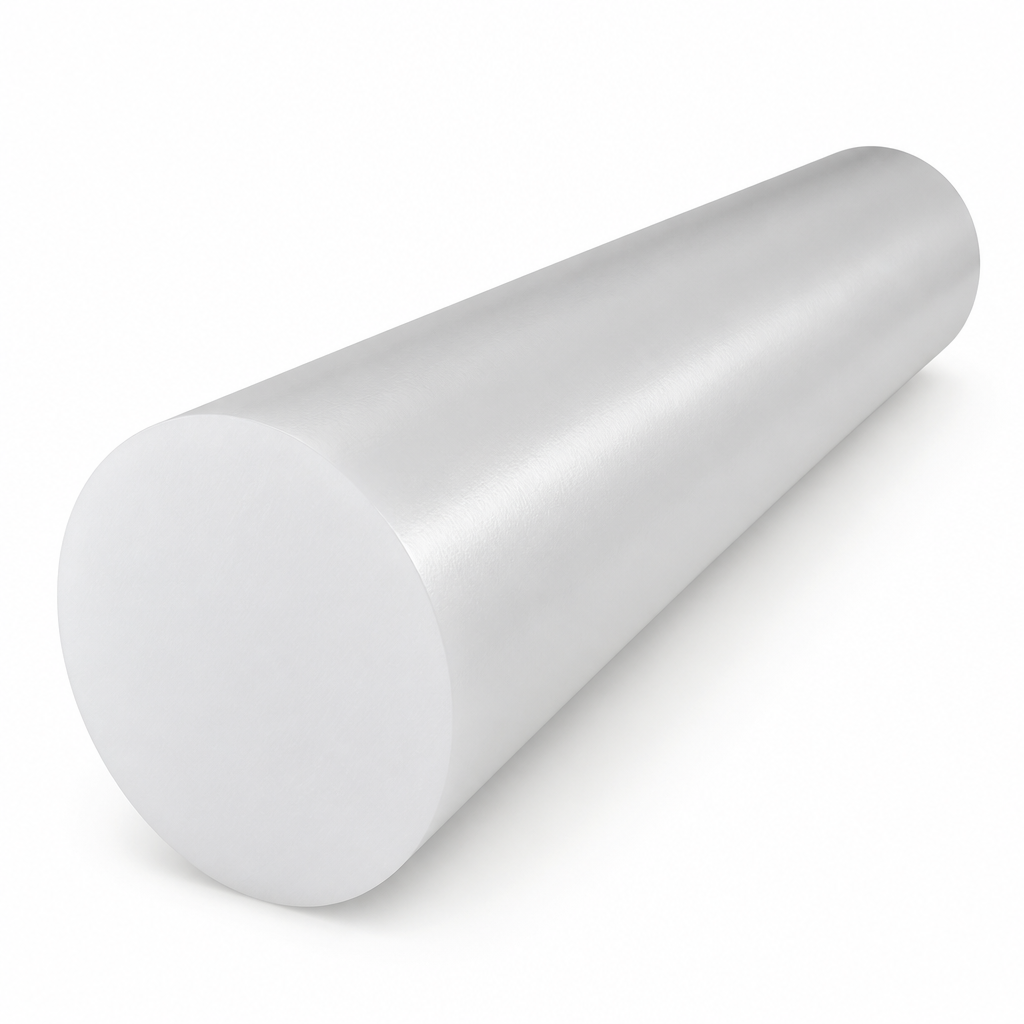

High Density Polyethylene (HDPE) Rod is a versatile engineering plastic known for its lightweight and strong properties. Ideal for various applications including food production, it offers excellent sliding properties and chemical resistance.
Material Properties
High Density Polyethylene (HDPE) is a lightweight material with a specific gravity of 0.96. It exhibits excellent sliding properties, good chemical resistance, low moisture absorption, and maintains high impact strength in low temperatures ranging from -50°C to +80°C.
Performance Characteristics
HDPE Rod is recognized for its good low-temperature resistance, low density, and low water absorption. It also possesses favorable electrical properties and is compliant for food use, making it suitable for various applications.
Applications
This HDPE Rod is commonly used in pumps, tank construction, gaskets, medical applications, and components for the food industry. Its versatility makes it a popular choice for general-purpose engineering.
Advantages and Limitations
While HDPE Rod is excellent for wear resistance and low friction, it can be challenging to bond with adhesives. It is lightweight and cost-effective, making it an economical choice, although it is not the hardest engineering plastic available.
Specifications
- Material: High Density Polyethylene (HDPE)
- Specific Gravity: 0.96
- Temperature Range: -50°C to +80°C
- Food Compliant: Yes
- Diameter Options: 250mm, 300mm
- Length Options: 100mm, 250mm, 500mm, 1000mm
Benefits
- Safe for food applications
- Good wear and abrasion resistance
- Low friction for reduced wear in moving parts
- Economical choice for various engineering needs
Use Cases
- Pumps
- Tank construction
- Gaskets
- Medical applications
- Components for the food industry
FAQ
Q: Can HDPE Rod be used for food applications?
A: Yes, HDPE Rod is food compliant and suitable for use in food production environments.
Q: Is HDPE Rod suitable for wear resistance?
A: Yes, HDPE Rod has good wear resistance, especially in applications with lower loads.
All sizes & prices
8 sizes · prices include VAT · tap a price to select that size
| Diameter Length | 100mm | 250mm | 500mm | 1000mm |
|---|---|---|---|---|
| 250mm | £249.74£2,497.40/m | £567.58£2,270.32/m | £1,081.10£2,162.20/m | £2,059.24£2,059.24/m |
| 300mm | £358.60£3,586.00/m | £815.04£3,260.16/m | £1,552.44£3,104.88/m | £2,957.02£2,957.02/m |
Need a size that isn't listed? We cut to order. Request a quote or call 01744 520110.
