Description
Professional Rubber Wall Guard – Double D Profile

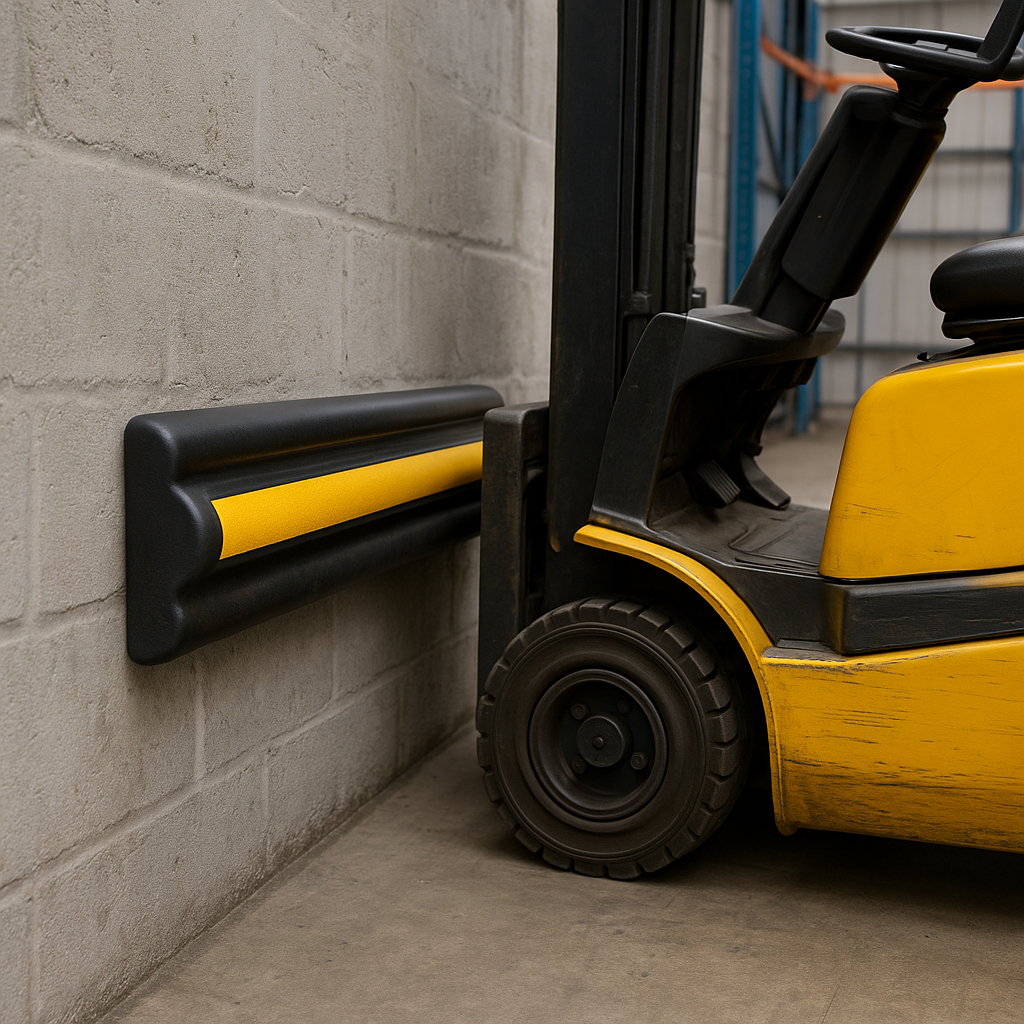

Protect your warehouse walls, loading bays, and factory facilities from costly impact damage with this commercial-grade rubber wall guard. The double-D profile design absorbs and deflects impacts from forklifts, pallet trucks, trolleys, and stillages — preventing structural damage and reducing workplace maintenance costs.
Suitable for both internal and external installations, this versatile wall guard can be used in garages, car parks, workshops, warehouses, and industrial stores across domestic, commercial, and industrial applications.
Product Specifications
| Specification | Detail |
|---|---|
| Material | NR/SBR Commercial Grade Rubber |
| Hardness | 75 Shore A |
| Length | 1000mm |
| Width | 150mm |
| Height / Thickness at D | 55mm |
| Colour | Black with high-vis yellow insert strip |
| Fixing holes | 3 x pre-drilled 15mm diameter holes |
| Fixings required | 3 x M12 x 100mm bolts (not included) |
| Max operating temperature | +70°C |
| Min operating temperature | −15°C |
| Installation | Internal or external, individually or continuous runs |
Key Benefits
- Impact-absorbing double-D profile – two rounded lobes deflect and absorb forklift and trolley impacts
- High-vis yellow insert strip – high-contrast centre strip provides clear visual warning for drivers and pedestrians
- NR/SBR rubber compound – durable, weather-resistant, 75 Shore A hardness built for heavy industrial use
- Internal & external use – suitable for indoor and outdoor installations year-round
- Wide temperature range – rated from −15°C to +70°C, handles all UK weather conditions
- Pre-drilled fixing holes – 3 x 15mm holes for straightforward M12 bolt installation

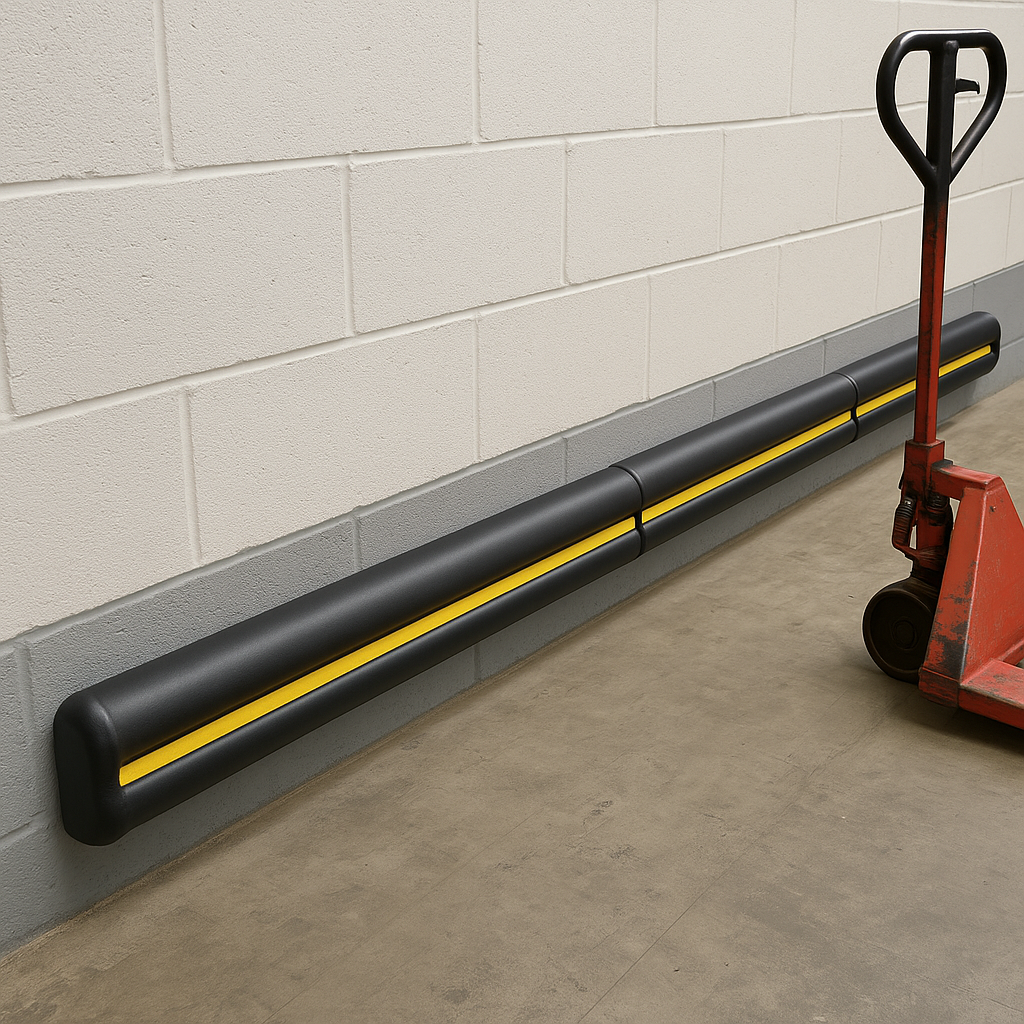

- Continuous run installation – closed ends allow units to be butted together in long protective runs
- Low maintenance – once installed, no ongoing maintenance required
Typical Applications
- Warehouse loading bays and dock areas
- Factory and production facility walls

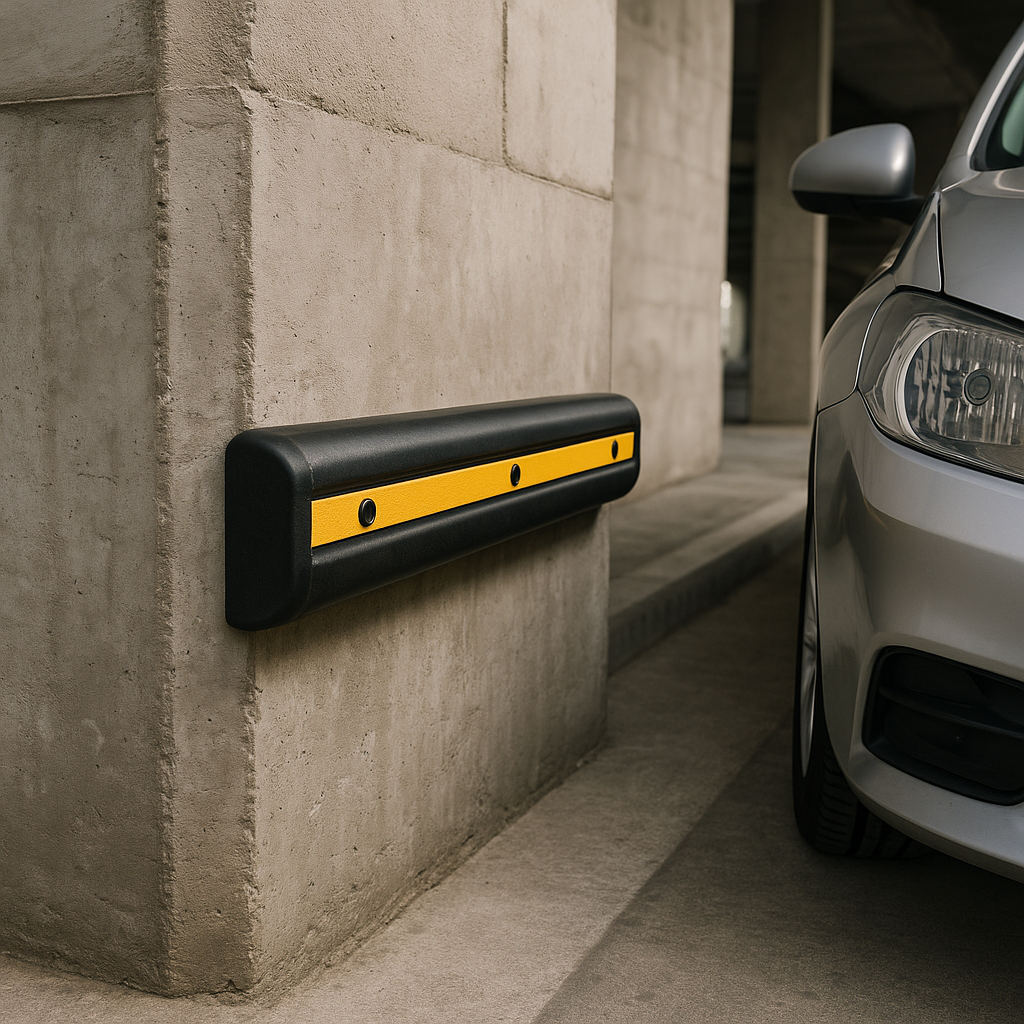

- Car parks and multi-storey parking facilities
- Garages and workshops
- Distribution centres and logistics hubs
- Cold storage and refrigerated units
- Retail stockrooms and stores
- Any area where walls are exposed to vehicle or trolley traffic
Installation
Mark 3 fixing points at the required height on your wall. Drill and plug as appropriate for your wall type. Secure the wall guard using 3 x M12 x 100mm bolts (not supplied). Units can be installed individually or in a continuous run by butting units end-to-end along the wall length. Suitable for concrete, brick, block, and masonry walls.
⚡ UK Stock – Fast Dispatch | ✅ NR/SBR Commercial Grade Rubber | 🌡️ Rated −15°C to +70°C | 🏭 Internal & External Use
