Description
Heavy Duty Rubber Wall Protector – Flat Extrusion Profile

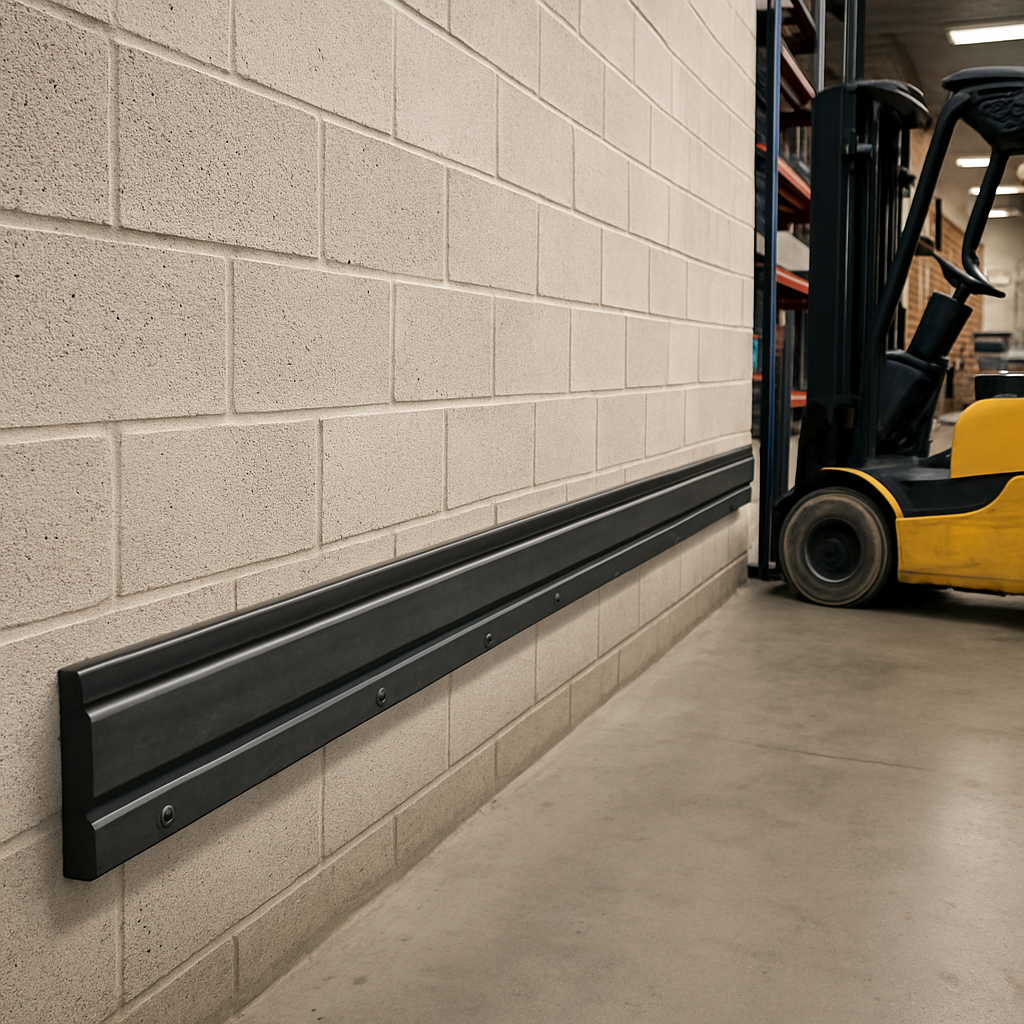

This solid rubber wall guard extrusion provides 3 metres of continuous, heavy-duty wall protection in a single length. At 40mm thick and 200mm wide, it creates a serious barrier against vehicle impacts, forklift damage, trolley knocks, and machinery contact — protecting your walls from costly structural damage.
Manufactured from a hardwearing NR/SBR rubber compound rated for both internal and external use. Once installed, it requires zero maintenance and will outlast most other wall protection solutions.
Product Specifications
| Specification | Detail |
|---|---|
| Material | NR/SBR Commercial Grade Rubber |
| Hardness | 75 Shore A |
| Length | 3000mm (3 metres) |
| Width | 200mm |
| Thickness | 40mm |
| Colour | Black |
| Weight | approx. 27kg |
| Pre-drilled holes | No – drill on site to suit requirements |
| Fixing spacing | Every 300mm recommended |
| Fixings required | Stainless steel washers + M8 x 90mm countersunk bolts (not included) |
| Max operating temperature | +70°C |
| Min operating temperature | −15°C |
| Installation | Internal or external, individually or in continuous runs |
Key Benefits
- 3 metre single length – one piece covers 3m of wall with no joins or gaps
- 40mm solid rubber thickness – absorbs heavy impacts from forklifts, FLTs, and HGVs
- 200mm wide coverage – wide profile protects a generous wall area
- NR/SBR compound, 75 Shore A – commercial grade hardness, built for industrial punishment
- Internal & external rated – works indoors and outdoors, year-round UK weather
- Temperature range −15°C to +70°C – handles all UK climate conditions
- Drill on site – fix at any spacing to suit your wall and requirements
- Continuous runs – butt multiple units together for longer wall coverage
- Long service life – solid rubber construction, rarely needs replacing once installed
Typical Applications

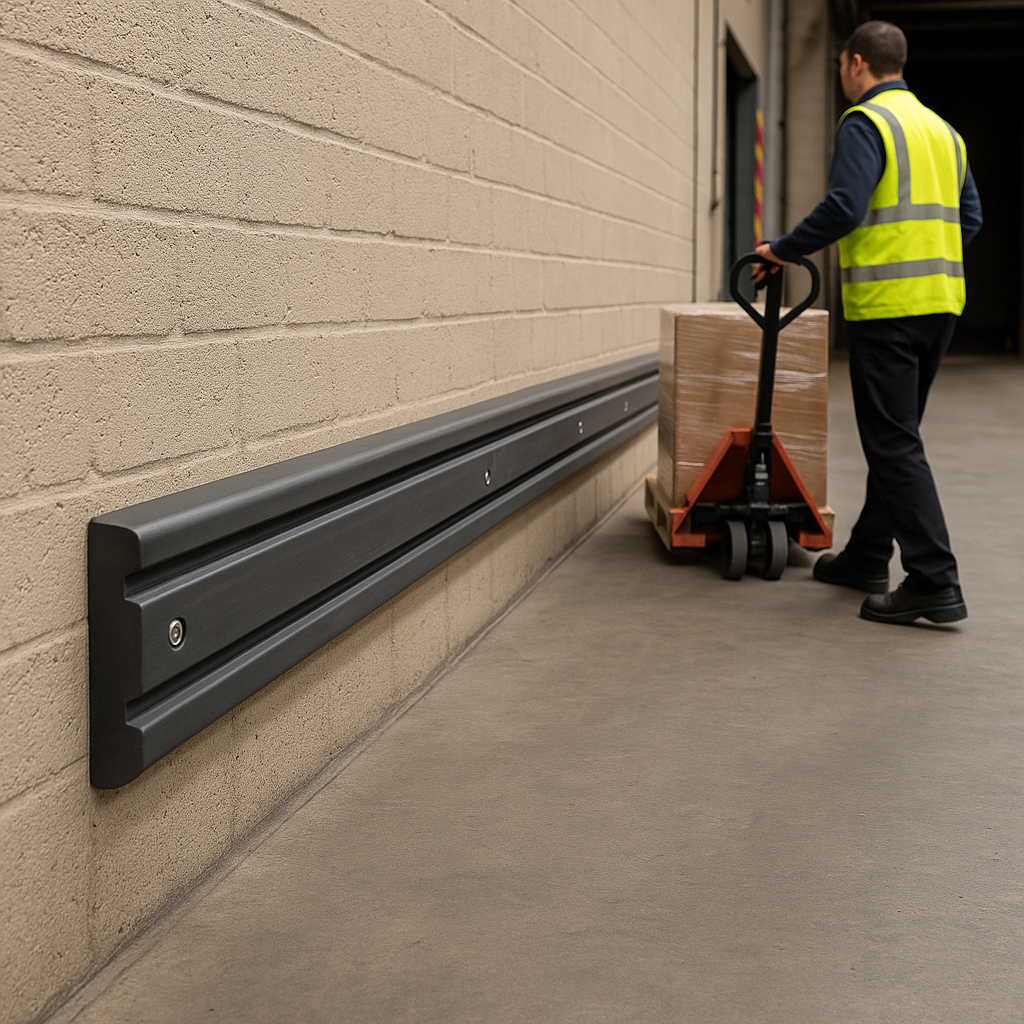

- Warehouse loading bays and dock walls
- Factory and production facility walls

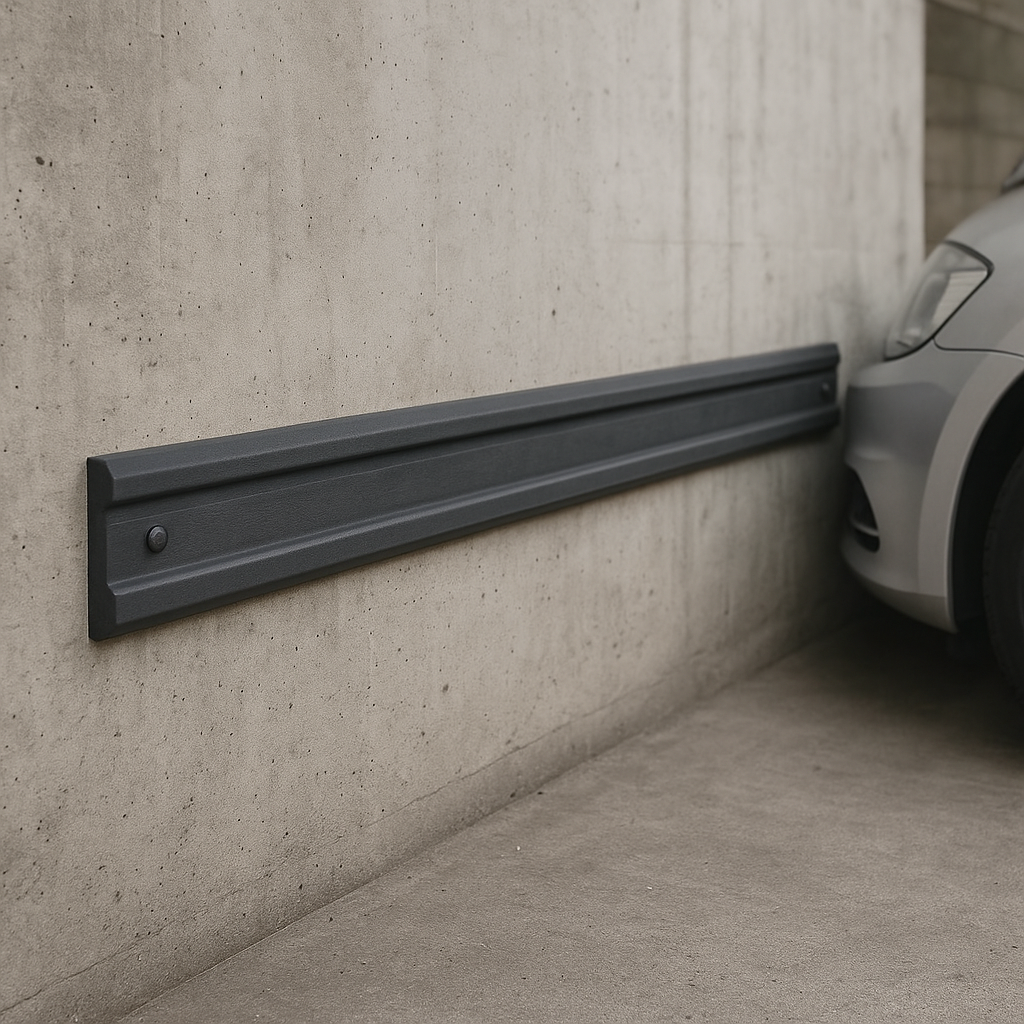

- Car parks and multi-storey parking structures
- Workshops, garages, and vehicle maintenance bays
- Distribution centres and logistics facilities
- Cold storage and refrigerated warehouse walls
- Retail stockrooms and commercial stores
Installation Guide
Mark fixing points along the wall every 300mm. Drill through the rubber and plug the wall to suit your substrate (concrete, brick, block, or masonry). Secure using stainless steel washers and M8 x 90mm countersunk bolts (not supplied). Units can be butted end-to-end for longer continuous runs.
