Cut to size calculator
Prices include VAT and cutting. Several pieces of the same size are cut from one piece of stock where they fit, allowing 4mm for the saw blade between pieces; the first piece is cut free and each additional piece is £1.60. Cut pieces are made to order and have a sawn finish. Delivery is calculated at checkout. For shapes, holes or large quantities, request a quote or call 01744 520110.
Description

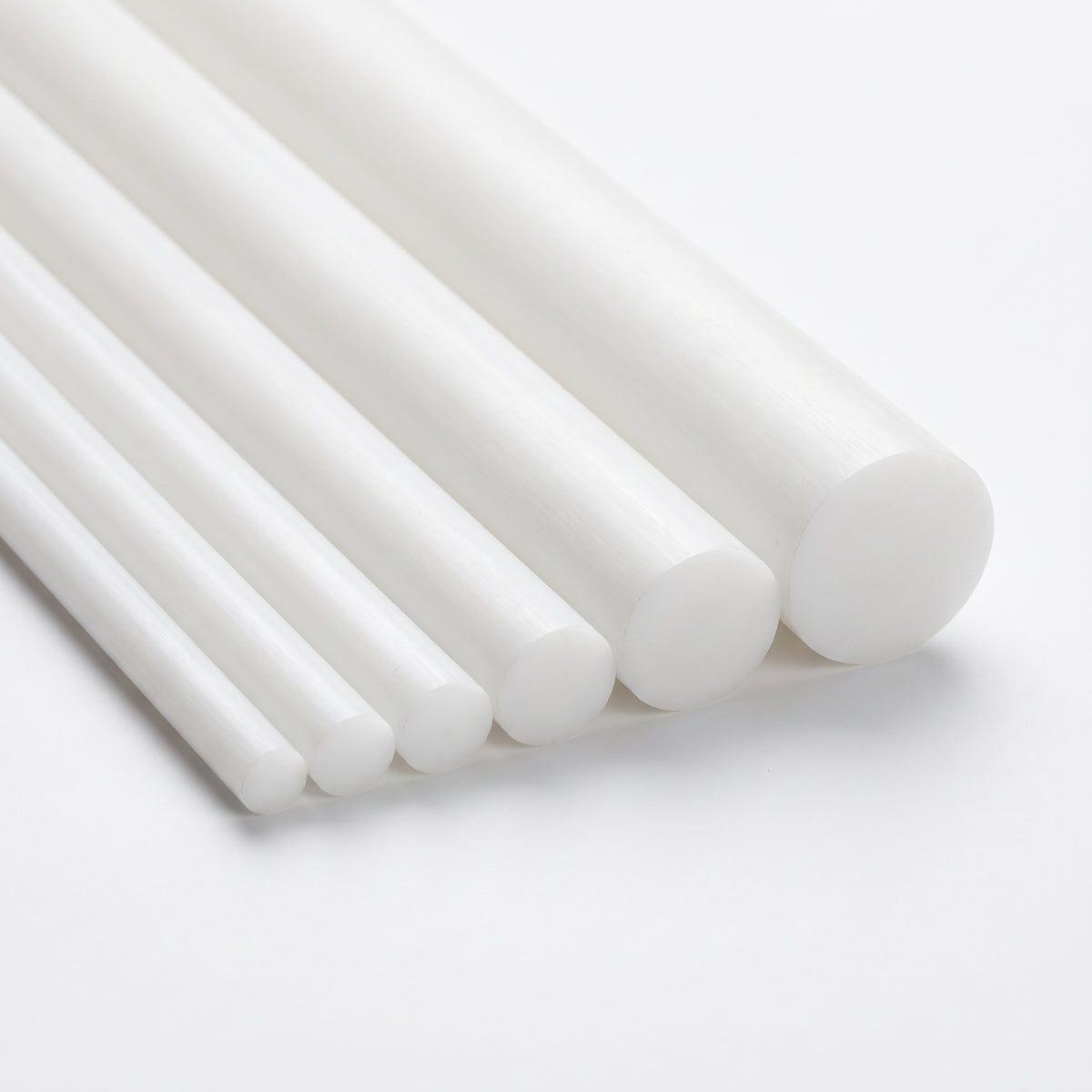

Genuine Delrin® acetal homopolymer rod in white, from 20mm to 130mm diameter. Delrin is manufactured from Delrin® acetal resin. Compared with standard acetal copolymer it has higher mechanical strength, stiffness, hardness and creep resistance, a lower thermal expansion rate and often better wear resistance – making it ideal for machined parts that benefit from extra strength and rigidity.
Why choose Delrin rod
- Higher mechanical strength, stiffness and hardness than acetal copolymer
- Excellent creep resistance for long-lasting performance
- Lower thermal expansion for dimensional stability
- Superior wear resistance for extended use
- Ideal for precision machining
- Normally in stock, with custom lengths available from 40mm
Size, length and weight guide
Weights are approximate.
| Diameter | Lengths | Approx. weight |
|---|---|---|
| 20mm | 3000mm | 1.3kg |
| 25mm | 3000mm | 2.1kg |
| 30mm | 3000mm | 3.0kg |
| 36mm | 3000mm | 4.3kg |
| 40mm | 1000mm or 3000mm | 1.8kg / 5.4kg |
| 45mm | 1000mm or 3000mm | 2.3kg / 6.8kg |
| 50mm | 1000mm or 3000mm | 2.8kg / 8.4kg |
| 60mm | 1000mm or 3000mm | 4.0kg / 12.0kg |
| 80mm | 1000mm or 3000mm | 7.1kg / 21.4kg |
| 100mm | 1000mm | 11.2kg |
| 120mm | 1000mm | 16.1kg |
| 130mm | 1000mm | 18.9kg |
Specifications
- Material: Delrin® acetal homopolymer (POM-H)
- Colour: White
- Diameters: 20mm, 25mm, 30mm, 36mm, 40mm, 45mm, 50mm, 60mm, 80mm, 100mm, 120mm and 130mm
- Lengths: 20mm to 36mm in 3000mm lengths; 40mm to 80mm in 1000mm or 3000mm lengths; 100mm to 130mm in 1000mm lengths
- Cut lengths with the cut-to-size calculator: 40mm to 80mm diameter from 50mm to 1000mm; 100mm to 130mm diameter from 245mm to 1000mm (245mm is the minimum cut length on these large diameters). Longer lengths come as full 3000mm bars (40mm to 80mm only)
- Availability: 100mm to 130mm diameter is normally from stock, but may need an extra 5 to 7 days for delivery
- Higher mechanical strength and stiffness
- Lower thermal expansion rate
- Better wear resistance than acetal copolymer
Typical uses

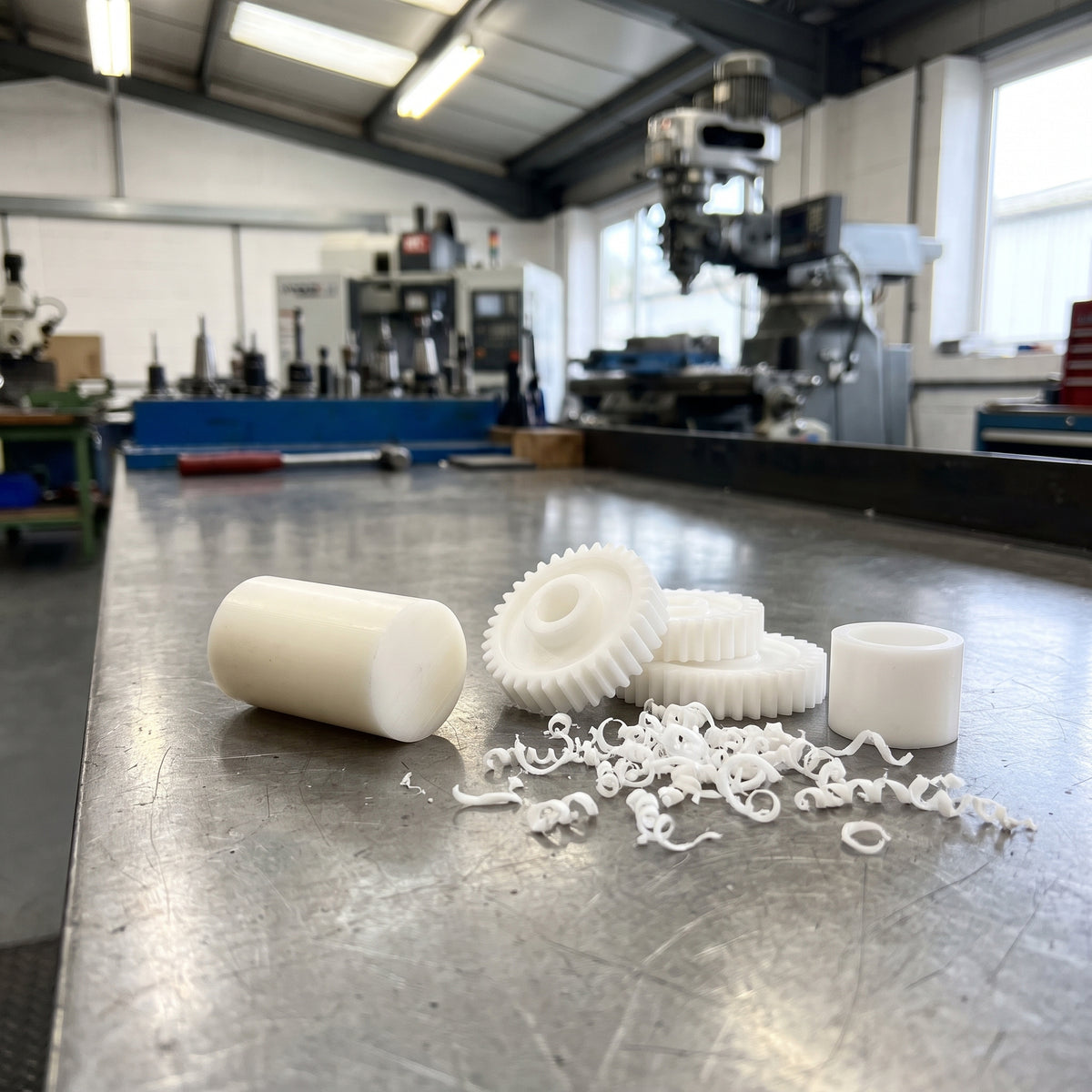

- Precision machined parts
- Gears, bearings and bushes
- Mechanical components
- Industrial and engineering projects
Delrin or acetal copolymer?
- Delrin (this rod) – choose it when a part needs the extra strength, rigidity and creep resistance of homopolymer acetal.
- Natural acetal copolymer rod – the standard acetal grade, in 50mm to 220mm.
- Black acetal copolymer rod – the usual alternative when you need black.
- Looking for a nylon? See our Nylon 66 rod.
FAQ
Q: What is Delrin?
A: Delrin is an acetal homopolymer known for its high strength and rigidity.
Q: What sizes are available?
A: Delrin rod is available from 20mm to 130mm diameter. 20mm to 36mm comes in 3000mm lengths, 40mm to 80mm in 1000mm or 3000mm lengths, and 100mm to 130mm in 1000mm lengths.
Q: Is black Delrin available?
A: Black Delrin can be made to order, subject to minimum order quantities – please get a quote. Black acetal copolymer rod is available as a ready alternative.
Q: Do you have smaller diameters?
A: For diameters under 20mm, acetal copolymer rod is the usual alternative. Please get a quote.
Q: Can I get a custom length?
A: Yes, for 40mm to 130mm diameter. Use the cut-to-size calculator on this page for an instant price on any length up to 1000mm – from 50mm on 40mm to 80mm diameter, and from 245mm on 100mm to 130mm diameter (the minimum cut length on these large diameters). For anything longer, choose a full 3000mm bar (40mm to 80mm). 20mm to 36mm is supplied in full 3000mm lengths only.
Delrin® is a registered trademark of its respective owner.
All sizes & prices
17 sizes · prices include VAT · tap a price to select that size
| Size | Price | Ex VAT |
|---|---|---|
| 20mm / 3000mm | £75.96 | £63.30 |
| 25mm / 3000mm | £118.66 | £98.88 |
| 30mm / 3000mm | £167.18 | £139.32 |
| 36mm / 3000mm | £241.34 | £201.12 |
| 40mm / 1000mm | £98.88 | £82.40 |
| 40mm / 3000mm | £296.64 | £247.20 |
| 45mm / 1000mm | £127.04 | £105.87 |
| 45mm / 3000mm | £381.10 | £317.58 |
| 50mm / 1000mm | £154.56 | £128.80 |
| 50mm / 3000mm | £463.68 | £386.40 |
| 60mm / 1000mm | £222.36 | £185.30 |
| 60mm / 3000mm | £667.08 | £555.90 |
| 80mm / 1000mm | £400.60 | £333.83 |
| 80mm / 3000mm | £1,201.82 | £1,001.52 |
| 100mm / 1000mm | £617.78 | £514.82 |
| 120mm / 1000mm | £893.80 | £744.83 |
| 130mm / 1000mm | £1,048.88 | £874.07 |
Need a size that isn't listed? We cut to order. Request a quote or call 01744 520110.
