Description

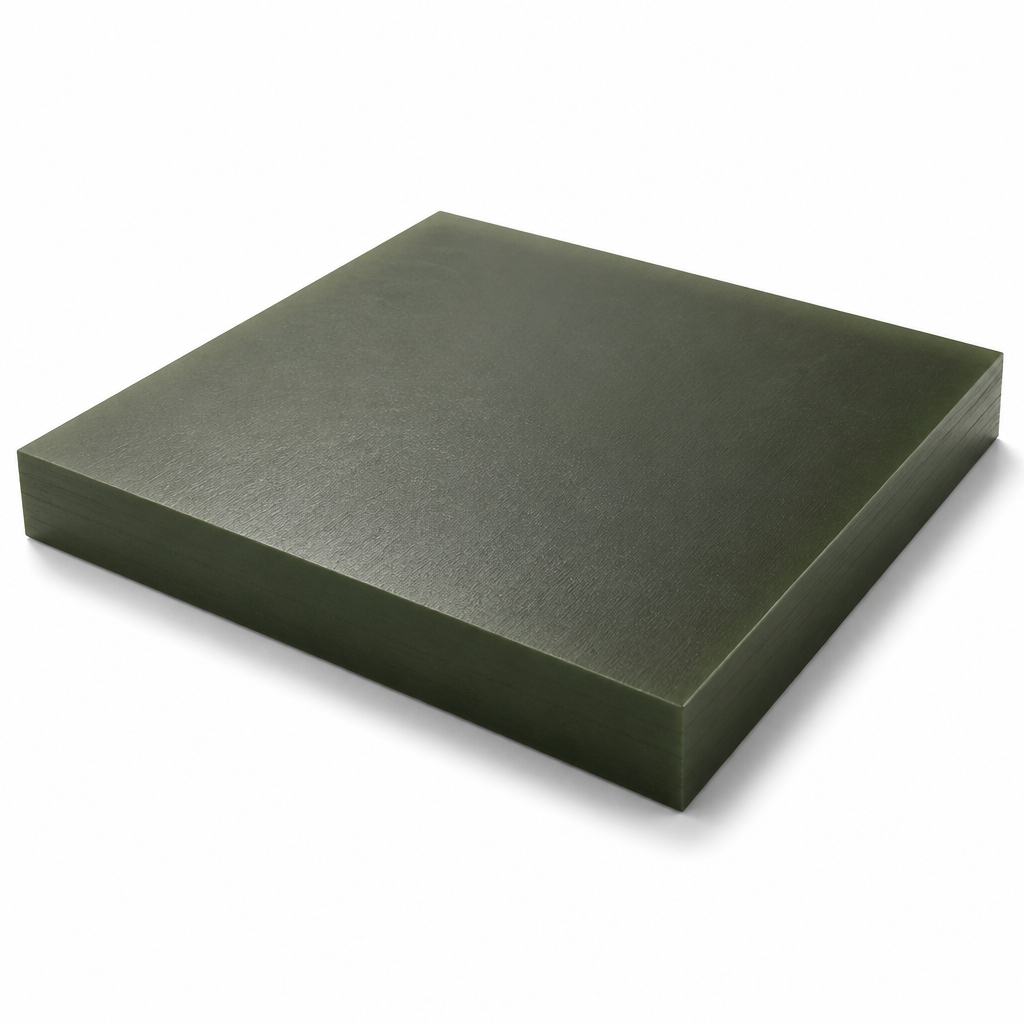

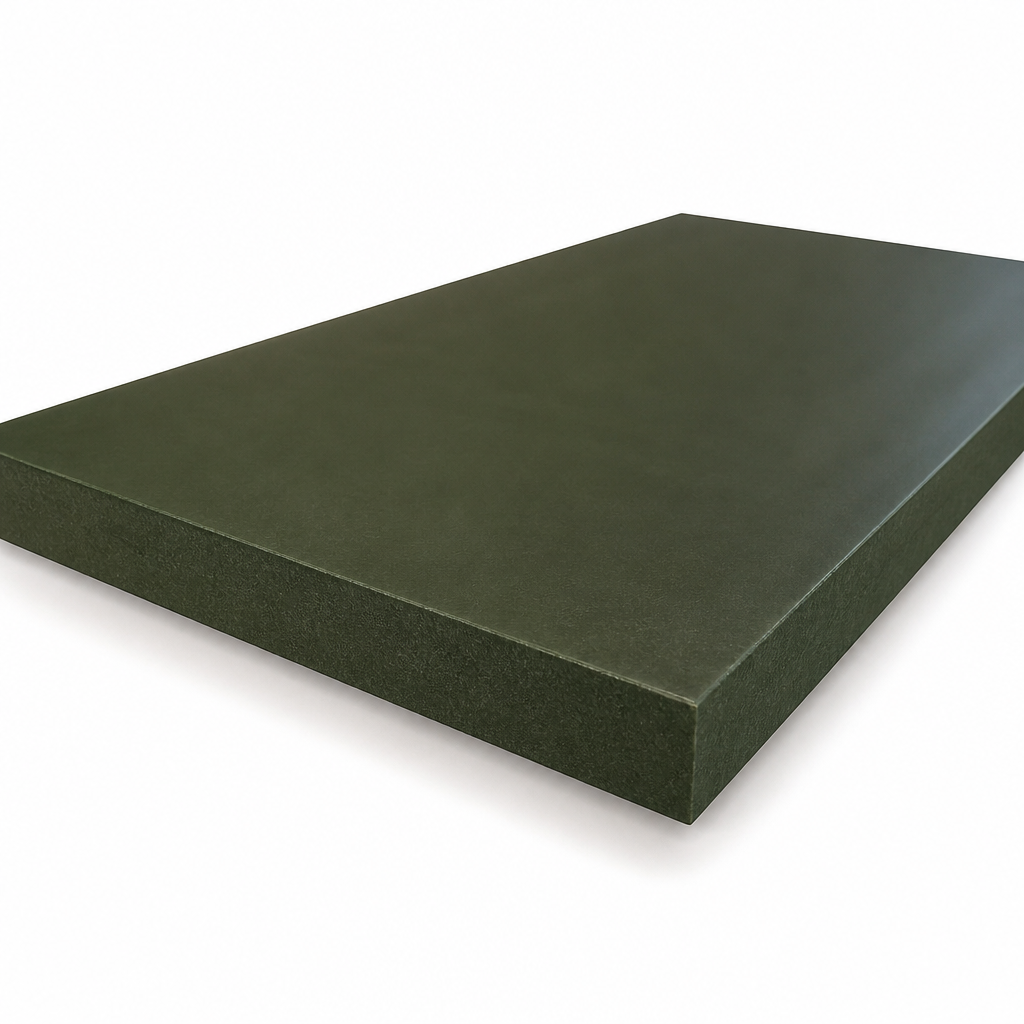

Oilon Sheet is a high-performance cast polyamide 6 material that offers self-lubricating properties. Ideal for use in various industrial applications.
Material Composition
Oilon Sheet is made from cast polyamide 6, also known as Nylon 6, which is enhanced with a special industrial-grade oil lubricant. This unique blend provides superior self-lubricating properties, making it suitable for high loads and slow-moving parts.
Performance Features
This material boasts a reduced coefficient of friction by up to 50% compared to standard Nylon 6 grades, resulting in better lubrication and wear resistance. It is particularly effective in applications involving chain guides, bearings, wear pads, cams, conveyor parts, and gears.
Machining and Stability

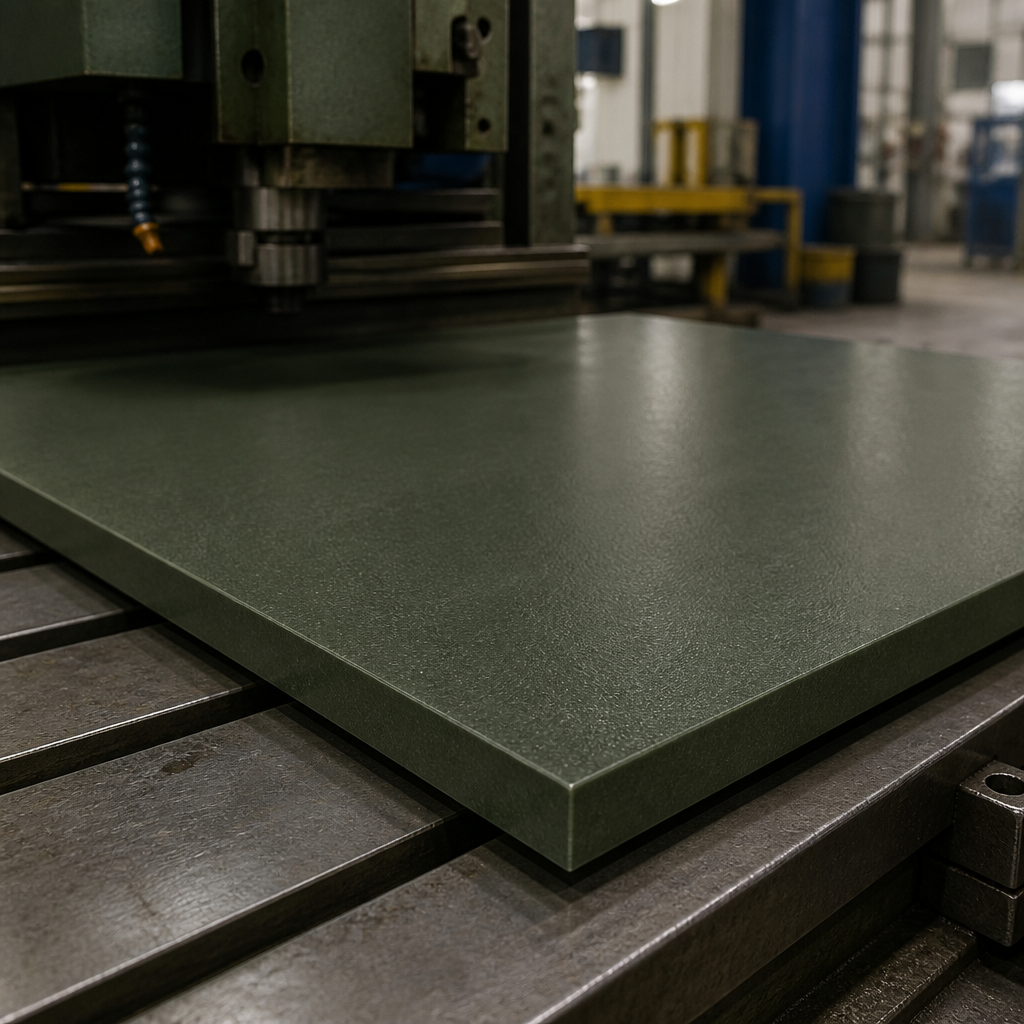

Oilon Sheet can be easily machined like regular cast nylon, with the added benefit of enhanced lubrication. The manufacturing process includes rigorous annealing to minimize internal stress, ensuring that machined components maintain stability.
Applications and Benefits

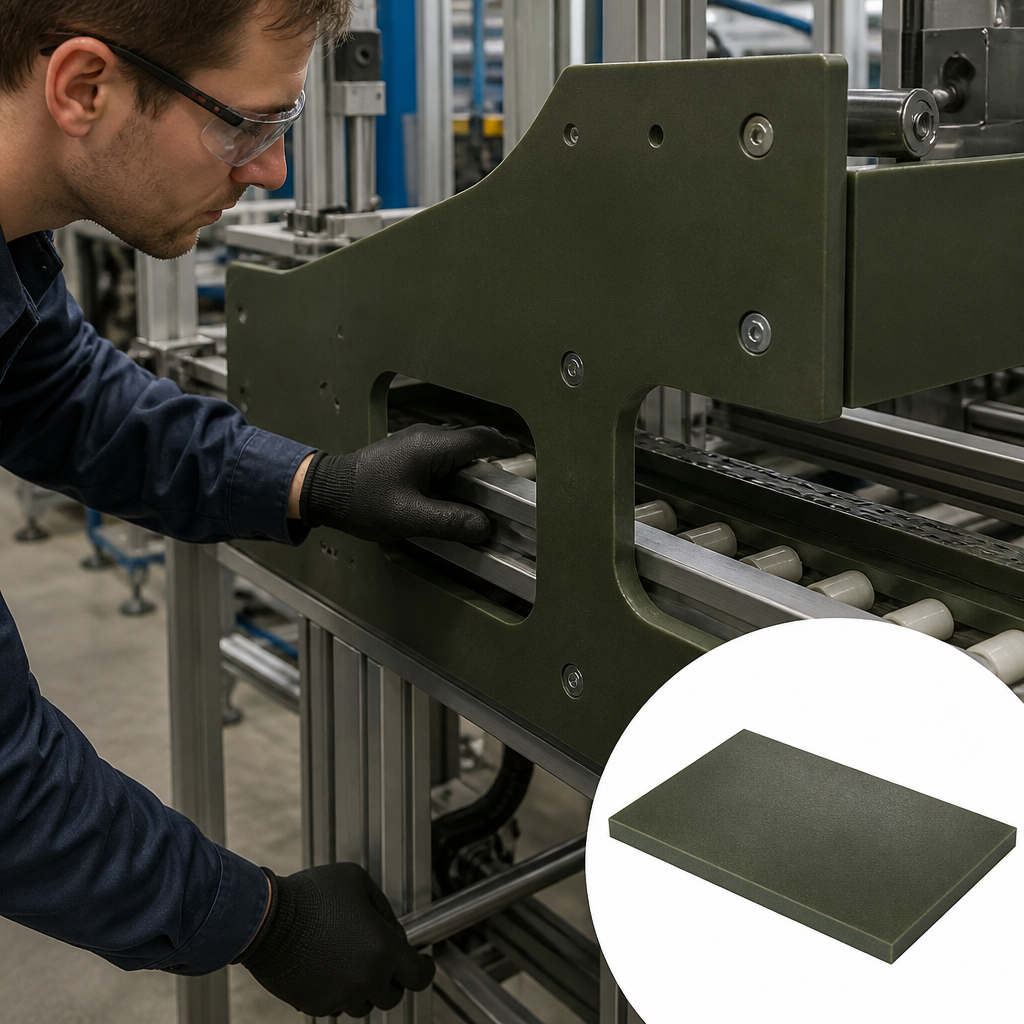

Oilon Sheet is highly regarded in various industrial settings due to its durability and performance in harsh environments. Customers have reported quieter operation in slide blocks, making it a preferred choice over standard nylon sheets.
Specifications
- Material: Cast Polyamide 6
- Self-lubricating properties
- Reduced coefficient of friction up to 50%
- Better wear resistance
- Available sizes: 250 x 250 x 40mm, 300 x 250 x 40mm, 1000 x 100 x 40mm, 500 x 250 x 40mm, 500 x 300 x 40mm, 500 x 500 x 40mm, 1000 x 250 x 40mm, 500 x 600 x 40mm, 1000 x 300 x 40mm, 1000 x 500 x 40mm, 1000 x 600 x 40mm, 1000 x 1000 x 40mm, 1200 x 1000 x 40mm, 250 x 250 x 50mm, 300 x 250 x 50mm, 1000 x 100 x 50mm, 500 x 250 x 50mm, 500 x 300 x 50mm, 500 x 500 x 50mm, 1000 x 250 x 50mm, 500 x 600 x 50mm, 1000 x 300 x 50mm, 1000 x 500 x 50mm, 1000 x 600 x 50mm, 1000 x 1000 x 50mm, 250 x 250 x 60mm, 1000 x 100 x 60mm, 500 x 250 x 60mm, 500 x 500 x 60mm, 1000 x 250 x 60mm, 1000 x 500 x 60mm
Benefits
- Enhanced durability in harsh environments
- Quieter operation in applications
- Stable performance after machining
Use Cases
- Chain guides
- Bearings
- Wear pads
- Cams
- Conveyor parts
- Gears
- Can mandre
FAQ
Q: What is Oilon Sheet?
A: Oilon Sheet is a cast polyamide 6 material enhanced with a special oil lubricant for improved performance in industrial applications.
Q: Is Oilon Sheet easy to machine?
A: Yes, Oilon Sheet machines similarly to regular cast nylon, with added benefits from the extra lubricant.
Q: What color is Oilon Sheet?
A: Oilon Sheet is typically green, with variations in shade similar to British Racing Green.
