Description

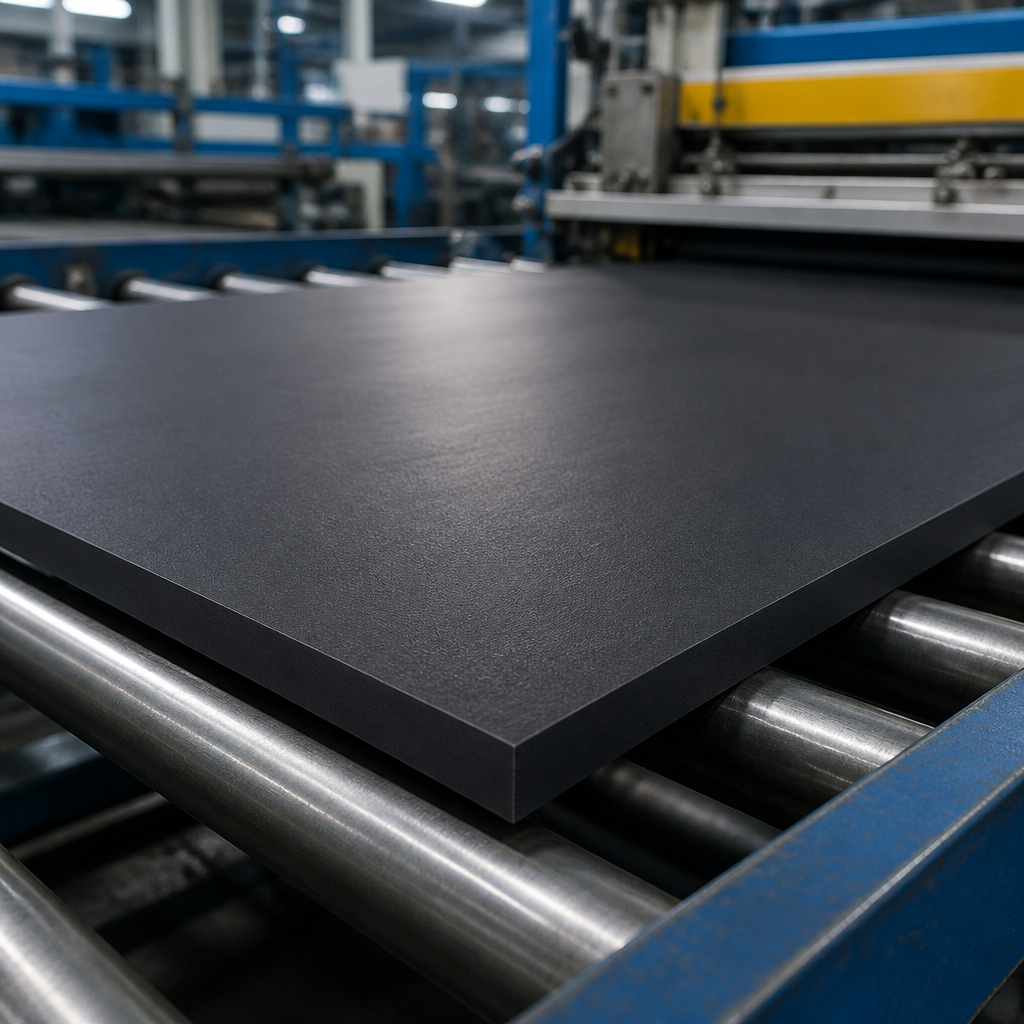

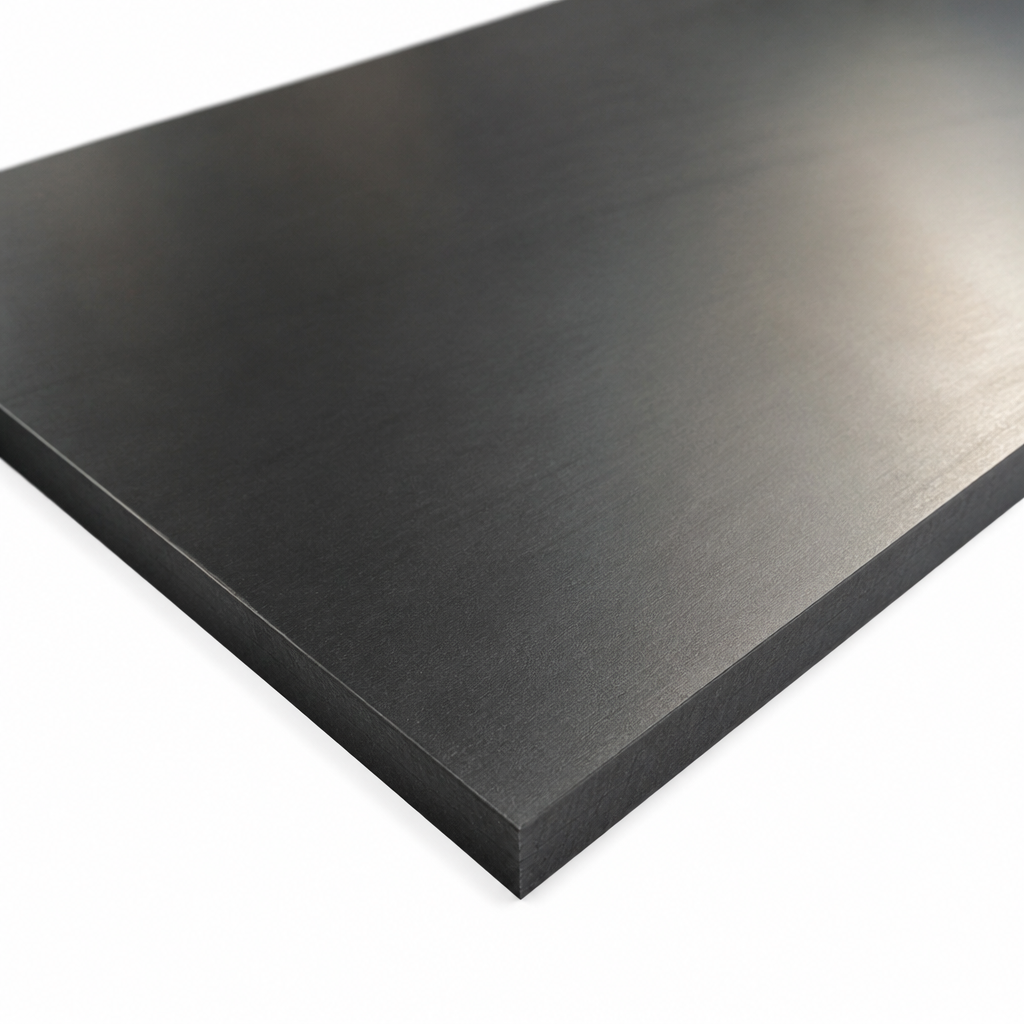

RG1000 Sheet is a versatile Ultra High Molecular Weight Polyethylene made from recycled materials. Ideal for various industrial applications requiring abrasion resistance.
Material Composition
RG1000 Sheet is composed of Ultra High Molecular Weight Polyethylene (UHMWPE) with recycled materials, offering an economical alternative to virgin grades.
Mechanical and Thermal Properties
This sheet exhibits a tensile strength of 22 MPa and a Shore hardness rating of Shore D. It can withstand service temperatures of up to 80°C for both short and long-term use, with a thermal conductivity of 0.43 W/(K*m).
Performance and Advantages
RG1000 is odorless, tasteless, and non-toxic, featuring low moisture absorption and a low coefficient of friction. It is self-lubricating and highly resistant to abrasion, water, moisture, and most chemicals, making it suitable for various applications.
Applications and Limitations
Commonly used for lining chutes, hoppers, and slide-ways in aggressive environments, RG1000 is not suitable for food contact or medical applications. It is ideal for non-FDA compliant uses such as conveyor wear plates and drag conveyor flights.
Machining Characteristics
RG1000 can be machined using high-speed steel tooling with appropriate clearances. While it is easy to mill and drill, care must be taken to avoid distorting the material during clamping.
Specifications
- Tensile strength: 22 MPa
- Shore hardness: Shore D
- Ball indentation hardness: 40 MPa
- Service temperature – short term: 80°C
- Service temperature – long term: 80°C
- Thermal conductivity: 0.43 W/(K*m)
- Available sizes: 2000mm x 1000mm and 3000mm x 1250mm
- Thickness range: 5mm to 80mm
- Available colors: Black and Green
Benefits
- Long-lasting performance in sliding applications
- Cost-effective solution for industrial projects
- High resistance to wear and abrasion
- Low drag and high lifespan for components
Use Cases
- Lining chutes
- Hoppers
- Slide-ways
- Wear blocks
- Conveyor wear plates
- Belt-conveyor wipers and skirts
FAQ
Q: Is RG1000 suitable for food applications?
A: No, RG1000 is not approved for any use in food applications.
Q: Can RG1000 be glued?
A: Bonding RG1000 is difficult due to its low water absorption and wetting properties.
Q: Is RG1000 wear resistant?
A: Yes, RG1000 sheet is highly resistant to abrasion, often outperforming carbon steel.
