Description

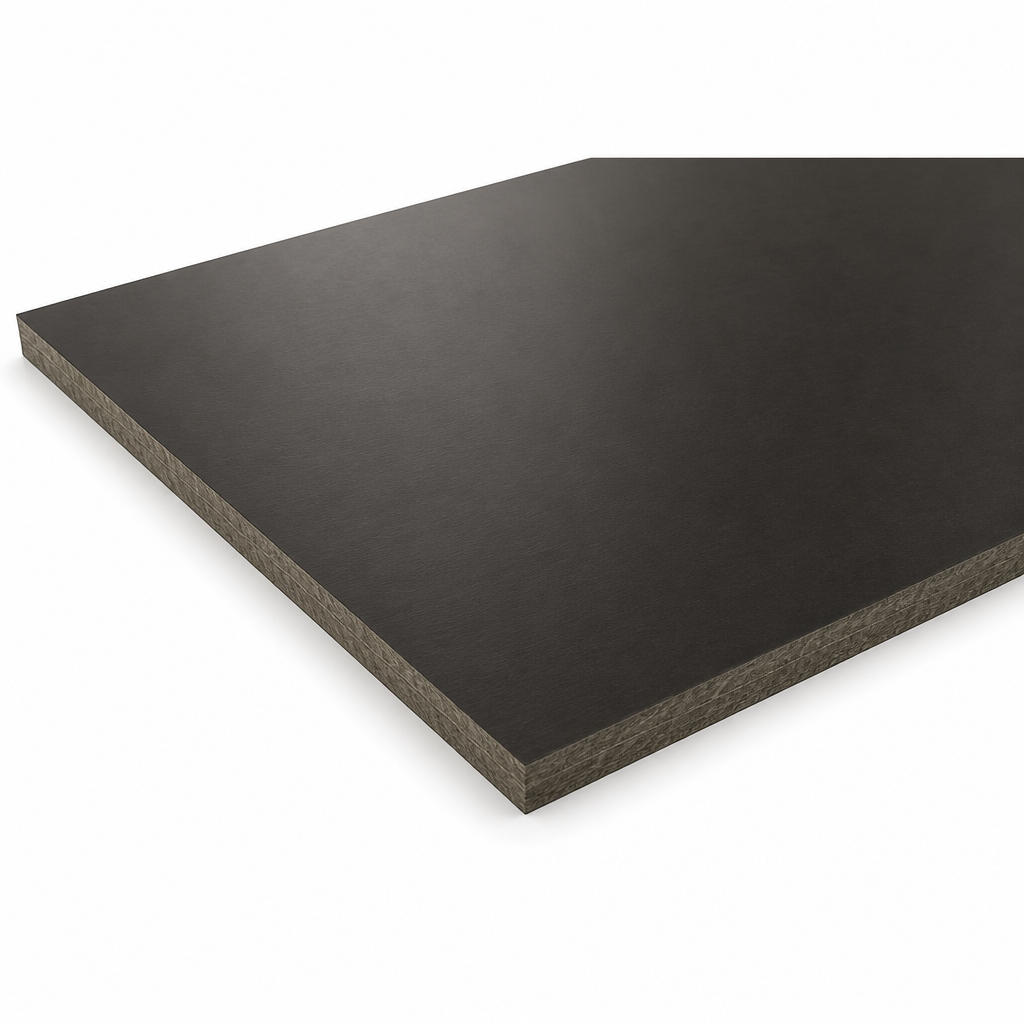

Tufnol Whale Sheet is a durable synthetic resin bonded fabric designed for mechanical engineering. Ideal for wear-resistant components and low voltage applications.
Material Composition
Tufnol Whale Sheet is made from medium weave cotton and phenolic resin laminated plastic. This combination provides excellent dimensional stability, allowing the material to be used in various mechanical engineering applications.
Mechanical and Thermal Properties
The sheet has a density of 1.36 g/cm³ and exhibits impressive mechanical properties, including a tensile strength of 68 MPa and a compressive strength of 310 MPa flatwise. It can withstand continuous temperatures up to 120°C and intermittent temperatures of 130°C.
Applications and Usage
Whale Tufnol Sheet is suitable for a wide range of applications, including gears, spacers, jigs, fixtures, and wear-resistant components. It is particularly effective in low voltage insulation applications.
Advantages and Limitations
This material is lightweight yet rigid, offering good electrical and thermal insulation properties. However, it is not suitable for high voltage applications or direct food contact.
Specifications
- Density: 1.36 g/cm³
- Tensile strength: 68 MPa
- Cross breaking strength: 130 MPa
- Compressive strength (flatwise): 310 MPa
- Compressive strength (edgewise): 200 MPa
- Maximum working temperature – continuous: 120°C
- Maximum working temperature – intermittent: 130°C
- Specific heat: 1.5 kJ/kgK
Benefits
- Safe movement under heavy loads
- Long-lasting durability in various applications
- Reduced corrosion in metal parts
- Minimized creep under load
Use Cases
- electrical insulation
- but at low voltages only
FAQ
Q: What is Tufnol Whale Sheet made of?
A: It is made from medium weave cotton and phenolic resin laminated plastic.
Q: Can Tufnol Whale Sheet be used for food applications?
A: No, it should not be used in any food applications where it may come into direct contact with food products.
