Description

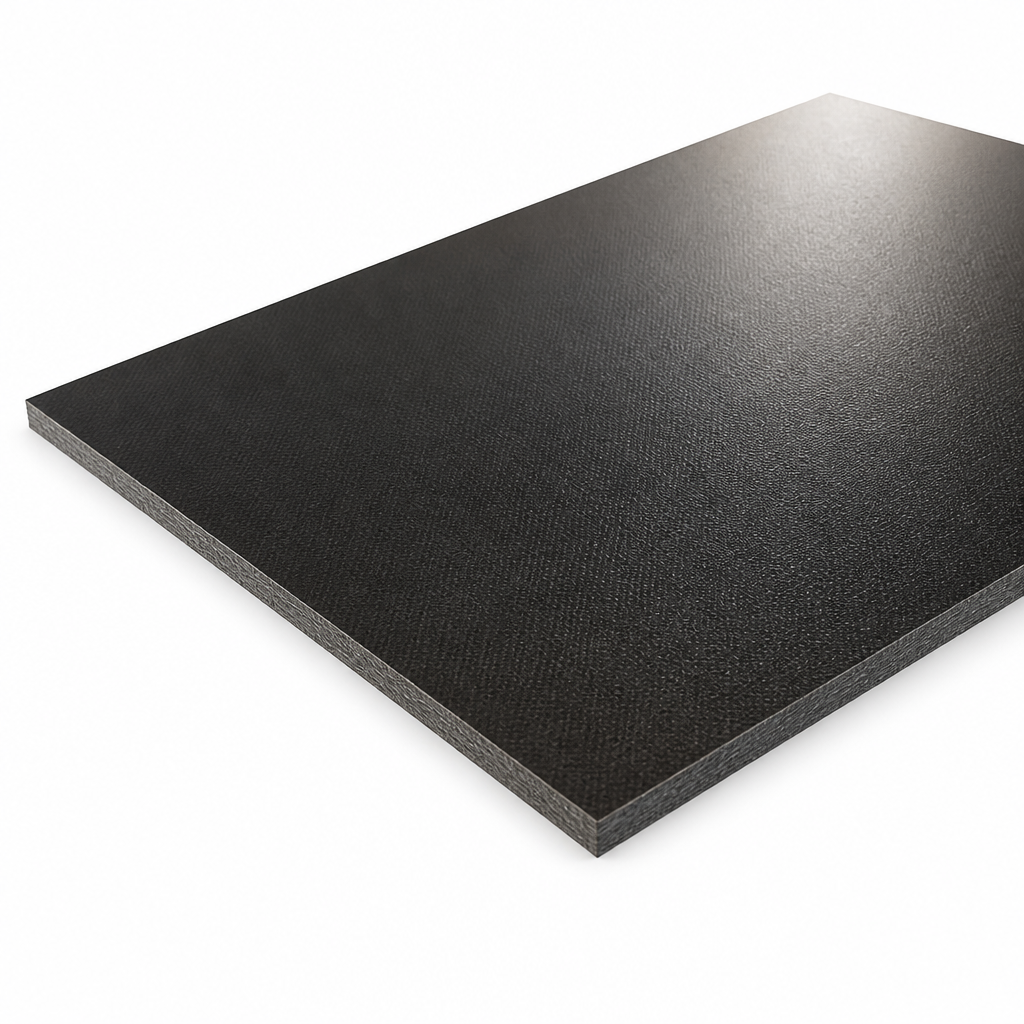

Tufnol Whale Sheet is a durable synthetic resin bonded fabric designed for mechanical engineering applications. It offers excellent strength and wear resistance.
Material Composition
Tufnol Whale Sheet is made from medium weave cotton fabric laminated with phenolic resin, resulting in a strong and stable material suitable for various engineering applications.
Mechanical Properties
The sheet has a density of 1.36 g/cm³, tensile strength of 68 MPa, and compressive strength of up to 310 MPa flatwise. It is designed to withstand heavy loads with minimal creep.
Thermal and Chemical Resistance
With a maximum working temperature of 120°C for continuous use, Tufnol Whale Sheet is resistant to chemicals, oils, solvents, and hydrocarbons, making it ideal for various environments.
Applications

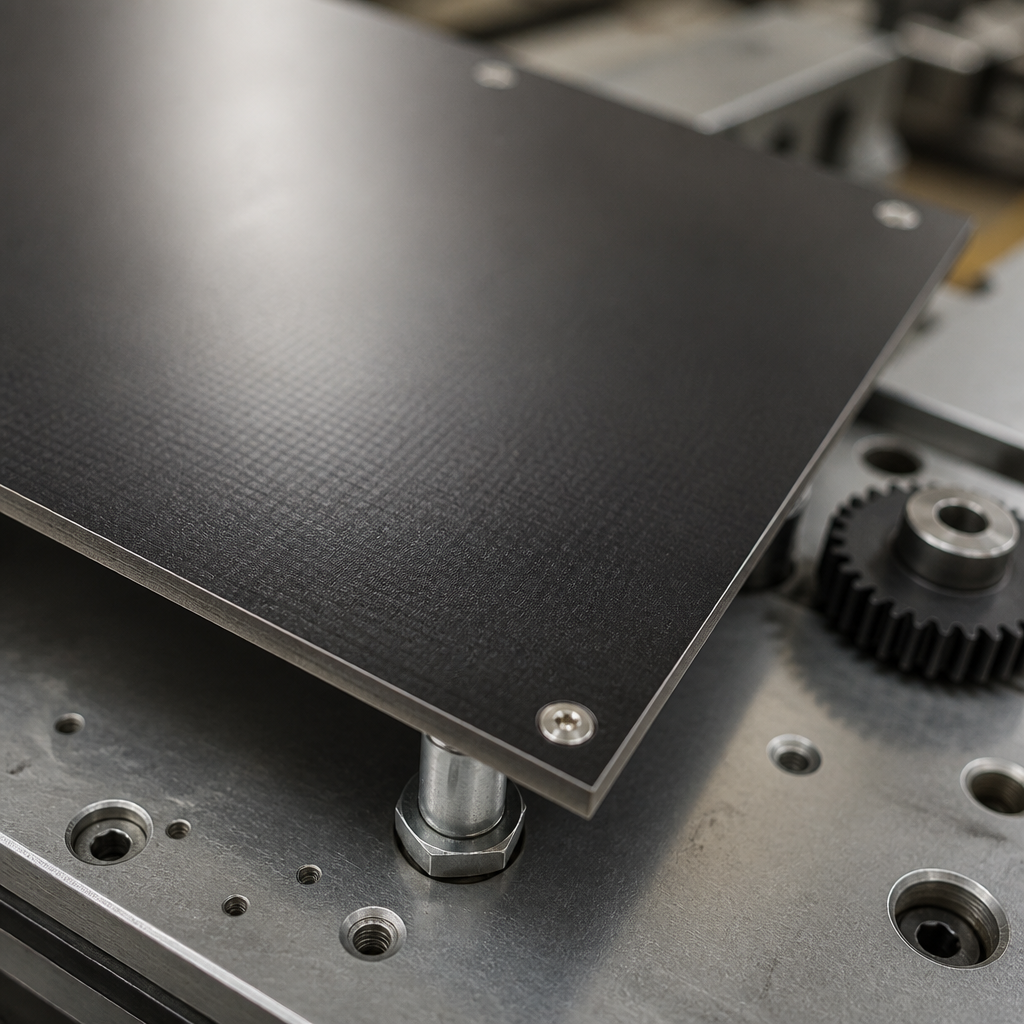

This versatile sheet is commonly used for bearings, bushes, spacers, jigs, fixtures, and low voltage insulation applications. It is not suitable for high voltage electrical insulation.
Specifications
- Density: 1.36 g/cm³
- Tensile strength: 68 MPa
- Cross breaking strength: 130 MPa
- Compressive strength (flatwise): 310 MPa
- Compressive strength (edgewise): 200 MPa
- Maximum working temperature – continuous: 120°C
- Maximum working temperature – intermittent: 130°C
- Specific heat: 1.5 kJ/kgK
Benefits
- Long-lasting and durable under mechanical stress
- Lightweight yet strong, making it easy to handle
- Versatile for various engineering applications
- Resistant to environmental factors, ensuring longevity
Use Cases
- electrical insulation
- but at low voltages only
FAQ
Q: Can Tufnol Whale Sheet be used for food applications?
A: No, Tufnol should not be used in any food applications where it may come into direct contact with food products.
Q: Is Tufnol Whale Sheet suitable for high voltage applications?
A: No, it is not suitable for high voltage insulation.
Q: How well does Tufnol Whale Sheet machine?
A: It machines well using ordinary tools, but can create fine dust and may adhere to drill bits if overheated.
