Description

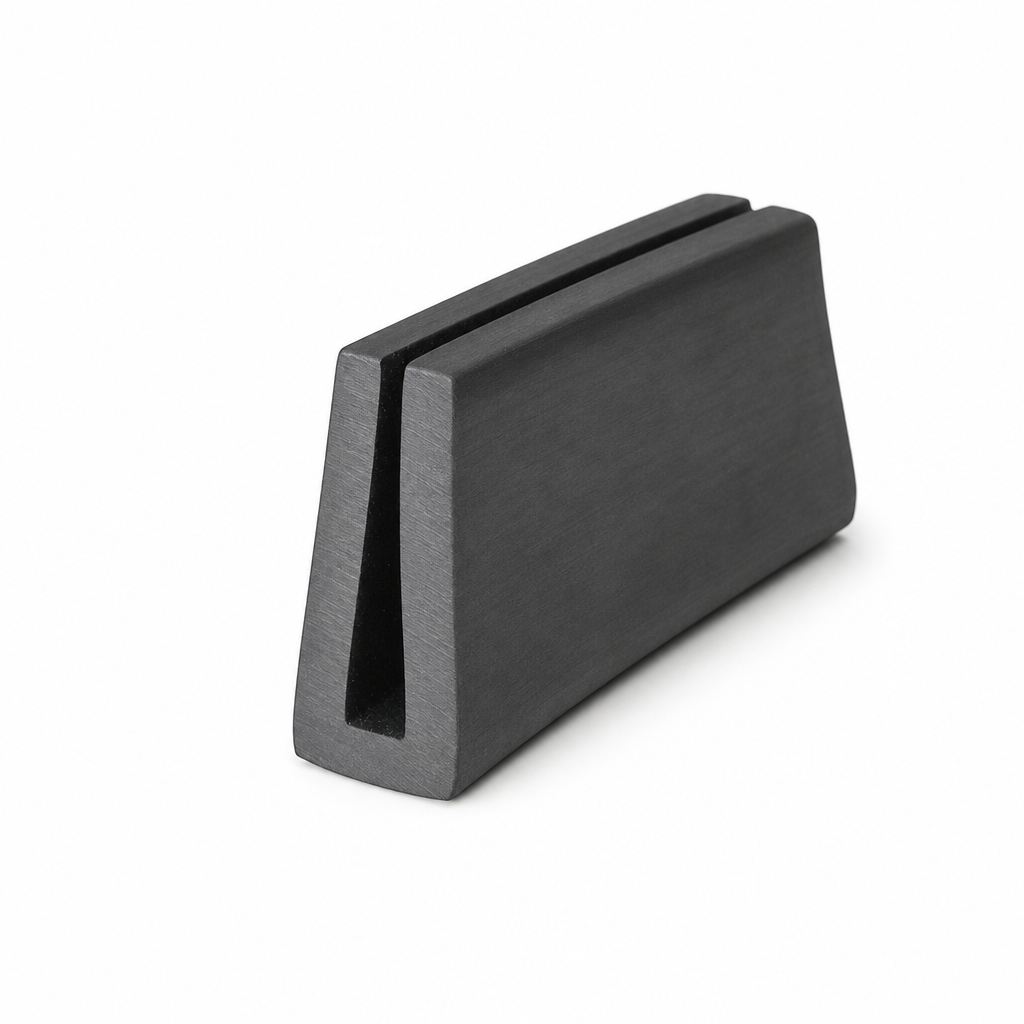

Square U Channel designed for 3mm panel edges.
This robust square U channel is perfect for protecting the edges of various panel materials. With a height of 25mm and a wall thickness of 3.3mm, it provides a reliable solution for creating a secure fit around edges.
Key Features
- Dimensions: 25mm high, 9.6mm wide, and 3.3mm wall thickness.
- Material: Made from high-quality EPDM rubber for durability.
- UV and Ozone Resistance: Offers good resistance to UV rays and ozone exposure.
- Temperature Range: Functional in temperatures from -40°C to +120°C.
- Bonding Options: Can be bonded for secure attachment using suitable adhesives.
Applications
- Edge Protection: Ideal for protecting the edges of metal, wooden, plastic, or fibreglass panels.

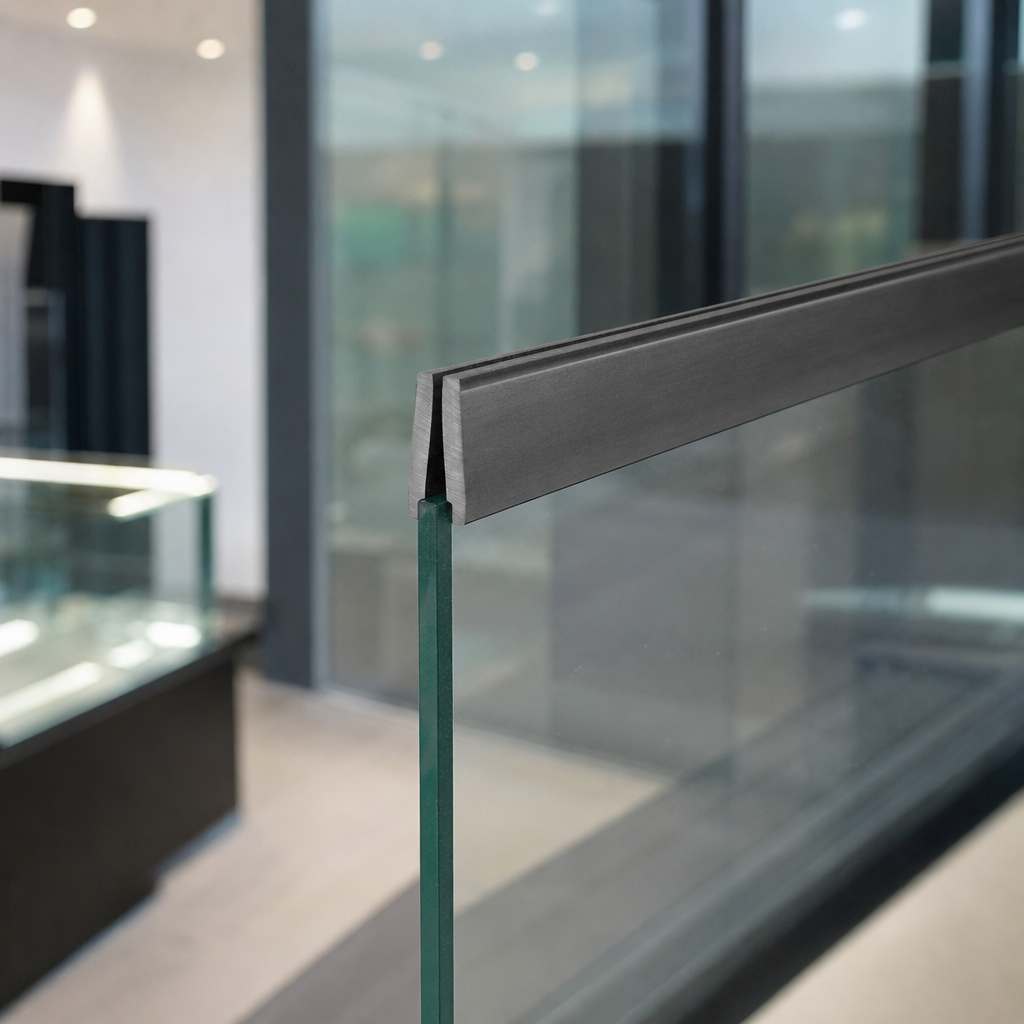

- Glass Sealing: Commonly used to seal around glass in aluminium window channels.
- Panel Finishing: Provides a neat finish for various panel applications.
Frequently Asked Questions
Q?
What is the best adhesive to use with this U channel?
A. We recommend using S136 (Polyurethane), S137 (white Silicone), or S138 (clear Silicone) for bonding.
Q?
Is this U channel suitable for outdoor use?
A. Yes, it has good UV resistance, making it suitable for outdoor applications.
Q?
Can this U channel be used with oil or fuel?
A. No, it is not recommended for environments that may come into contact with oil or fuel.
Q?
What is the minimum order quantity for this product?
A. This product is supplied in coils of 50 metres, but you can order smaller lengths.
Q?
How is this product supplied?
A. It is supplied in 50 metre coils, with additional lengths provided as needed.
Q?
What is the hardness rating of the EPDM used?
A. The EPDM rubber has a hardness of approximately 70° Shore A.
