Rubber & Steel Dock Bumper 760 x 270 x 110mm


Price
Sale price £663.95 | (Inc. VAT)

Description

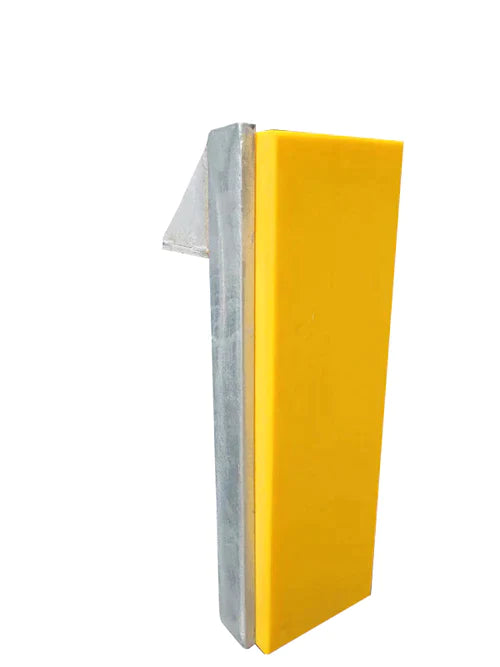

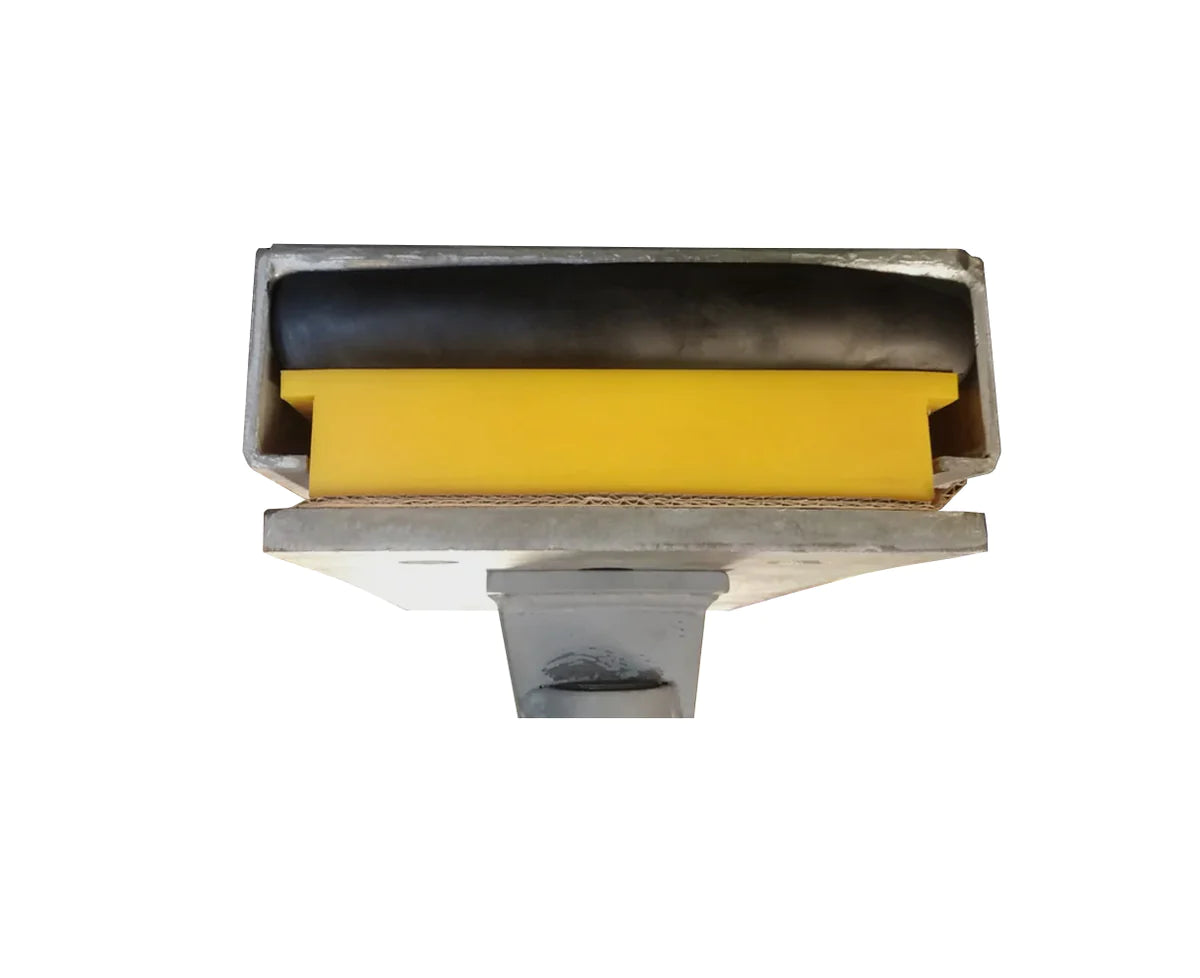

This Dock Bumpers 760x270x110 has a large impact area with no holes in the UHMWPE face plate for the back of the truck to snag on. The 50mm thick face can slide freely up and down in its steel cradle back plate.
The 2 middle photos show this part used in conjunction with part SN061 Angle Bracket to help protect against trailers that over-ride the dock leveller.
Compresses 11mm under 15 tonne loads.

PRODUCT INFORMATION

  • 760mm by 270mm by 110mm
  • Weight 46kg
  • Free fixings included in it.

Benefits of using a This Dock Bumpers 465x280x160

  • Cost-effective solution to protect your building from damage.

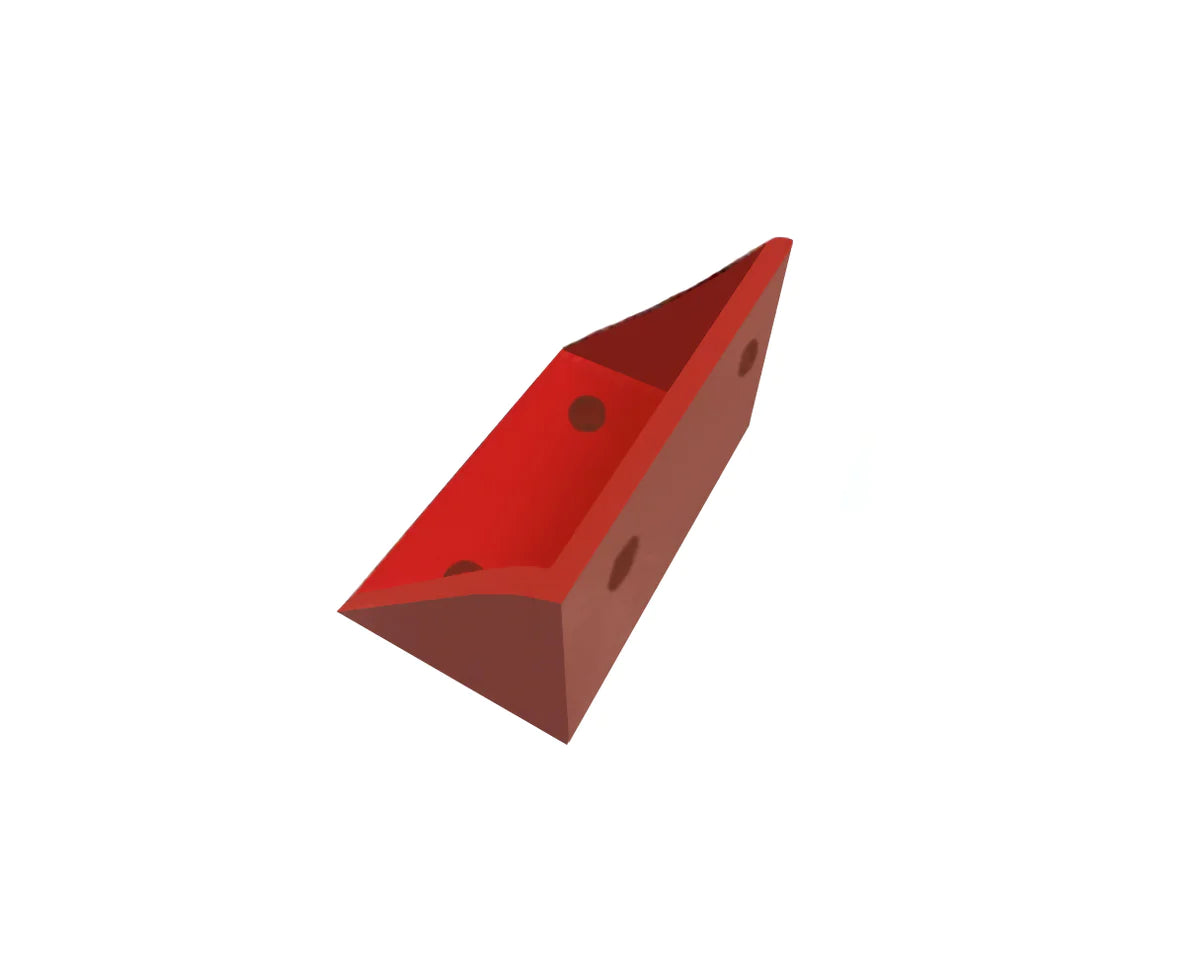

01. SN061 Angle Bracket:

This angle bracket allows standard backplate and docks bumper assemblies to be fixed 150mm above the dock height to prevent vehicles over-riding. Brackets are finished in red (RAL 3020) powder coat finish. Two fixing holes are M24 threaded and two are 26mm dia clear holes.

  • Approx Dims: 250 x 150 x 150 mm
  • Weight: 9.5 kg

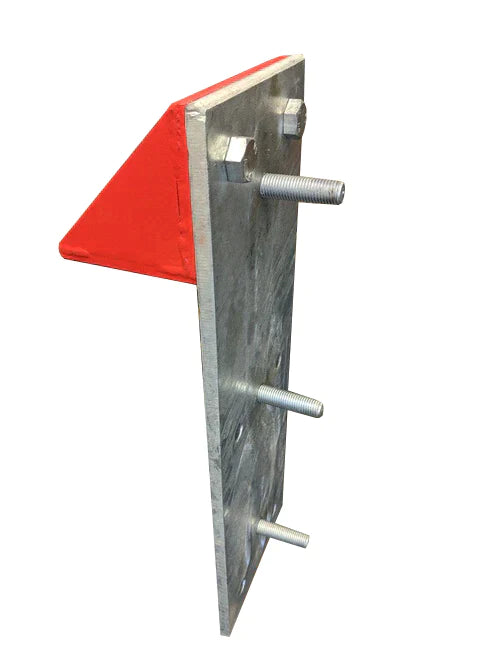

02. SN057 Back Plate:

The SN057 is the backing plate used in our SN023 Dock Bumper.

This backplate has six fixing holes... two at the top are 25mm dia to allow for M24 bolts to fix to an above dock angle bracket (if required), two half way down and two at the bottom 20mm dia.

  • Approx Dims: 760 x 270 x 85 mm
  • Weight: 26 kg
