Description

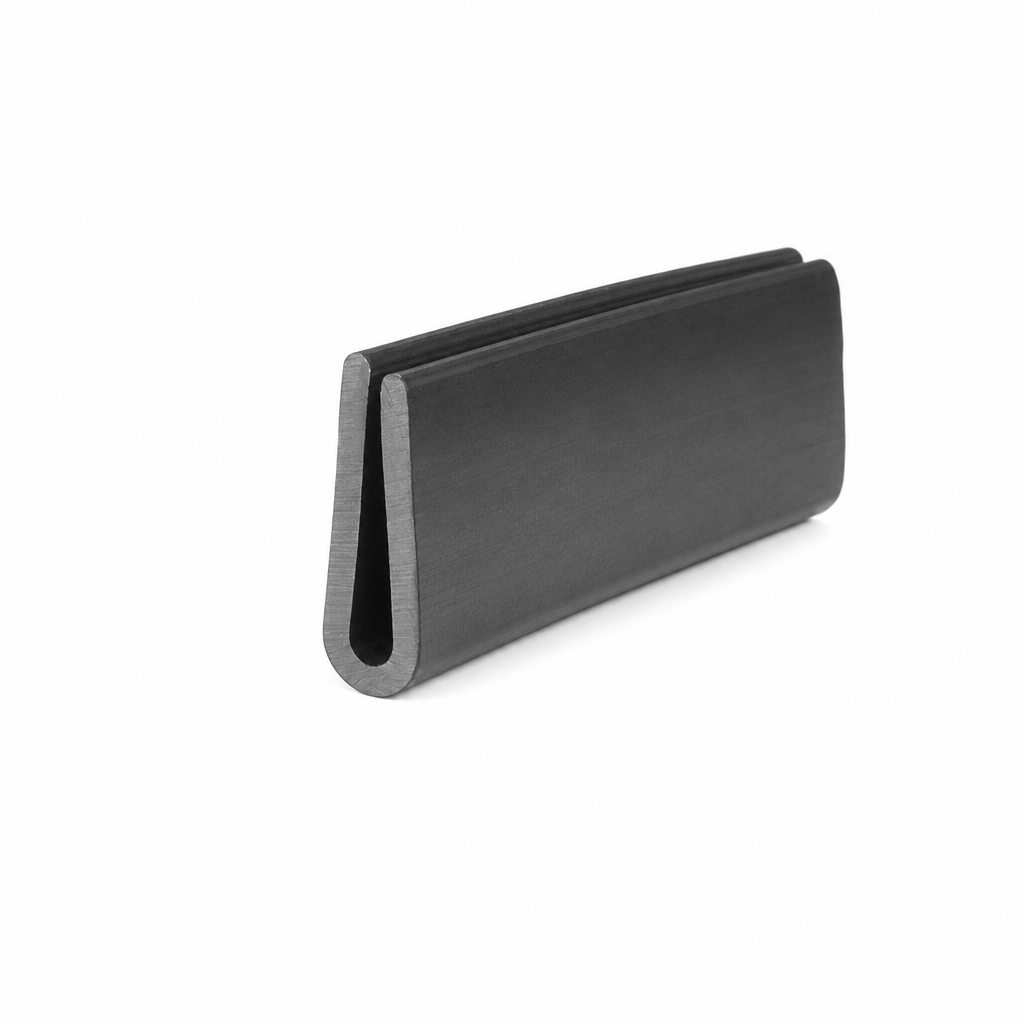

High-quality rounded U channel for panel edge protection.

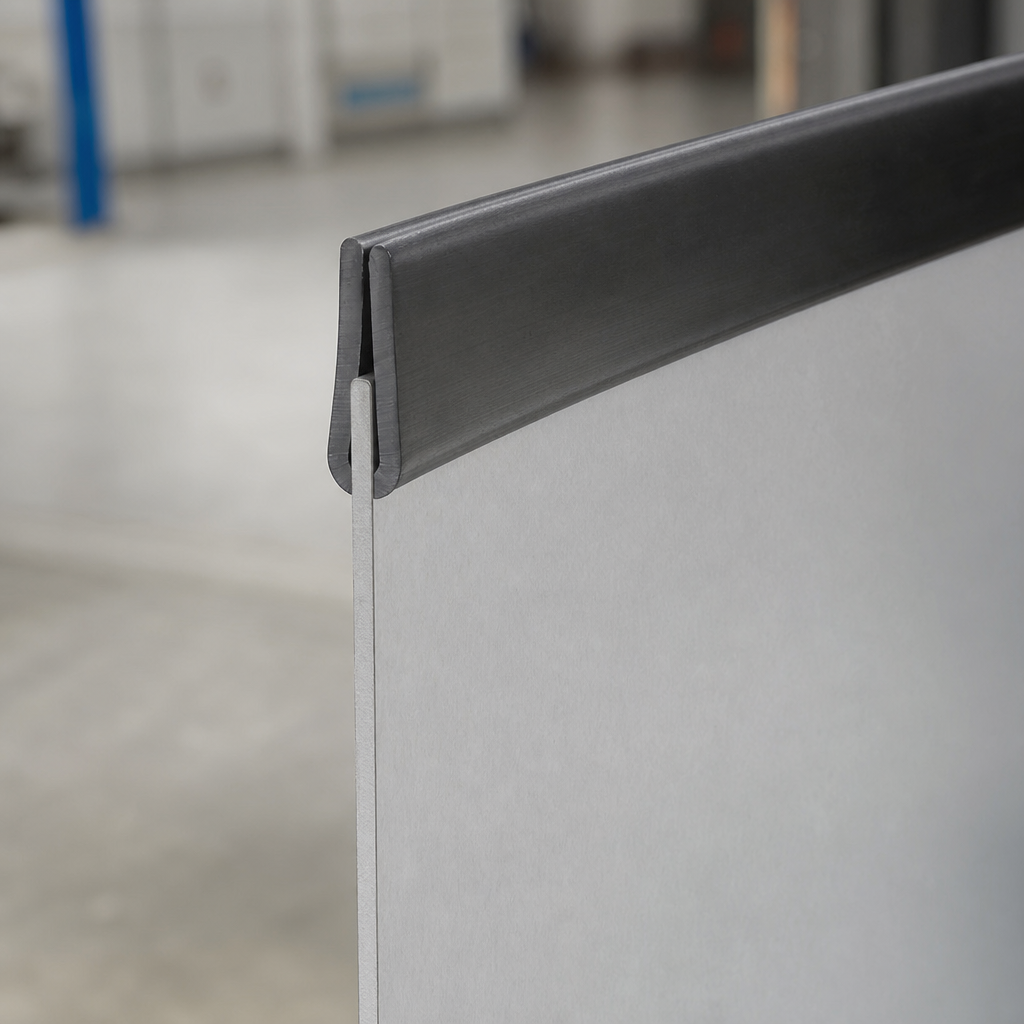

This rounded U channel is specifically designed to fit panel edges measuring between 1.5mm and 2.5mm. With a height of 17mm and a width of 6mm, it offers effective edge protection for various materials such as metal, wood, plastic, or fibreglass.
Key Features
- Material: Made from durable EPDM rubber, providing excellent resistance to UV, air, and ozone.
- Dimensions: Height of 17mm, width of 6mm, and wall thickness of 1.6mm for optimal performance.
- Temperature Range: Operates effectively between -40°C to +120°C.
- Coil Length: Available in 50 metre coils, allowing for custom lengths to suit your needs.
Applications
- Edge Protection: Ideal for protecting edges on a variety of panel materials in both indoor and outdoor applications.
- Door Sealing: Can be used as an edge protector on doors and glass surfaces.
- Bonding: Easily bonded onto edges using recommended adhesives for secure installation.
Frequently Asked Questions
Q? What is the wall thickness of this U channel?
A. The wall thickness is 1.6mm.
Q? Can this U channel be used outdoors?
A. Yes, it is suitable for both indoor and outdoor environments.
Q? What materials can this U channel protect?
A. It can protect edges on metal, wooden, plastic, or fibreglass panels.
Q? How do I bond this U channel?
A. We recommend using S136 (Polyurethane), S137 (white Silicone), or S138 (clear Silicone) adhesives.
Q? What is the hardness of the EPDM material?
A. The hardness is approximately 70° Shore A, similar to car tyre rubber.
Q? Is this U channel self-gripping?
A. No, it is not self-gripping but can be securely bonded in place.
