Description
Protect your panel edges with this versatile rounded U channel.

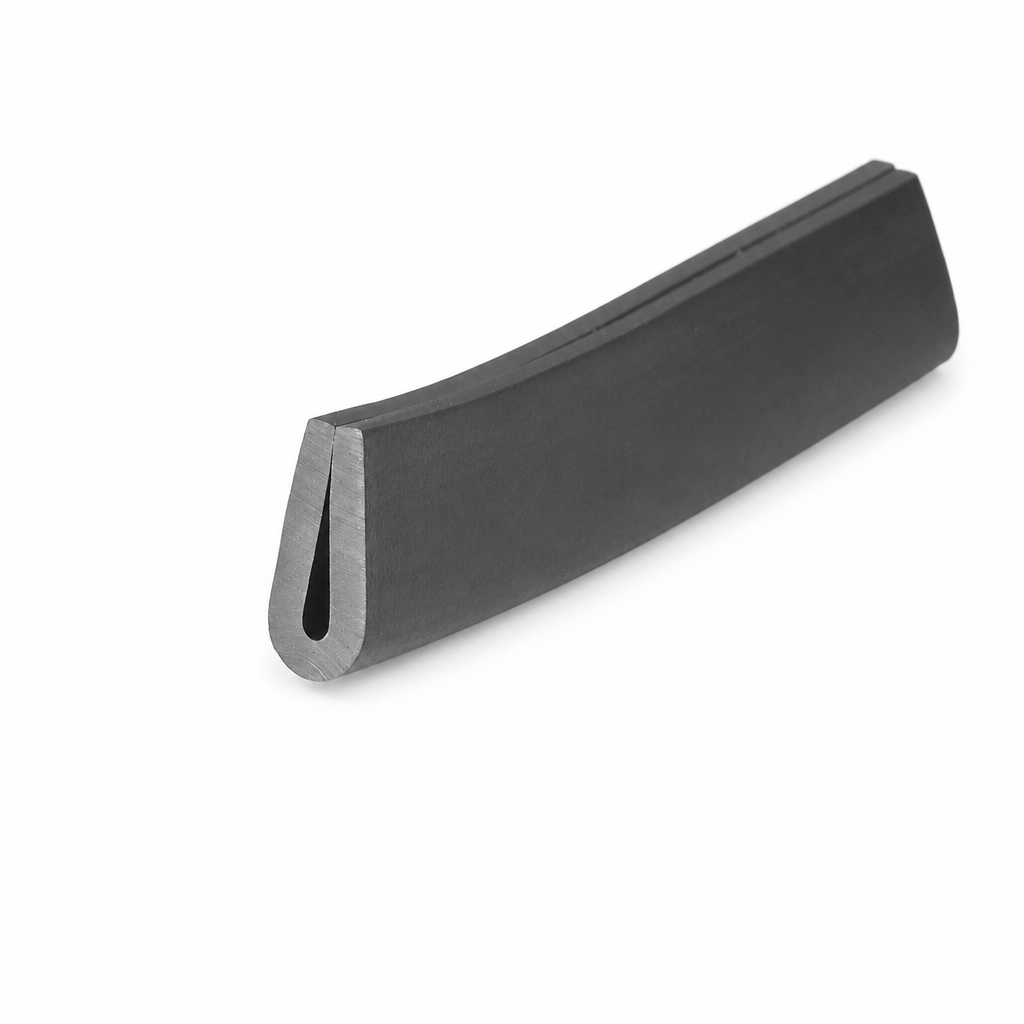

This rounded U channel is specifically designed to fit onto panel edges ranging from 1mm to 2mm. With a height of 15mm and a width of 8mm, it features a wall thickness of 2.8mm, making it ideal for a variety of applications.
Key Features
- Profile Design: Rounded top for enhanced edge protection.
- Material Quality: Made from high-quality EPDM rubber, resistant to chemicals and UV.
- Temperature Range: Operates effectively between -40°C to +120°C.
- Dimension Details: 15mm high, 8mm wide, with a wall thickness of 2.8mm.
- Coil Length: Supplied in 50 metre coils for convenience.
Applications

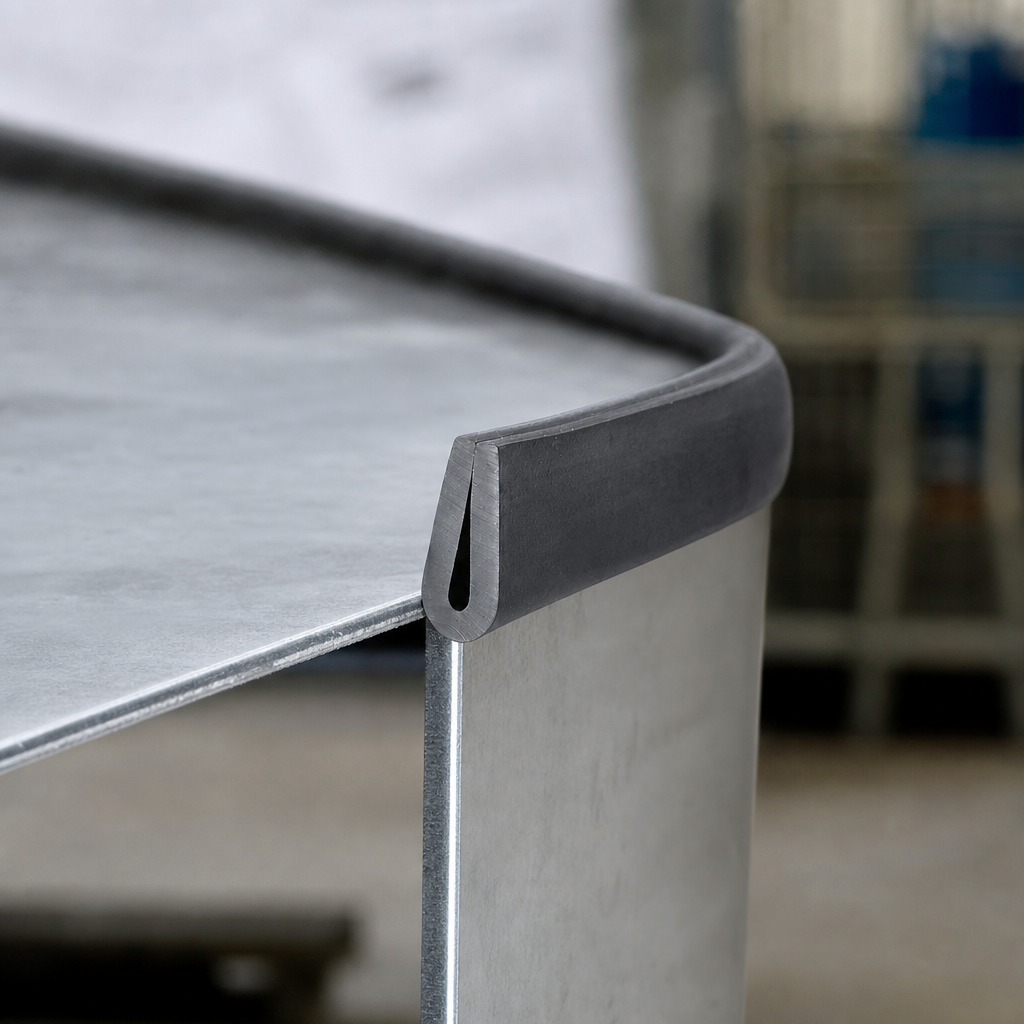

- Edge Protection: Ideal for protecting edges on metal, wood, plastic, or fibreglass panels.
- Indoor & Outdoor Use: Suitable for applications on doors and glass in various environments.
- Bonding Options: Can be bonded using polyurethane or silicone adhesives for secure installation.
Frequently Asked Questions
Q? What thickness of panel does this U channel fit?
A. This U channel is designed to fit panels with a thickness of 1mm to 2mm.
Q? What materials can this U channel be used on?
A. It can be used on metal, wooden, plastic, or fibreglass panels.
Q? Is this U channel self-gripping?
A. No, it is not self-gripping and must be bonded to the edge.
Q? What adhesive do you recommend?
A. We recommend using S136 (Polyurethane), S137 (white Silicone), or S138 (clear Silicone).
Q? What is the operating temperature range?
A. The U channel operates effectively between -40°C to +120°C.
Q? How is this product supplied?
A. It is supplied in 50 metre coils.
