Description

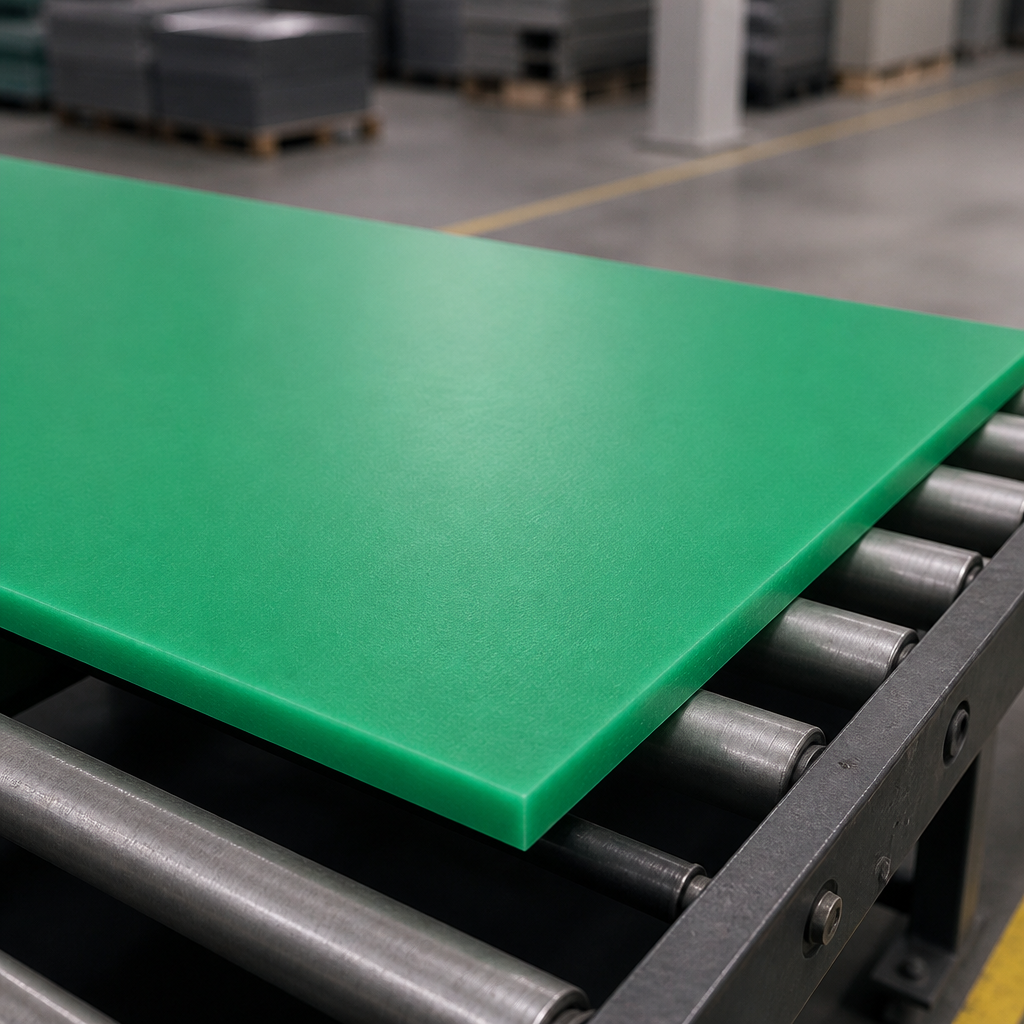

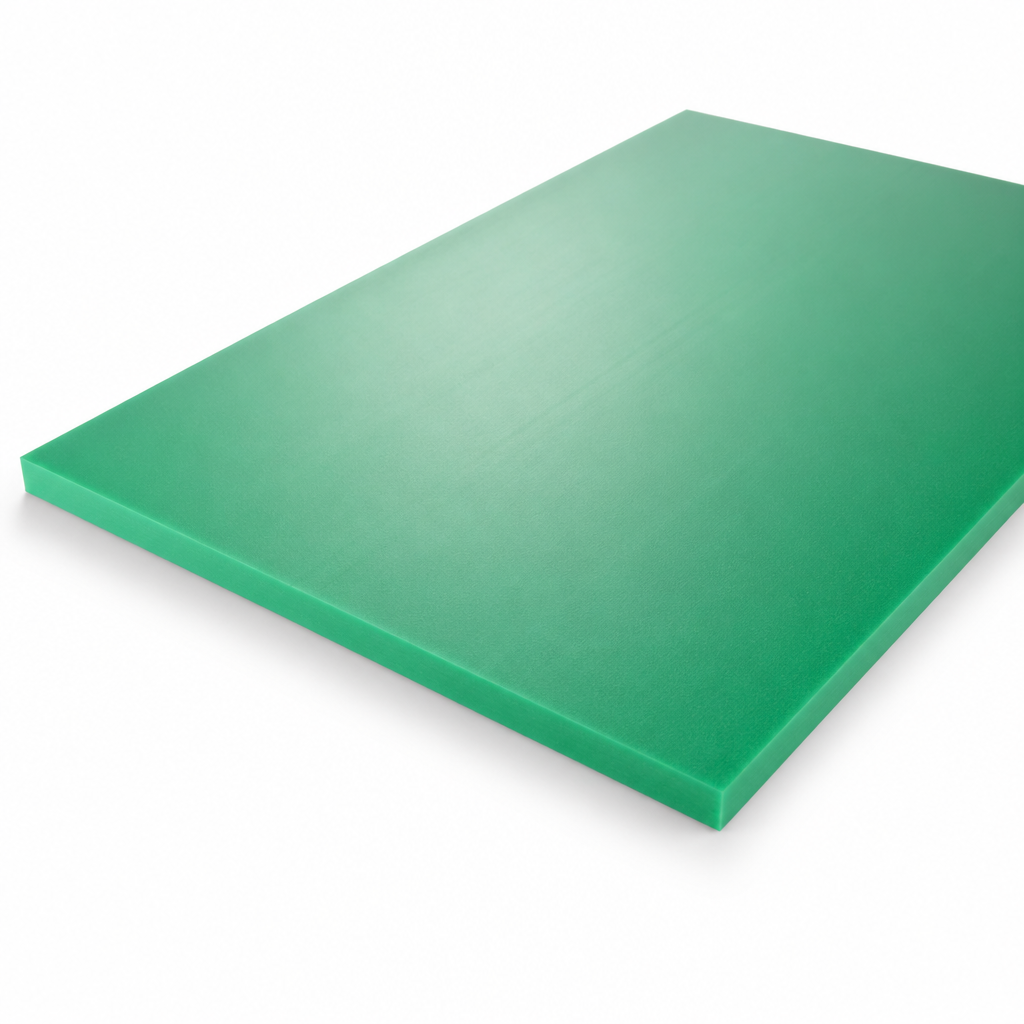

The RG1000 Green Sheet is made from ultra high molecular weight polyethylene with recycled material. It is ideal for use in various industrial applications due to its excellent abrasion resistance and low moisture absorption.
Material Properties
The RG1000 sheet is constructed from ultra high molecular weight polyethylene (UHMWPE) that incorporates recycled materials. This material is known for its durability and resistance to wear, making it suitable for various applications.
Mechanical and Thermal Properties
This sheet has a tensile strength of 22 MPa and a Shore D hardness. It can withstand service temperatures of up to 80°C for both short and long-term use. Additionally, it has a thermal conductivity of 0.43 W/(K*m).
Advantages and Disadvantages
RG1000 is odorless, tasteless, and non-toxic, making it more economical than virgin grades. It features low moisture absorption and a low coefficient of friction, providing self-lubricating properties. However, it is not suitable for high tensile applications and is not FDA approved for food contact.
Applications
This sheet is commonly used for lining chutes, hoppers, slide-ways, and wear blocks in aggressive environments. It is also effective in marine applications due to its low moisture absorption.
Machining Characteristics
RG1000 can be machined into various shapes and forms, offering versatility in applications. It is recommended to use high-speed steel tooling for machining, and care should be taken to avoid distorting the material during clamping.
Specifications
- Tensile strength: 22 MPa
- Shore hardness: Shore D
- Ball indentation hardness: 40 MPa
- Service temperature – short term: 80°C
- Service temperature – long term: 80°C
- Thermal conductivity: 0.43 W/(K*m)
- Available sizes: 2000mm x 1000mm and 3000mm x 1250mm
- Thickness range: 5mm to 80mm
- Available colors: black and green
Benefits
- Long lifespan due to low drag and friction
- Excellent wear and abrasion resistance
- Suitable for various industrial applications
- Cost-effective alternative to virgin UHMWPE
Use Cases
- Lining chutes
- Hoppers
- Slide-ways
- Wear blocks
- Forest-product drag conveyor flights
- Conveyor-chain wear plates
- Belt-conveyor wipers and skirts
FAQ
Q: Is RG1000 suitable for food applications?
A: No, RG1000 is not approved for any use in food applications.
Q: Can RG1000 be glued?
A: Bonding RG1000 is difficult due to its low water absorption and wetting properties.
Q: Is RG1000 wear resistant?
A: Yes, RG1000 sheet is highly resistant to abrasion, often outperforming carbon steel.
