Cut to size calculator
Prices include VAT and cutting. Several pieces of the same size are cut from one piece of stock where they fit, allowing 4mm for the saw blade between pieces; the first piece is cut free and each additional piece is £1.60. Cut pieces are made to order and have a sawn finish. Delivery is calculated at checkout. For shapes, holes or large quantities, request a quote or call 01744 520110.
Description

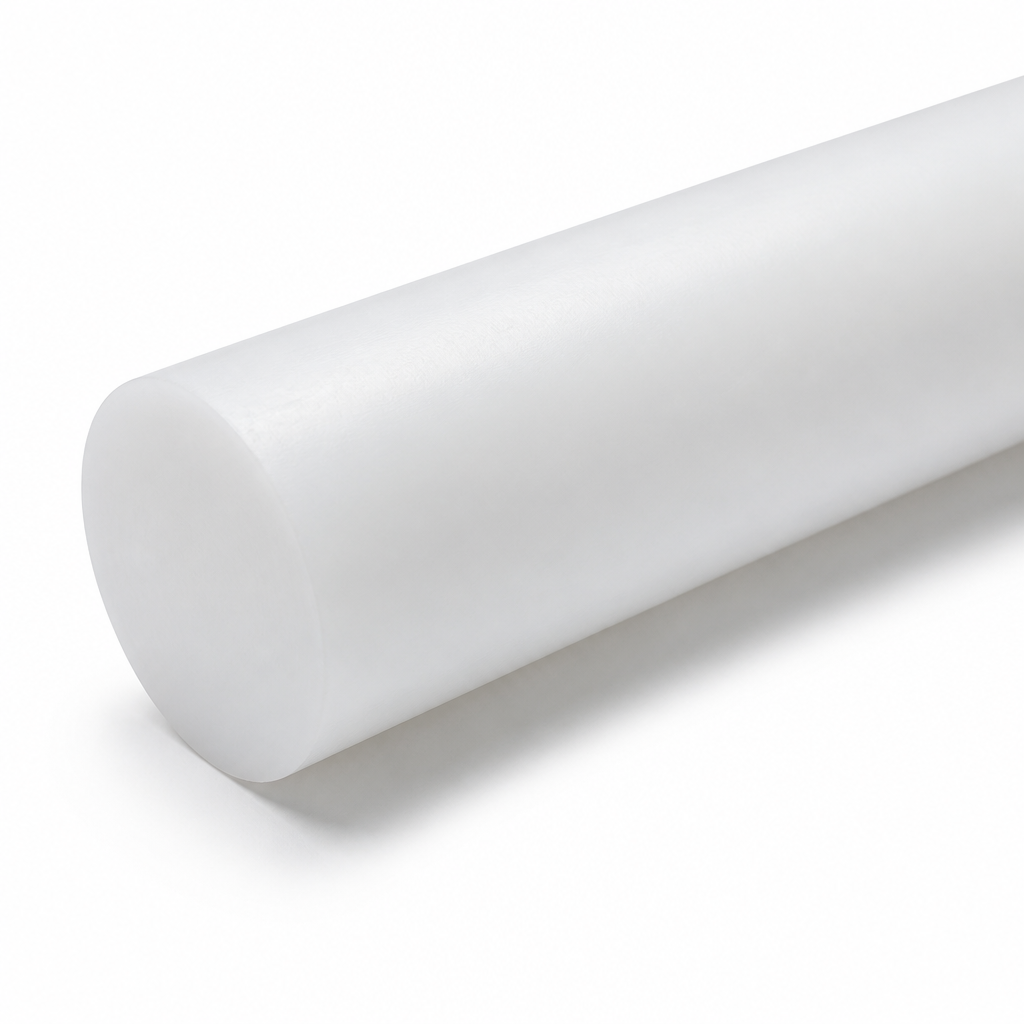

PTFE Rod is a versatile material known for its low friction and high chemical resistance. Ideal for various applications including seals and bearings.
Material Properties
PTFE, or Polyetrafluorethylene, is a thermally stable plastic with a melting point of 327°C. It exhibits outstanding electrical insulation properties and minimal moisture absorption.
Performance Characteristics
PTFE Rod demonstrates exceptional resistance to extreme temperatures, ranging from -260°C to +260°C, and can withstand short periods at +300°C. Its low coefficient of friction makes it ideal for applications requiring sliding action.
Applications
Common uses for PTFE Rod include plain bearings, gears, seals, and cryogenic applications. Its unique properties also make it suitable for fabricating long-life electrets.
Machining and Bonding

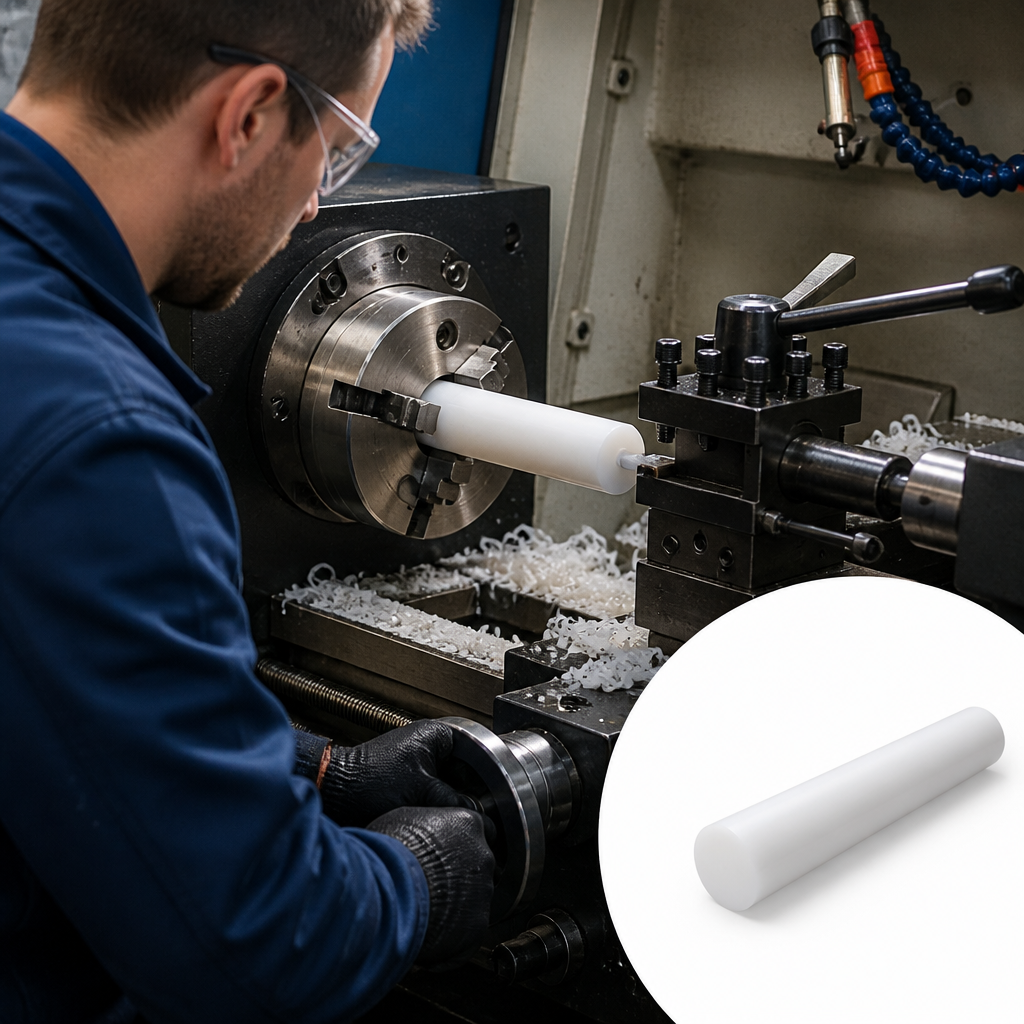

Due to its softness, PTFE can be challenging to machine. Proper surface preparation is necessary for bonding, as it requires treatments like flame or plasma before adhesives can be applied.
Safety Considerations
PTFE can release toxic fumes when heated above 400°C. Care should be taken to avoid exposure to high temperatures during machining.
Specifications
- Material: Polyetrafluorethylene (PTFE)
- Melting Point: 327°C
- Shore Hardness: Shore D
- Thermal Conductivity: 0.20 J(g*K)
- Diameter Range: 4mm to 120mm
- Color: White (natural)
- Temperature Range: -260°C to +260°C (+300°C for short periods)
Benefits
- Exceptional resistance to high and low temperatures
- Suitable for low friction applications
- Long-lasting and durable material
- Food approved and non-toxic
Use Cases
- Plain bearings
- Gears
- Seals
- Cryogenic applications
FAQ
Q: Can PTFE Rod be used in food applications?
A: Yes, PTFE is food approved and commonly used in cookware.
Q: Is PTFE Rod wear resistant?
A: Its wear resistance varies depending on the abrasiveness and load; it may be compromised under high conditions.
Q: Can PTFE Rod be glued or bonded?
A: Yes, but it requires surface preparation before bonding.
All sizes & prices
88 sizes · prices include VAT · tap a price to select that size
Need a size that isn't listed? We cut to order. Request a quote or call 01744 520110.
