Description

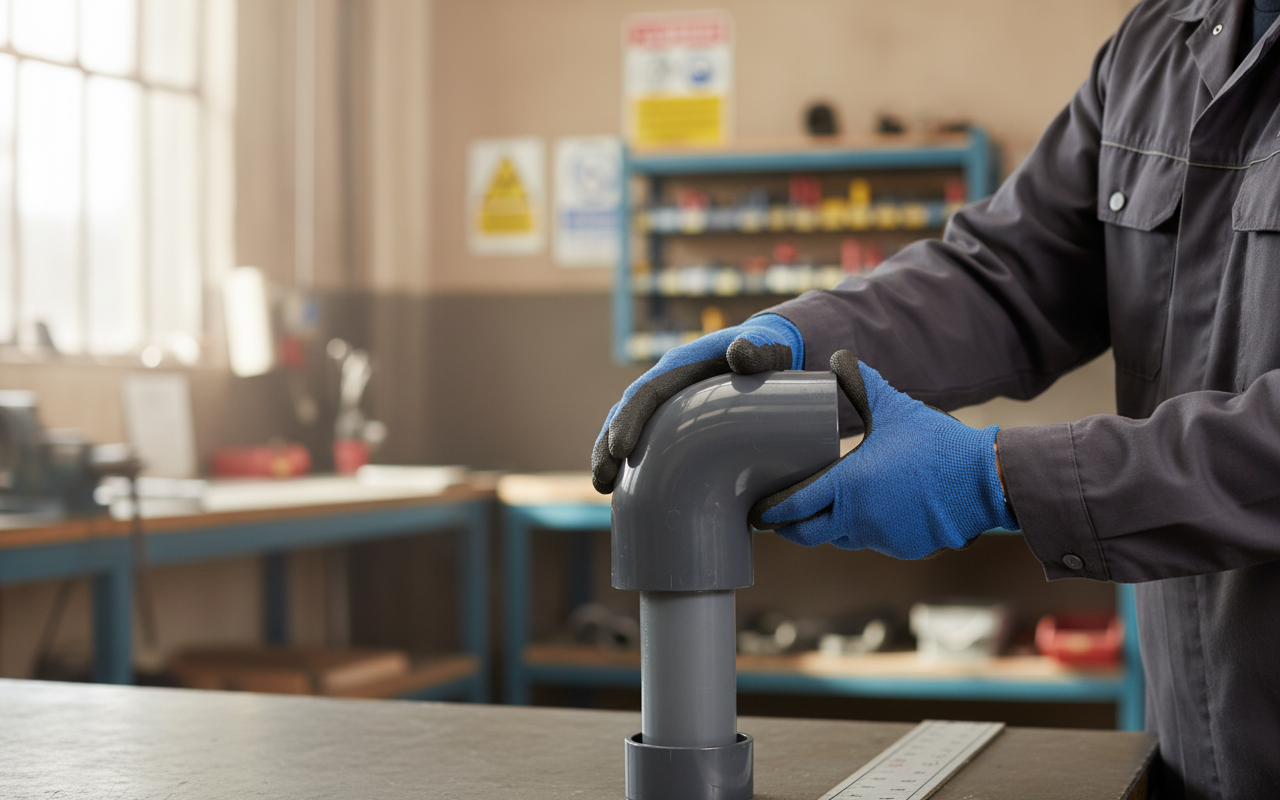

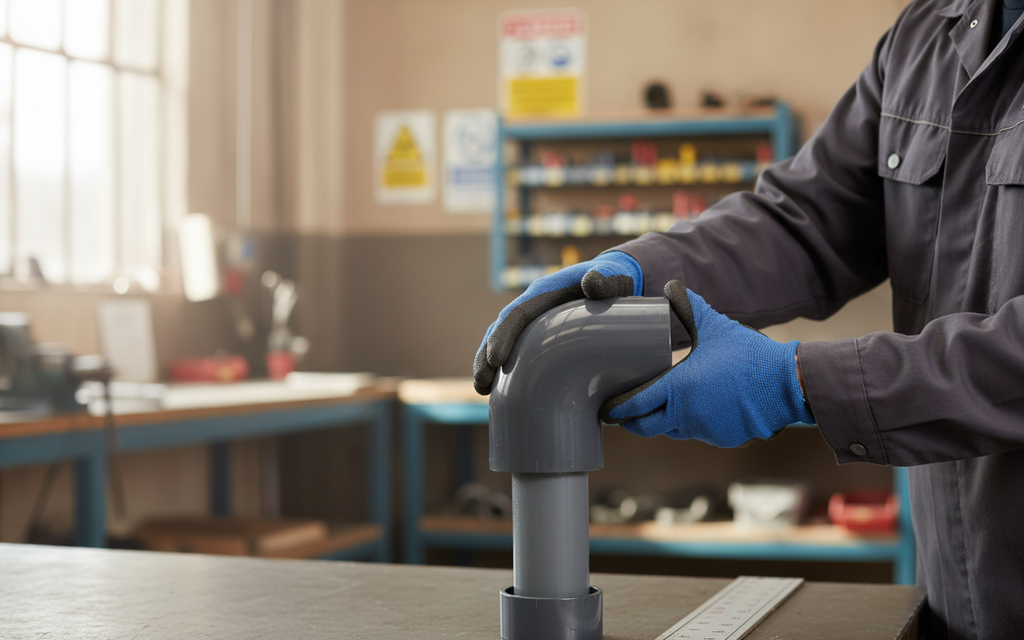

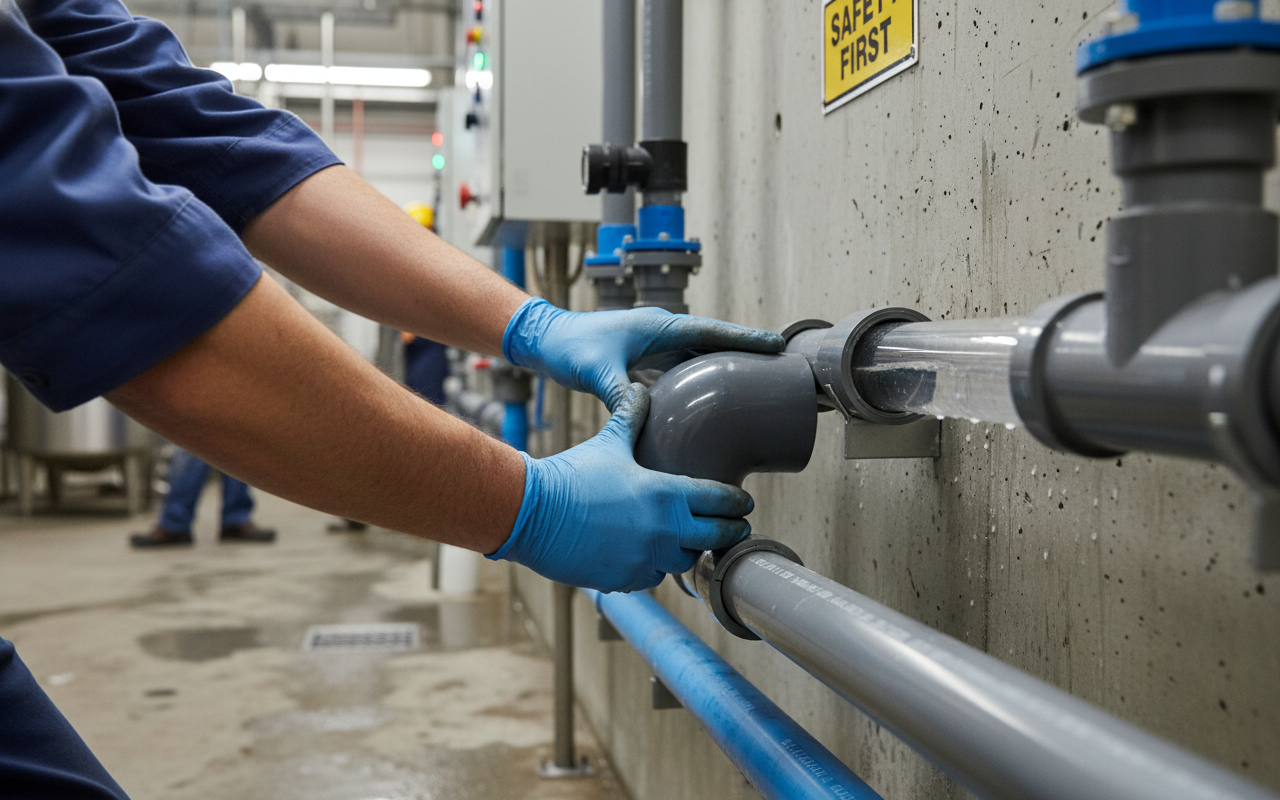

This premium PVCu 90° plain elbow is a high-quality metric pipe fitting designed to create neat, right-angle changes of direction in rigid plastic pipework. Manufactured from robust unplasticised PVC (PVCu), it offers a reliable, long-lasting solution for new installations, upgrades and repairs alike.
Lightweight, corrosion resistant and compliant for use with potable (drinking) water, this elbow is ideal for water supply lines, process pipework, irrigation systems and a wide range of industrial, commercial and domestic applications. Available in a range of common metric sizes, it integrates easily into existing PVCu pipe systems.
Product Features
- 90° plain elbow fitting for creating precise right-angle changes of direction in rigid PVCu pipe runs.
- Metric sizes available from 20mm, 25mm, 32mm, 40mm and 50mm, plus a further selection of larger and intermediate diameters.
- Plain socket ends designed for solvent weld jointing to compatible PVCu pressure or distribution pipe.
- Manufactured from durable PVCu for excellent rigidity and long service life.
- Corrosion and chemical resistant material suitable for many water treatment and process applications.
- Lightweight construction for easier handling, transportation and installation compared with metal fittings.
- Suitable for use in systems carrying potable water, when installed to relevant standards and guidelines.
Key Features and Benefits
- Provides a clean 90° change in direction without kinking or stressing the pipe, helping to maintain flow integrity.
- Potable water compliant material makes it suitable for mains, distribution and drinking water installations.
- Corrosion-free performance reduces maintenance requirements and extends the life of the system compared with metal alternatives.
- Solvent weld jointing delivers strong, leak-resistant connections for dependable pressure performance.
- Wide choice of metric sizes allows easy integration into new and existing PVCu pipework layouts.
- Lightweight design speeds up on-site handling and installation, helping to reduce labour time and cost.
Specifications
| Specification | Detail |
|---|---|
| Product type | 90° plain elbow PVCu metric pipe fitting |
| Available sizes (metric) | 20mm, 25mm, 32mm, 40mm, 50mm (plus additional metric sizes in the same range) |
| Material | Unplasticised PVC (PVCu), suitable for pressure pipework |
| Connection type | Plain solvent weld sockets at both ends |
| Colour | Typically mid to dark grey PVCu finish |
| Service suitability | Potable water, cold water distribution and compatible process fluids (within recommended temperature and pressure limits) |
Applications and Ideal Uses
This PVCu 90° elbow is suitable for a wide variety of water and fluid handling systems in domestic, commercial and industrial environments.
- Potable water distribution and mains supply pipework.
- Building services, plant rooms and mechanical services pipe runs.
- Irrigation, horticultural and agricultural watering systems.
- Water treatment, filtration and circulation pipework.
- General industrial and light chemical process installations compatible with PVCu.
Frequently Asked Questions
How do I connect this PVCu elbow to my existing pipework?
This elbow has plain sockets designed for solvent weld jointing. Ensure the pipe and fitting are clean and dry, then use a suitable PVCu cleaner and solvent cement following the manufacturer’s instructions. Insert the pipe fully into the socket and allow the joint to cure for the recommended time before pressurising the system.
Is this 90° elbow suitable for hot water systems?
This fitting is primarily intended for cold and ambient temperature water, including potable water, within the recommended pressure and temperature limits for PVCu. It is generally not suitable for continuous high-temperature hot water or steam. Always check the system design parameters against the PVCu temperature and pressure ratings.
How do I choose the correct size elbow for my installation?
Select the elbow size to match the outside diameter and nominal bore of your existing metric PVCu pipework, for example 20mm, 25mm, 32mm, 40mm or 50mm. The pipe should fit fully into the solvent weld sockets. If you are unsure, measure your pipe and refer to standard PVCu metric sizing or consult a qualified installer.
