Description
Description
The Premium Hygienic Cladding Orange Sheet is designed to offer a quick and easy installation solution for hygienic cladding with low ongoing maintenance costs. This product boasts excellent fire performance (BS476/6 - Class 0) and high chemical resistance, making it ideal for various applications. It can be easily fabricated onsite, providing versatility in use.

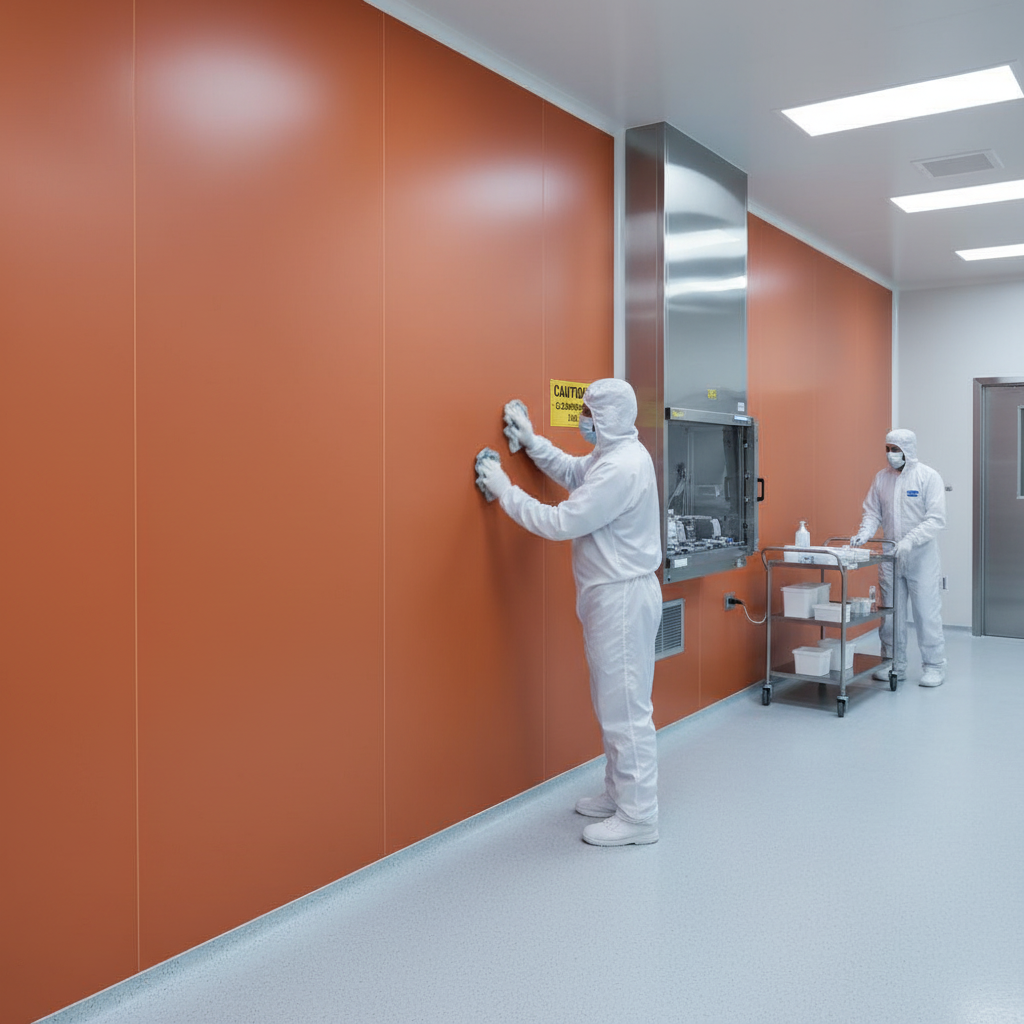

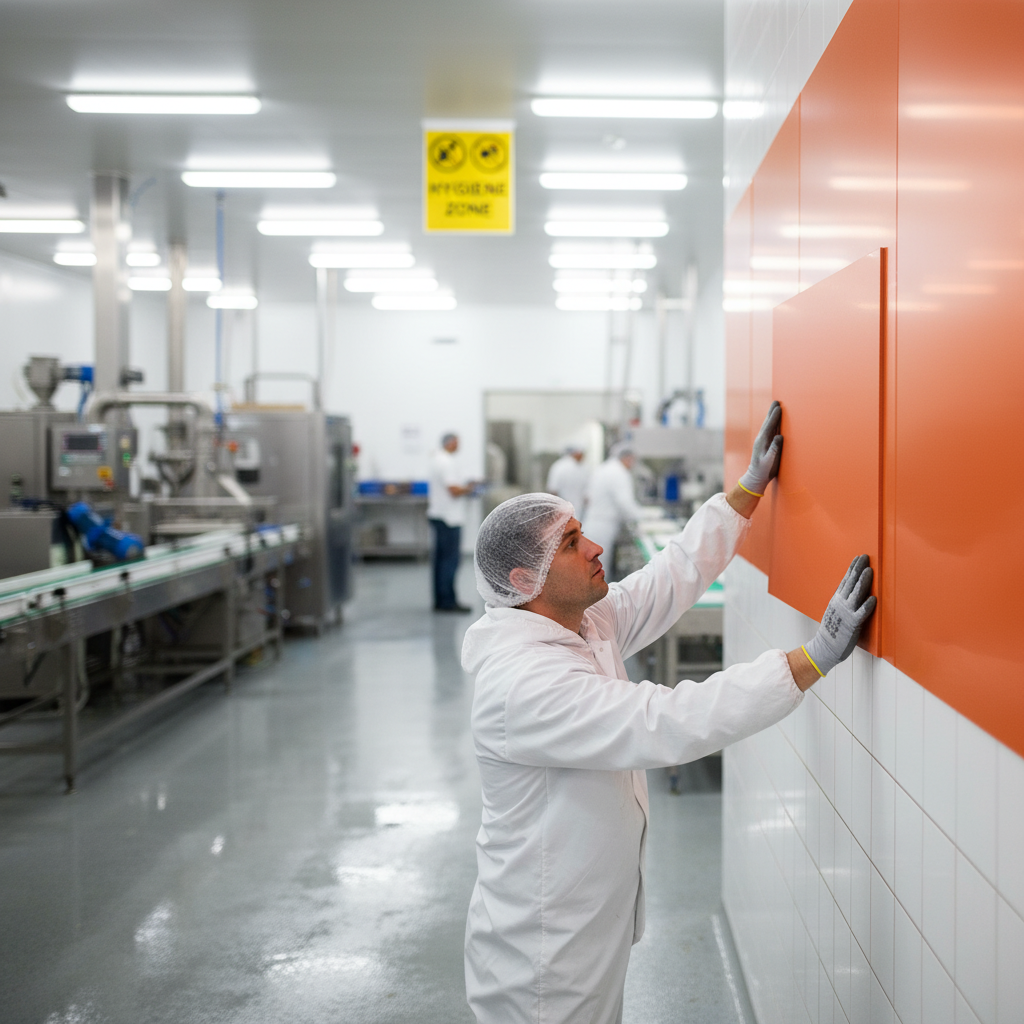

This sheet features a gloss face protected with a clear film, while the matte face is supplied unprotected. Typical fields of application for this hygienic cladding include wall cladding, hygienic cladding, and indoor signage. The material is well suited for CNC routing, forming, and fabrication.
Technical Specifications
| Specification | Measurement |
|---|---|
| Material | PVC Cladding |
| Shape | Sheet |
| Colour | Orange |
| Density (g/cm³) | 1 |
| Yield stress (MPa) | 50 |
| Shore hardness (scale D) | 80 |
| Tensile modulus of elasticity (MPa) | 2900 |
| Service temp long term min (°C) | -10 |
| Service temp long term max (°C) | 50 |
| Service temp short term max (°C) | 70 |
| Heat deflection temperature (°C) | 67 |
| Flammability 3mm | VO |
| Flammability 6mm | VO |
| Material type | PVC |
Applications
- Wall cladding
- Hygienic cladding
- Indoor signage
FAQs
- What is the maximum service temperature for this cladding? The maximum service temperature short term is 70°C.
- Can this material be used for CNC routing? Yes, the material is well suited for CNC routing, forming, and fabrication.
- What is the flammability rating of this cladding? The cladding has a flammability rating of VO for both 3mm and 6mm thicknesses.
