Description
This premium honeycomb core material is engineered with a 4.8mm hexagonal cell structure to provide exceptional rigidity at very low weight. Designed for use within sandwich panels and composite constructions, it offers a stable, consistent core that delivers reliable mechanical performance in demanding environments.
Available in a choice of thicknesses and sheet sizes, this lightweight core is ideal for applications where strength-to-weight ratio is critical, such as transportation, marine, industrial panels and architectural components. Its regular cell pattern ensures predictable behaviour under load, making it a dependable choice for both volume production and specialist projects.
Product Features
- 4.8mm hexagonal cell geometry for optimal balance of stiffness and weight reduction.
- Available thickness options: 5mm and 10mm to suit different structural requirements.
- Sheet length options: 600mm and 1200mm for flexibility in panel design and layout.
- Sheet width options: 600mm and 1200mm to match common panel and tooling sizes.
- Lightweight core structure designed for use within composite sandwich panel systems.
- Consistent cell pattern across the sheet for uniform mechanical and load-bearing performance.
- Supplied as flat sheets, ready for bonding with skins such as laminates, metals or composites.
Key Features and Benefits
- Excellent strength-to-weight ratio helps reduce overall component weight without compromising stiffness.
- Regular hexagonal cells provide high compressive and shear strength for reliable structural integrity.
- Multiple sheet sizes minimise cutting waste and speed up panel manufacture.
- Thin 5mm option ideal for lightweight panels, while 10mm suits higher stiffness or thicker laminate builds.
- Predictable mechanical behaviour supports accurate engineering calculations and repeatable performance.
- Flat, dimensionally stable core simplifies bonding processes and improves finished surface quality.
Specifications
| Specification | Detail |
|---|---|
| Cell size | 4.8mm hexagonal cell structure |
| Available thicknesses | 5mm, 10mm |
| Available sheet lengths | 600mm, 1200mm |
| Available sheet widths | 600mm, 1200mm |
| Form | Flat honeycomb core sheets for sandwich panel construction |
| Typical use | Lightweight structural and semi-structural panel applications |
Applications and Ideal Uses
This honeycomb core is suited to a wide range of lightweight panel and structural applications where reduced mass and high stiffness are essential.
- Interior and non-critical structural panels in transport, rail, bus and coachbuilding.
- Lightweight bulkheads, linings and joinery panels in marine and leisure craft.
- Architectural cladding, partitions and display structures requiring rigidity with minimal weight.
- Industrial machine guards, enclosures and access panels using composite sandwich construction.
- Exhibition, point-of-sale and staging platforms where portability and strength are required.
Frequently Asked Questions
How do I choose between the 5mm and 10mm thick honeycomb core sheets?
The 5mm thickness is generally used where minimal weight and a slim panel build are priorities, for example small partitions or lightweight cladding. The 10mm thickness provides greater stiffness and load-bearing capability, making it more suitable for larger spans, access panels or where additional rigidity is required. Your choice will depend on the desired panel thickness, stiffness and overall weight target.

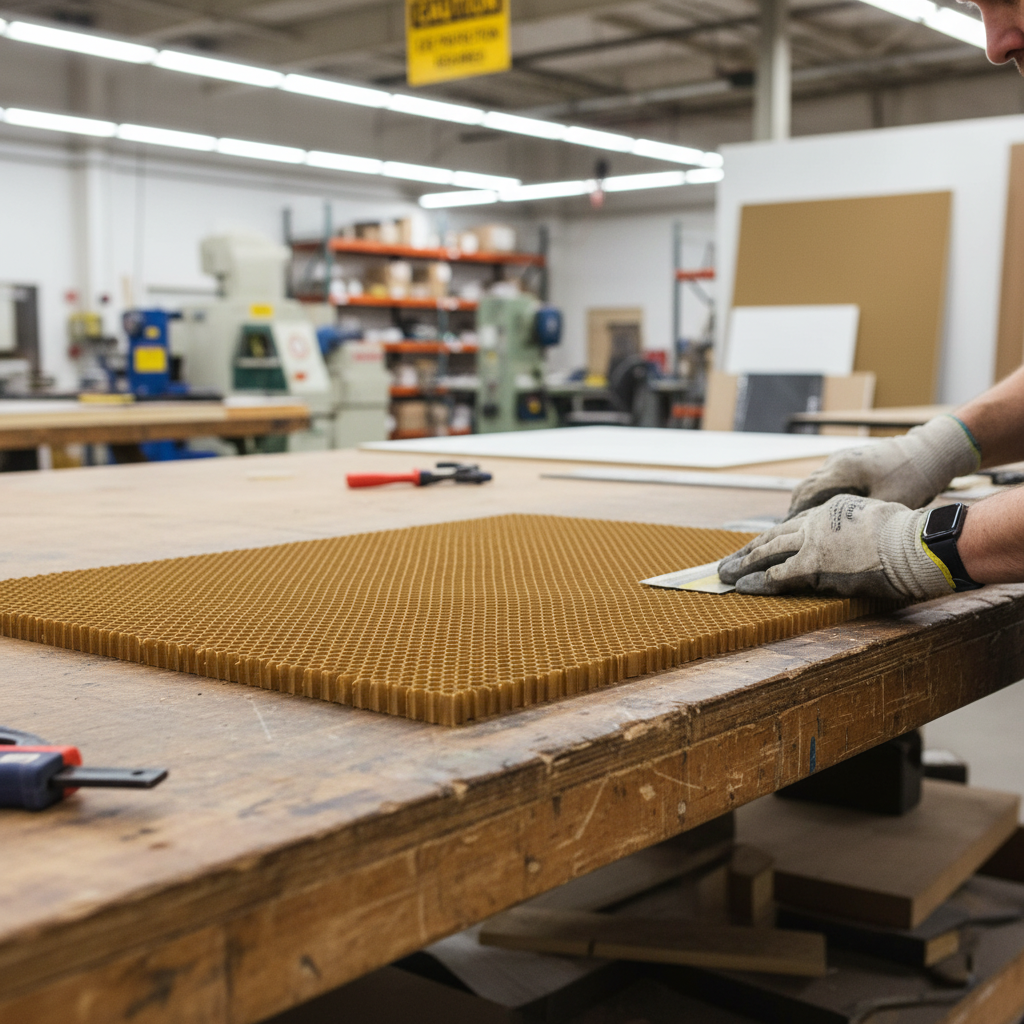

Can the honeycomb core sheets be cut to size on site?
Yes, the sheets can normally be trimmed to size using suitable cutting tools such as fine-toothed saws or specialist panel cutting equipment, depending on your workshop set-up. Care should be taken to maintain clean, square edges and to follow any recommended handling or cutting guidelines for the specific core material used in your project.
What types of skins can be bonded to this honeycomb core material?
This honeycomb core is designed for use in sandwich panel construction and can typically be bonded to a wide range of facing materials, including composite laminates, metal skins and high-pressure laminates, subject to using an appropriate adhesive and process. Always confirm compatibility of the adhesive and skins with the core material and carry out representative trials to verify bond strength and performance.
