Description
Description

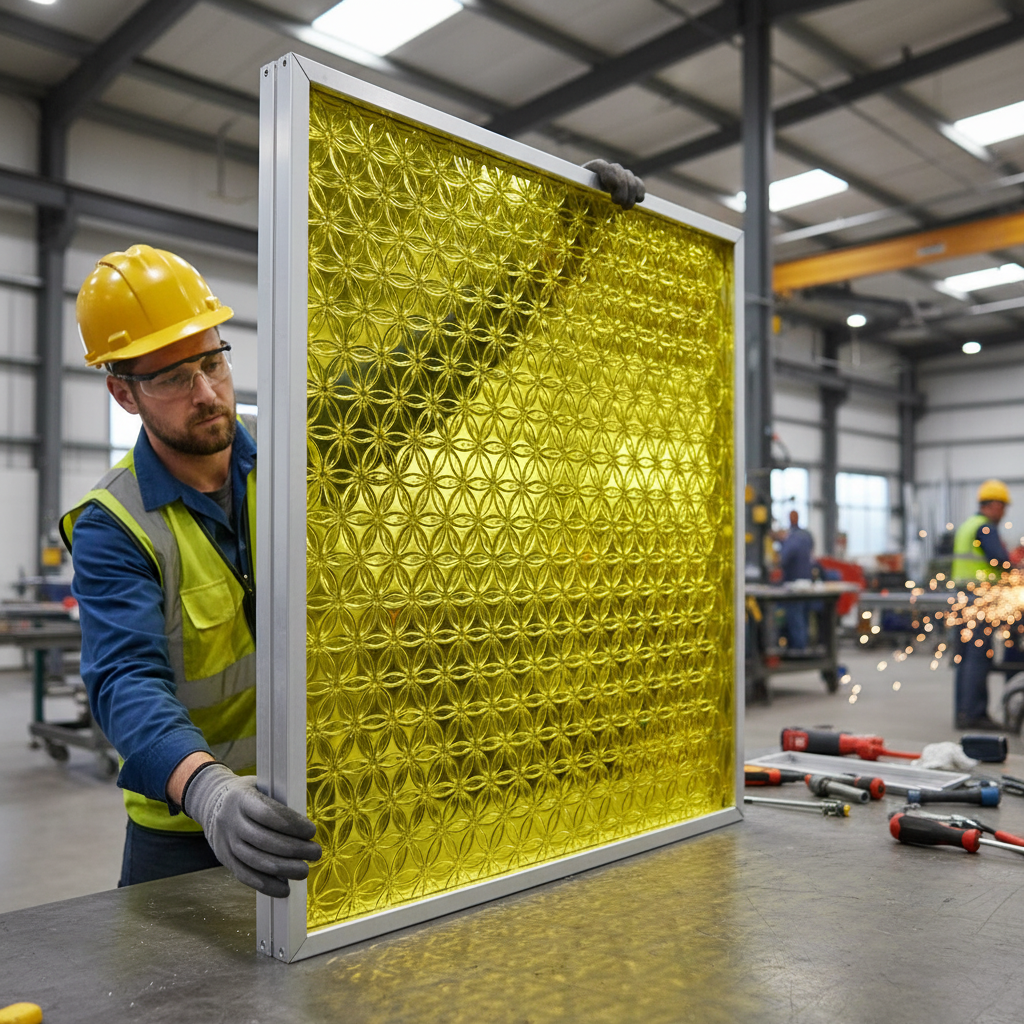

This Premium composite panel features an airy yet rigid 3-dimensional translucent SAN inner core bonded with external layers of Acrylic. Designed for ease of use, this composite sheet can be cut easily and finished with standard accessories, including frames, handles, and hinges. The edges can also be finished with the same material used for the external layers.
Thanks to its lightweight nature, stiffness, translucency, and the unique geometric pattern of its core, this structural panel is ideal for a variety of indoor applications. It excels in use as partition walls, wall presentations, lighting fixtures, bar and counter fronts, stair panels, balustrades, doors, walls, and ceilings. The sheet is available in a range of colors, including transparent and satin finishes.
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Material | Acrylic |
| Shape | Sheet |
| Colour | Yellow |
| Density (g/cm³) | 1.19 |
| E-modulus (MPa) | 3300 |
| COE (mm/m/10ºC) | 0.6 |
| Bending strength (kg/cm) | 1200 |
| Fire classification (EN13501) | E |
| Thickness tolerance | 0.4mm +/- 10% |
| Saw tolerance (mm) | +/-1 |
| Deviation angularity (mm/1m) | 1.5 |
| Service temp long term min (°C) | -10 |
| Service temp long term max (°C) | 50 |
| Material type | Honeycomb |
Applications
This Premium Honeycomb Composite Sheet is perfect for a variety of applications, including:
- Partition walls
- Wall presentations
- Lighting fixtures
- Bar and counter fronts
- Stair panels
- Balustrades
- Doors
- Walls
- Ceilings
FAQ
What is the weight of the composite sheet?
The density of the composite sheet is 1.19 g/cm³, ensuring it remains lightweight while offering strength.
Can the sheet be cut to size?
Yes, the sheet is easy to cut and can be finished with standard accessories.
What are the fire ratings of the composite material?
The composite material has a fire classification of E according to EN13501 regulations.
