Description
Description

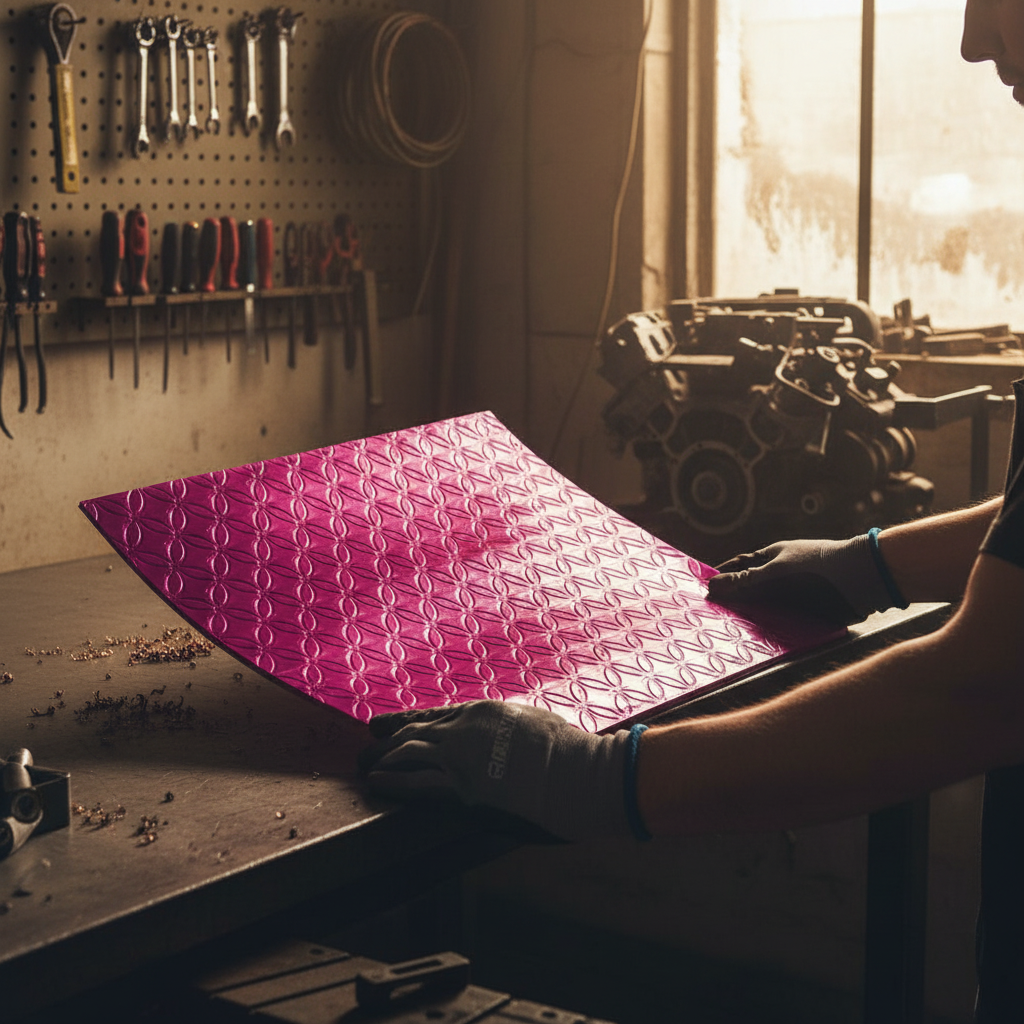

This composite panel features an airy yet rigid 3-dimensional translucent SAN inner core bonded with external layers of Acrylic. Easy to cut, this panel can be finished with standard accessories and profiles such as frames, handles, and hinges. It can also be edged with the same material used for the external layers.
Thanks to its characteristics of lightweight, stiffness, translucency, and the unique geometric pattern of its core, this structural panel has a wide variety of indoor applications. It is excellent for use as partition walls, wall presentations, lighting fixtures, bar- and counter fronts, stair panels, balustrades, doors, walls, and ceilings. Available in a range of colours with both transparent and satin finishes.
Technical Specifications
| Specification | Measurement |
|---|---|
| Material | Acrylic |
| Shape | Sheet |
| Colour | Purple |
| Density (g/cm³) | 1.19 |
| E-modulus (MPa) | 3300 |
| COE (mm/m/10ºC) | 0.6 |
| Bending strength (kg/cm) | 1200 |
| Fire classification (EN13501) | E |
| Thickness tolerance | 0.4mm +/- 10% |
| Saw tolerance (mm) | +/-1 |
| Deviation angularity (mm/1m) | 1.5 |
| Service temp long term min (°C) | -10 |
| Service temp long term max (°C) | 50 |
| Material type | Honeycomb |
Applications
- Partition walls
- Wall presentations
- Lighting fixtures
- Bar and counter fronts
- Stair panels
- Balustrades
- Doors
- Walls
- Ceilings
FAQ
What is the maximum service temperature for this panel?
The maximum service temperature for this panel is 50°C.
Can this panel be used for outdoor applications?
This panel is primarily designed for indoor applications due to its temperature tolerance.
What is the density of the composite sheet?
The density of the composite sheet is 1.19 g/cm³.
