Description
Description

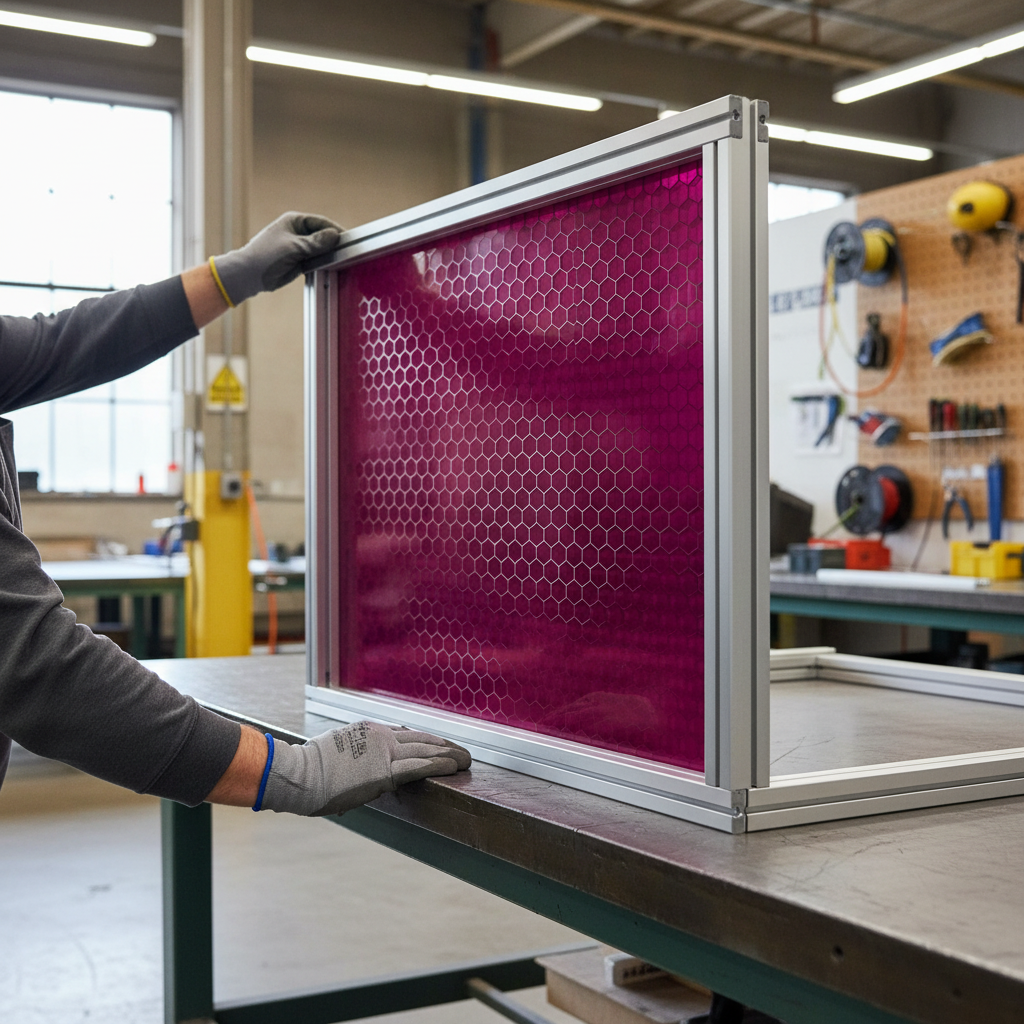

This Premium honeycomb composite sheet consists of a hexagonal aluminium core glued between two top layers of either acrylic or PETG, depending on the application. This ultra-lightweight material reflects and refracts light within the cells, creating a soft glow that moves as your point of view changes. The sheet is available in a range of colors with both transparent and satin finishes.
Being rigid and impact resistant, this honeycomb composite is excellent for use in partition walls, wall presentations, lighting fixtures, bar and counter fronts, stair panels, balustrades, doors, walls, and ceilings. It is easy to cut, can be finished with standard accessories and profiles, and can be edged with the same material used for the external layers. Please note that this composite is not suitable for outdoor applications.
Technical Specifications
| Specification | Measurement |
|---|---|
| Material | PETG Honeycomb Composite |
| Shape | Sheet |
| Colour | Purple |
| Density (g/cm³) | 1.3 |
| Service temp long term min (°C) | -10 |
| Service temp long term max (°C) | 50 |
| E-modulus (MPa) | 2350 |
| COE (mm/m/10ºC) | 0.5 |
| Bending strength (kg/cm) | 1587 |
| Fire classification (EN13501-1) | Bs1D0 |
| Thickness tolerance | Barely |
| Saw tolerance (mm) | +/-1 |
| Deviation angularity (mm/1m) | 1.5 |
| Material type | Honeycomb |
Applications
- Partition walls
- Wall presentations
- Lighting fixtures
- Bar and counter fronts
- Stair panels
- Balustrades
- Doors, walls, and ceilings
FAQs
- Is the honeycomb composite sheet suitable for outdoor use? No, it is not suitable for outdoor applications.
- Can the honeycomb composite be cut easily? Yes, it can be easily cut and finished with standard accessories.
- What is the fire classification of this material? The fire classification is Bs1D0 according to EN13501-1.
