Description
Description

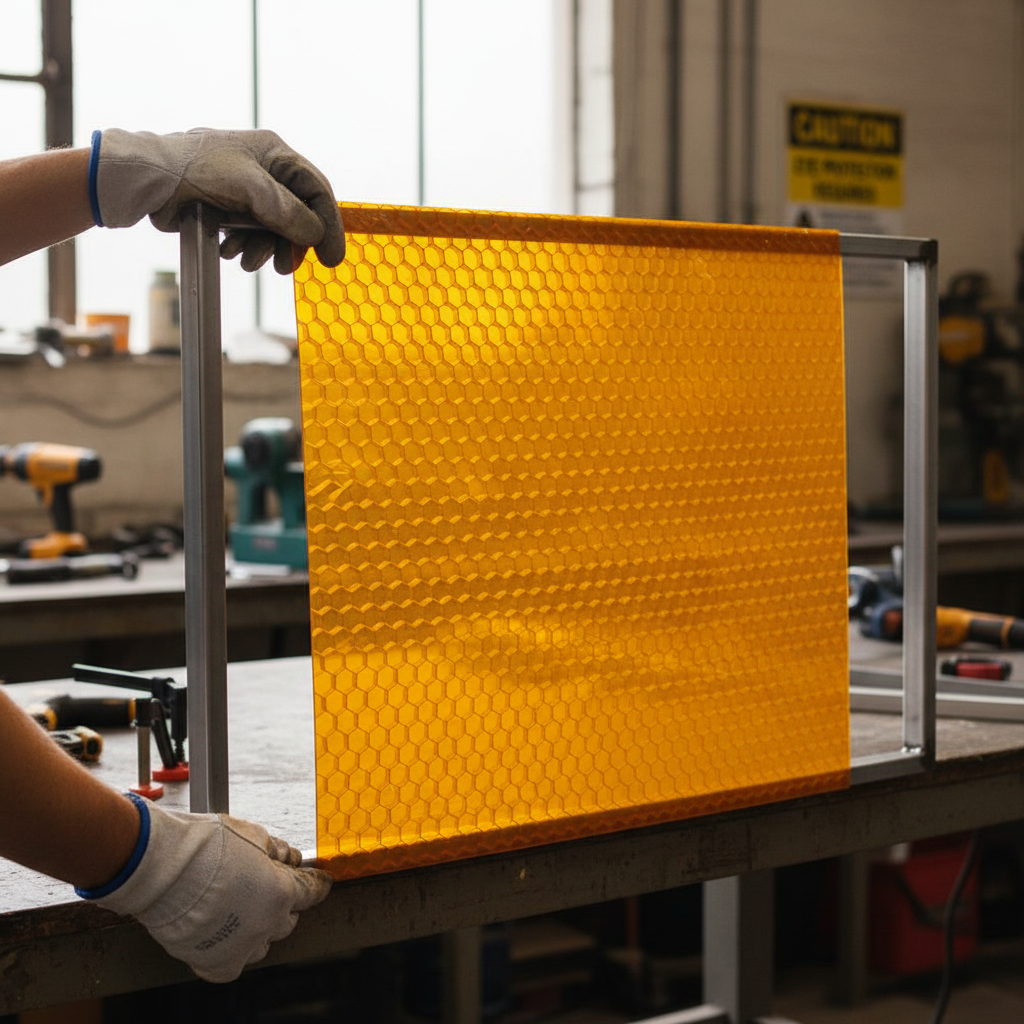

This Premium honeycomb composite sheet consists of a hexagonal aluminium core (large or small) glued between two top layers of either acrylic or PETG depending on the application. This ultra-lightweight material reflects and refracts light within the cells, creating a soft glow from within that moves as your point of view changes. Available in a range of colours with both transparent and satin finishes.
Being rigid and impact resistant, this composite sheet is excellent for use in partition walls, wall presentations, lighting fixtures, bar- and counter fronts, stair panels, balustrades, doors, walls, and ceilings. It is easy to cut and can be finished with standard accessories and profiles, frames, handles, and hinges. The edges can be finished with the same material used for the external layers. Note that this composite sheet is not suitable for outdoor applications.
Technical Specifications
| Specification | Measurement |
|---|---|
| Material | PETG Honeycomb Composite |
| Shape | Sheet |
| Colour | Orange |
| Density (g/cm³) | 1.3 |
| Service temp long term min (°C) | -10 |
| Service temp long term max (°C) | 50 |
| E-modulus (MPa) | 2350 |
| COE (mm/m/10ºC) | 0.5 |
| Bending strength (kg/cm) | 1587 |
| Fire classification (EN13501-1) | Bs1D0 |
| Thickness tolerance | Barely |
| Saw tolerance (mm) | +/-1 |
| Deviation angularity (mm/1m) | 1.5 |
| Material type | Honeycomb |
Applications
- Partition walls
- Wall presentations
- Lighting fixtures
- Bar and counter fronts
- Stair panels
- Balustrades
- Doors
- Walls and ceilings
FAQ
Q: Is this composite sheet suitable for outdoor use?A: No, this composite sheet is not suitable for outdoor applications.
Q: Can the sheet be cut to size?
A: Yes, the sheet is easy to cut and can be finished with standard accessories.
Q: What is the fire classification of this material?
A: The fire classification is Bs1D0 as per EN13501-1.
