Description
Description

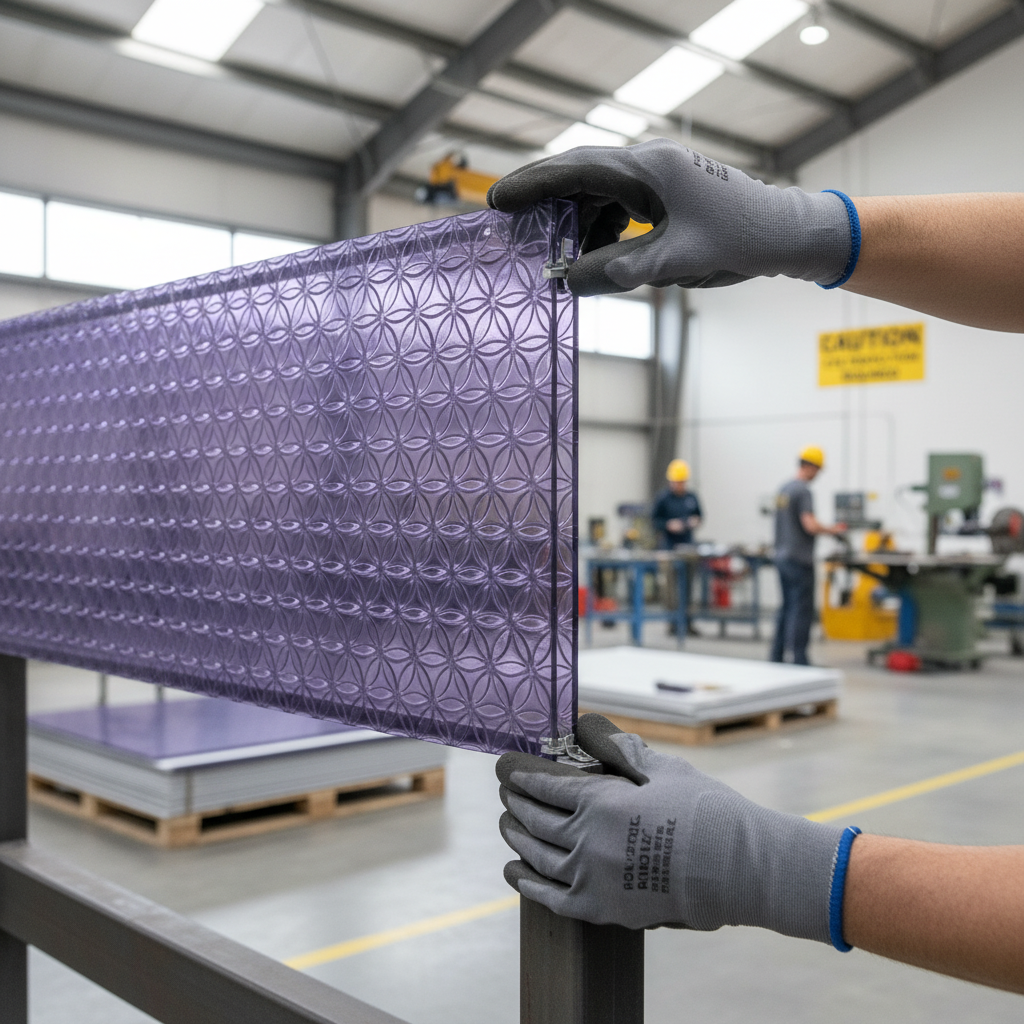

This Premium composite panel features an airy yet rigid 3-dimensional translucent SAN inner core, bonded with external layers of Acrylic. The sheet is easy to cut and can be finished with standard accessories and profiles such as frames, handles, and hinges. Additionally, it can be edged with the same material used for the external layers.
Thanks to its lightweight, stiffness, translucency, and unique geometric pattern, this structural panel is suitable for a wide variety of indoor applications. It is excellent for use as partition walls, wall presentations, lighting fixtures, bar and counter fronts, stair panels, balustrades, doors, walls, and ceilings. The composite sheet is available in a range of colors, including transparent and satin finishes.
Technical Specifications
| Specification | Measurement |
|---|---|
| Material | Acrylic |
| Shape | Sheet |
| Colour | Lilac |
| Density (g/cm³) | 1.19 |
| E-modulus (MPa) | 3300 |
| COE (mm/m/10ºC) | 0.6 |
| Bending strength (kg/cm) | 1200 |
| Fire classification (EN13501) | E |
| Thickness tolerance | 0.4mm +/- 10% |
| Saw tolerance (mm) | +/-1 |
| Deviation angularity (mm/1m) | 1.5 |
| Service temp long term min (°C) | -10 |
| Service temp long term max (°C) | 50 |
| Material type | Honeycomb |
Applications
- Partition walls
- Wall presentations
- Lighting fixtures
- Bar and counter fronts
- Stair panels
- Balustrades
- Doors
- Walls and ceilings
FAQs
-
What is the maximum service temperature for this composite sheet?
The maximum service temperature is 50°C. -
Can this panel be cut to size?
Yes, it is easy to cut and can be finished with standard accessories. -
What is the fire classification of this material?
The fire classification is E according to EN13501 standards.
