Description
Description

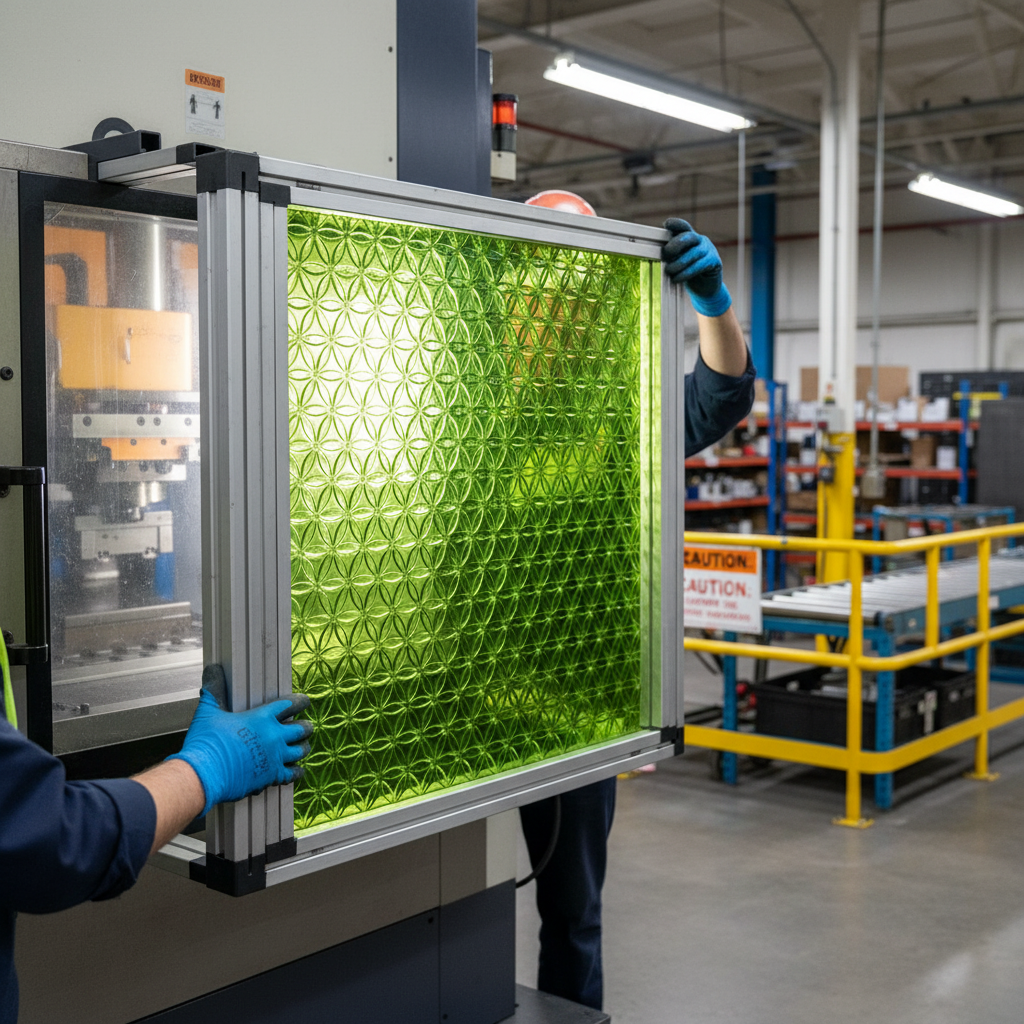

This Premium Honeycomb Composite Sheet features an airy yet rigid 3-dimensional translucent SAN inner core, bonded with external layers of Acrylic. It is designed for ease of cutting and can be finished with standard accessories such as frames, handles, and hinges. The sheet can also be edged with the same material used for the external layers, enhancing its aesthetic appeal.
Thanks to its lightweight, stiffness, translucency, and unique geometric core pattern, this structural panel is ideal for a wide variety of indoor applications. It excels as partition walls, wall presentations, lighting fixtures, bar and counter fronts, stair panels, balustrades, doors, walls, and ceilings. Available in a range of colors with both transparent and satin finishes, this composite sheet is versatile and highly functional.
Technical Specifications
| Specification | Measurement |
|---|---|
| Material | Acrylic |
| Shape | Sheet |
| Colour | Acid Green |
| Density (g/cm³) | 1.19 |
| E-modulus (MPa) | 3300 |
| COE (mm/m/10ºC) | 0.6 |
| Bending strength (kg/cm) | 1200 |
| Fire classification (EN13501) | E |
| Thickness tolerance | 0.4mm +/- 10% |
| Saw tolerance (mm) | +/-1 |
| Deviation angularity (mm/1m) | 1.5 |
| Service temp long term min (°C) | -10 |
| Service temp long term max (°C) | 50 |
| Material type | Honeycomb |
Applications
This Premium Honeycomb Composite Sheet is perfect for:
- Partition walls
- Wall presentations
- Lighting fixtures
- Bar and counter fronts
- Stair panels
- Balustrades
- Doors
- Walls and ceilings
FAQs
Q: What is the maximum service temperature for this composite sheet?
A: The maximum service temperature is 50°C.
Q: Can this material be easily cut?
A: Yes, this composite sheet is easy to cut and can be finished with standard accessories.
Q: What fire classification does this product have?
A: The fire classification is E according to EN13501 standards.
