Description
Description

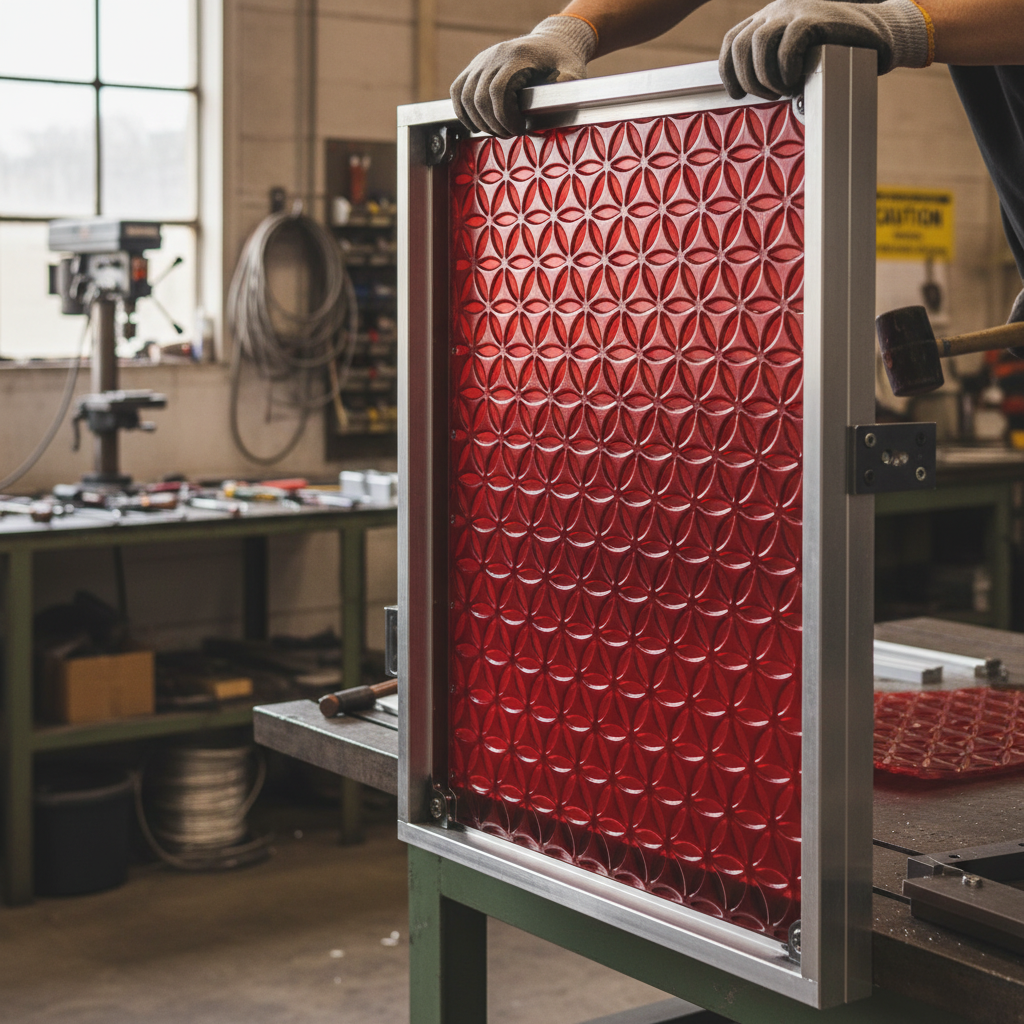

This Premium honeycomb composite panel features an airy yet rigid 3-dimensional translucent SAN inner core, bonded with external layers of acrylic. It is easy to cut and can be finished with standard accessories and profiles such as frames, handles, and hinges. The edges can also be finished with the same material used for the external layers, enhancing its aesthetic appeal.
Thanks to its lightweight, stiffness, translucency, and unique geometric pattern of its core, this structural panel boasts a wide variety of indoor applications. It is excellent for use as partition walls, wall presentations, lighting fixtures, bar and counter fronts, stair panels, balustrades, doors, walls, and ceilings. Available in a range of colors with both transparent and satin finishes, it provides versatility for any design project.
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Material | Acrylic |
| Shape | Sheet |
| Colour | Red |
| Density (g/cm³) | 1.19 |
| E-modulus (MPa) | 3300 |
| COE (mm/m/10ºC) | 0.6 |
| Bending strength (kg/cm) | 1200 |
| Fire classification (EN13501) | E |
| Thickness tolerance | 0.4mm +/- 10% |
| Saw tolerance (mm) | +/-1 |
| Deviation angularity (mm/1m) | 1.5 |
| Service temp long term min (°C) | -10 |
| Service temp long term max (°C) | 50 |
| Material type | Honeycomb |
FAQ
- What are the primary applications for this composite sheet? Ideal for partition walls, lighting fixtures, and bar fronts.
- Is the material easy to work with? Yes, the panel can be easily cut and finished with standard accessories.
- What is the fire classification of the panel? It has a fire classification of E according to EN13501 standards.
