Description
Description

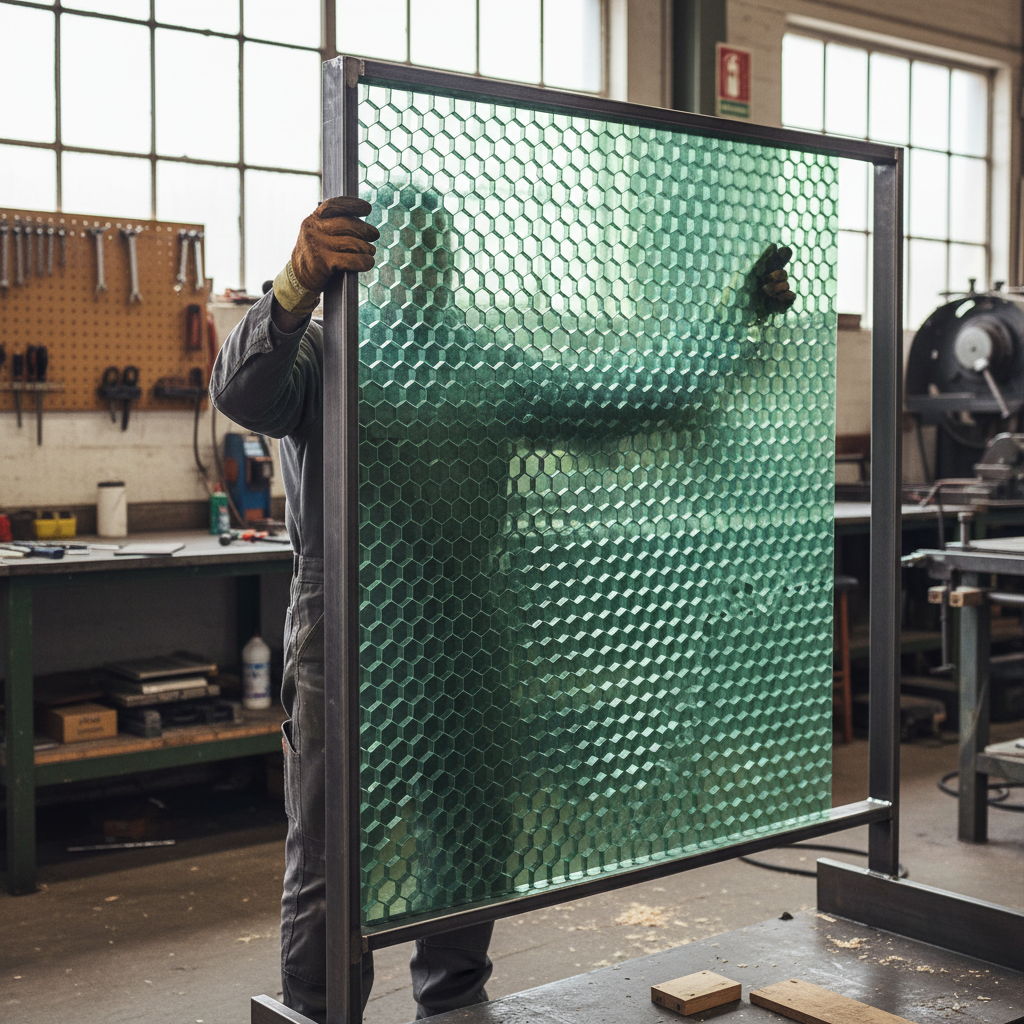

This Premium honeycomb composite sheet consists of a hexagonal aluminum core (large or small) glued between two top layers of either acrylic or PETG, depending on the application. This ultra-lightweight material reflects and refracts light within the cells, creating a soft glow from within that moves as your point of view changes. Available in a range of colors with both transparent and satin finishes.
Being rigid and impact resistant, this composite sheet is excellent for use in partition walls, wall presentations, lighting fixtures, bar and counter fronts, stair panels, balustrades, doors, walls, and ceilings. It is easy to cut and can be finished with standard accessories and profile frames, handles, and hinges. The edges can be finished with the same material used for the external layers. Please note that this product is not suitable for outdoor applications.
Technical Specifications
| Specification | Measurement |
|---|---|
| Material | Acrylic |
| Shape | Sheet |
| Colour | Glass Look |
| Density (g/cm³) | 1.19 |
| Service temp long term min (°C) | -10 |
| Service temp long term max (°C) | 50 |
| E-modulus (MPa) | 3300 |
| COE (mm/m/10ºC) | 0.6 |
| Bending strength (kg/cm) | 1200 |
| Fire classification (EN13501) | E |
| Thickness tolerance | 0.4mm +/- 10% |
| Saw tolerance (mm) | +/-1 |
| Deviation angularity (mm/1m) | 1.5 |
| Material type | Honeycomb |
Applications
- Partition walls
- Wall presentations
- Lighting fixtures
- Bar and counter fronts
- Stair panels
- Balustrades
- Doors
- Walls and ceilings
FAQ
Is this composite sheet suitable for outdoor use?
No, this product is not suitable for outdoor applications.
Can the sheet be cut easily?
Yes, the composite sheet is easy to cut and can be finished with standard accessories.
What colors are available?
The composite sheet is available in a range of colors with both transparent and satin finishes.
