This Premium honeycomb composite sheet consists of a hexagonal aluminium core glued between two top layers of either acrylic or PETG depending on the application. This ultra-lightweight material reflects and refracts light within the cells, creating a soft glow from within that moves as your point of view changes. Available in a range of colours with both transparent and satin finishes.

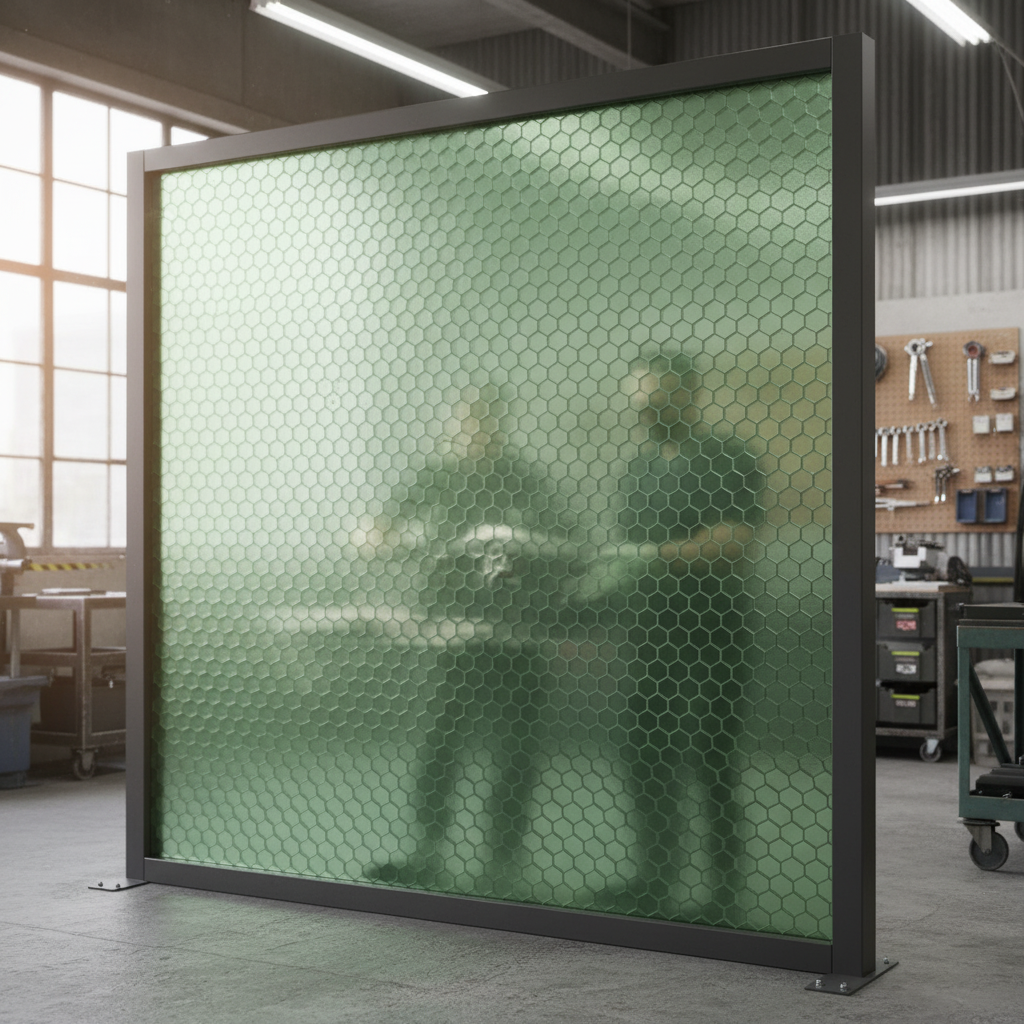

Being rigid and impact resistant, this composite sheet is excellent for use in partition walls, wall presentations, lighting fixtures, bar- and counter fronts, stair panels, balustrades, doors, walls, and ceilings. It is easy to cut, can be finished with standard accessories and profiles, handles, and hinges, and can be edged with the same material used for the external layers. However, it is not suitable for outdoor applications.
Technical Specifications
| Specification | Measurement |
|---|---|
| Material | PETG Honeycomb Composite |
| Shape | Sheet |
| Colour | Glass Look |
| Density (g/cm³) | 1.3 |
| Service temp long term min (°C) | -10 |
| Service temp long term max (°C) | 50 |
| E-modulus (MPa) | 2350 |
| COE (mm/m/10ºC) | 0.5 |
| Bending strength (kg/cm) | 1587 |
| Fire classification (EN13501-1) | Bs1D0 |
| Thickness tolerance | Barely |
| Saw tolerance (mm) | +/-1 |
| Deviation angularity (mm/1m) | 1.5 |
| Material type | Honeycomb |
Applications
- Partition walls
- Wall presentations
- Lighting fixtures
- Bar and counter fronts
- Stair panels
- Balustrades
- Doors
- Walls and ceilings
FAQ
- Is this material suitable for outdoor use? No, this composite sheet is not suitable for outdoor applications.
- Can the sheet be cut to size? Yes, it is easy to cut and can be finished with standard accessories.
- What colors are available? It is available in a range of colors with both transparent and satin finishes.
