Description
Description

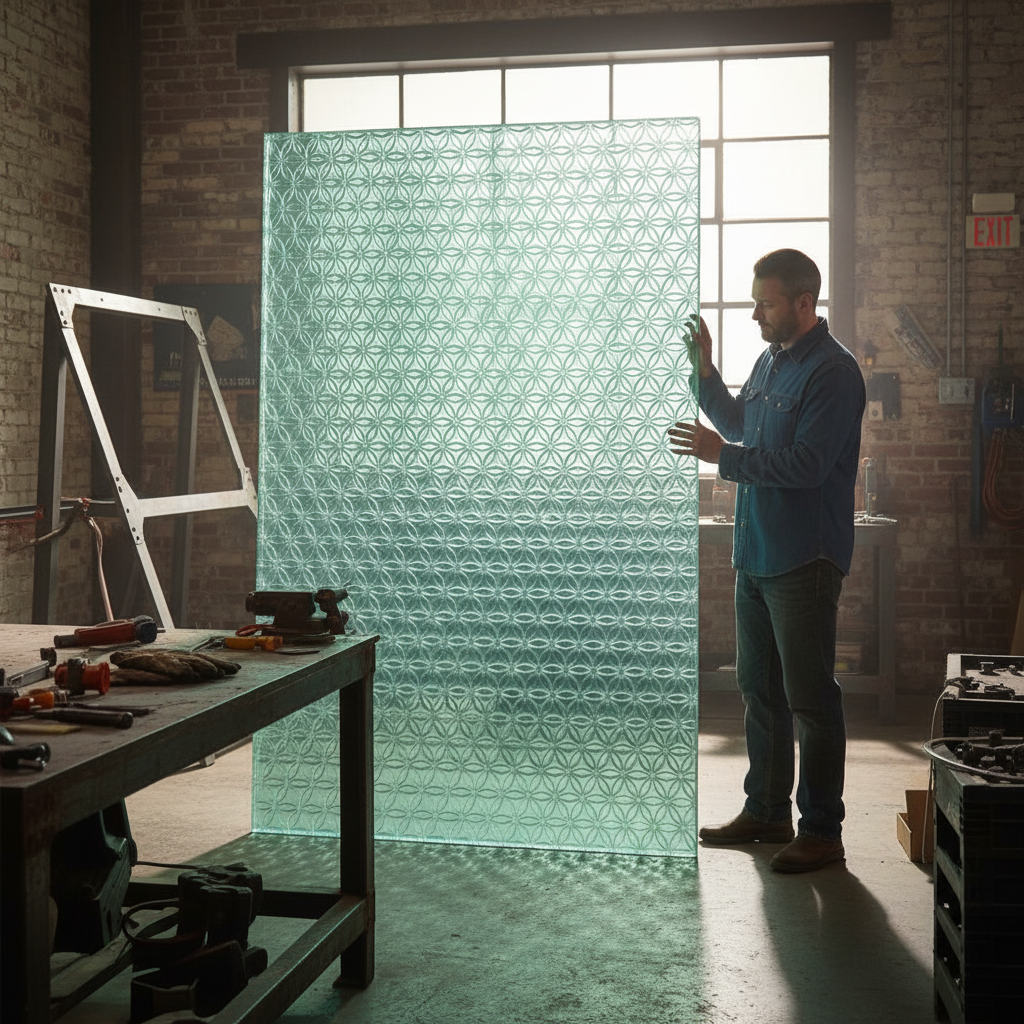

This Premium Honeycomb Composite Panel features a 3-dimensional translucent SAN inner core, bonded with external layers of Acrylic. It is easy to cut and can be finished with standard accessories and profiles such as frames, handles, and hinges. The edging can also be made with the same material used for the external layers.
Thanks to its lightweight, stiffness, translucency, and unique geometric pattern, this structural panel is perfect for a wide variety of indoor applications. It excels as partition walls, wall presentations, lighting fixtures, bar and counter fronts, stair panels, balustrades, doors, walls, and ceilings. Available in a range of colors with both transparent and satin finishes.
Technical Specifications
| Specification | Measurement |
|---|---|
| Material | Acrylic |
| Shape | Sheet |
| Colour | Glass Look |
| Density (g/cm³) | 1.19 |
| E-modulus (MPa) | 3300 |
| COE (mm/m/10ºC) | 0.6 |
| Bending strength (kg/cm) | 1200 |
| Fire classification (EN13501) | E |
| Thickness tolerance | 0.4mm +/- 10% |
| Saw tolerance (mm) | +/-1 |
| Deviation angularity (mm/1m) | 1.5 |
| Service temp long term min (°C) | -10 |
| Service temp long term max (°C) | 50 |
| Material type | Honeycomb |
Applications
This composite panel is ideal for various applications including:
- Partition walls
- Wall presentations
- Lighting fixtures
- Bar and counter fronts
- Stair panels
- Balustrades
- Doors
- Walls
- Ceilings
FAQ
What is the fire classification of this panel?
The fire classification is E according to EN13501 standards.
What is the maximum service temperature for this panel?
The maximum service temperature is 50°C.
Can the panel be cut to size?
Yes, the Premium Honeycomb Composite Panel is easy to cut and can be finished with standard accessories.
