Description
This premium high-performance extruded black rod is manufactured from PE1000 (UHMWPE), offering outstanding wear resistance, very low friction and high impact strength. Supplied in a convenient round bar format, it is ideal for machining into precision components where durability and reliable performance are essential.
With exceptional chemical resistance and excellent resistance to abrasion and impact, this UHMWPE rod is widely used in engineering, food processing, materials handling and conveying systems. Available in a choice of diameters and lengths, it provides a versatile solution for low-friction, non-marking parts in demanding industrial environments.
Product Features
- Manufactured from PE1000 (UHMWPE) for superior wear and impact resistance.
- Black extruded rod in a wide range of diameters, including 20, 25, 30, 40, 50 mm plus many additional sizes.
- Standard lengths of 1000 mm and 2000 mm to suit different machining and installation requirements.
- Excellent chemical resistance to a broad range of acids, alkalis and solvents.
- Very low coefficient of friction for smooth, non-stick sliding and conveying applications.
- Outstanding resistance to abrasion and mechanical wear, even under heavy load.
- Good dimensional stability for accurately machined components and repeatable performance.
Key Features and Benefits
- Delivers long service life in high-wear environments, helping to reduce maintenance and replacement costs.
- Low-friction surface minimises drag and sticking, improving efficiency in conveyor, guide and bearing applications.
- High impact strength resists chipping, cracking and sudden failure, even under repeated shock loading.
- Chemically robust material maintains performance when exposed to many cleaning agents and process chemicals.
- Easy to machine using standard engineering equipment, enabling precise custom parts to be produced in-house or by subcontractors.
- Non-marking and vibration-dampening characteristics support smoother, quieter operation of moving plant and equipment.
Specifications
| Specification | Detail |
|---|---|
| Material | PE1000 (UHMWPE) extruded engineering plastic rod |
| Colour | Black |
| Available diameters | 20, 25, 30, 40, 50 mm plus additional diameters across the range |
| Standard lengths | 1000 mm and 2000 mm |
| Key properties | High impact strength, very low friction, excellent abrasion and chemical resistance |
| Typical service temperature | Approx. -200°C to +80°C (application dependent) |
Applications and Ideal Uses
This PE1000 UHMWPE black rod is suitable for a wide variety of industrial and engineering applications where low friction, impact resistance and chemical stability are required.

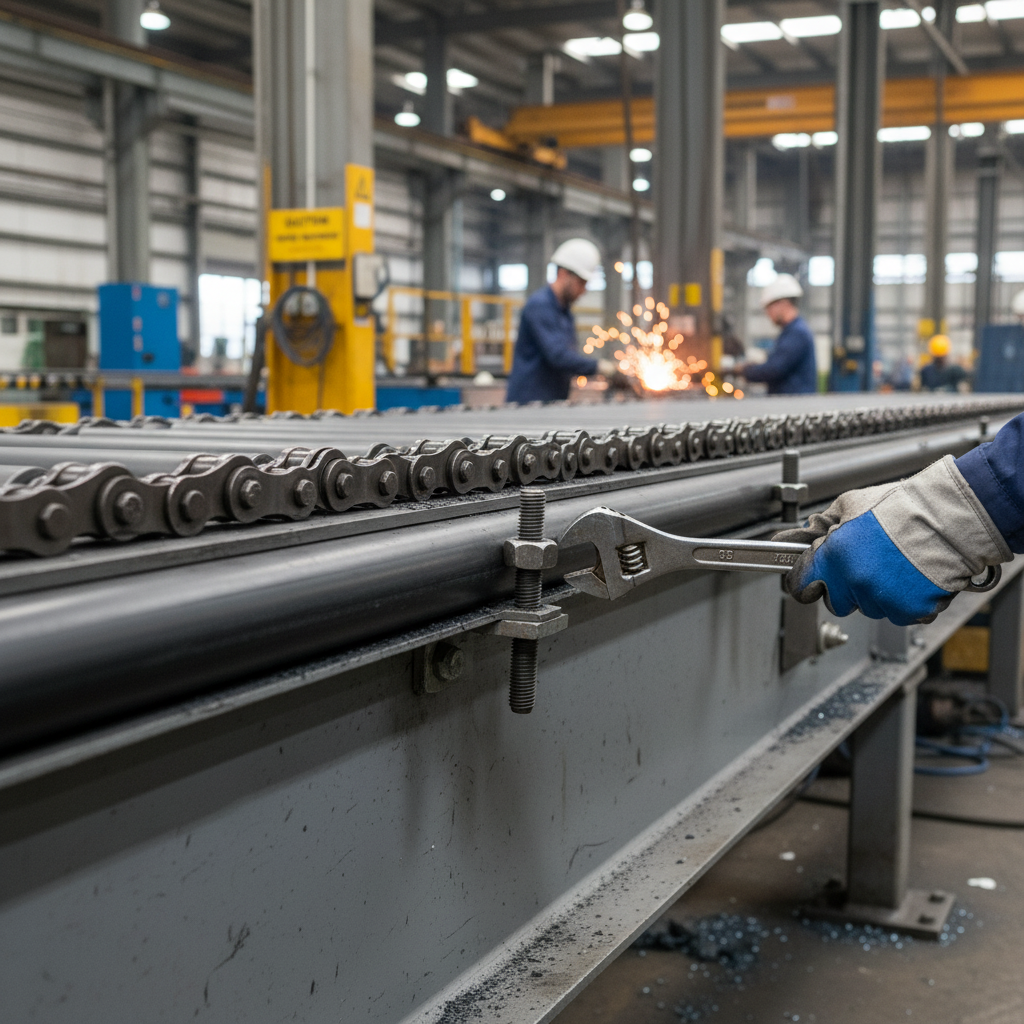

- Wear strips, guides and profiles for conveyor and materials handling systems.
- Bearing bushes, rollers and low-speed sliding components.
- Impact plates, bump stops and protective liners in chutes and hoppers.
- Machined components for food processing and packaging equipment (subject to specific regulatory requirements).
- General engineering parts such as spacers, blocks and custom wear-resistant fittings.
Frequently Asked Questions
Can this PE1000 (UHMWPE) rod be easily machined into custom components?

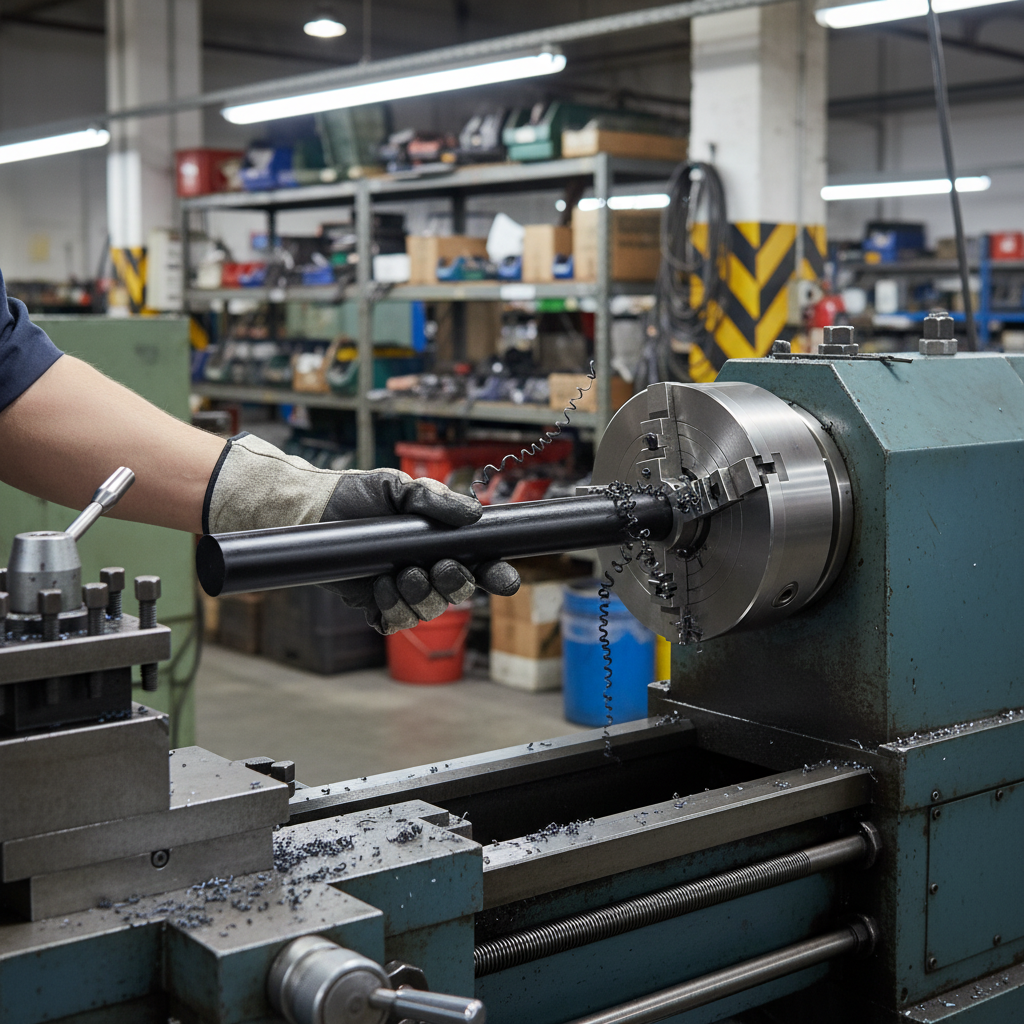

Yes, the rod machines well using standard workshop equipment such as lathes, mills and saws with sharp tools and appropriate cutting conditions. Allowance should be made for thermal expansion and the material’s relatively high flexibility when designing and machining parts.
Is the black UHMWPE rod resistant to most common industrial chemicals?
It offers excellent resistance to many acids, alkalis and solvents typically encountered in industrial environments. However, performance can vary with concentration, temperature and exposure time, so it is advisable to check compatibility for critical applications.
How do I choose the correct diameter and length for my application?
Select a diameter that allows sufficient machining allowance while achieving your final component size and strength requirements. Choose 1000 mm or 2000 mm lengths based on the number and size of parts you intend to machine, aiming to minimise waste while maintaining adequate stock for future needs.
