Description
This premium clear acrylic cast tube offers a strong, rigid and visually appealing solution wherever you need a durable transparent cylinder. Manufactured from high-quality cast acrylic, it provides excellent optical clarity and a smooth, polished appearance that is ideal for both functional and display applications.
Available in a wide range of outside diameters, wall thicknesses and standard lengths, this tube is suitable for everything from protective covers and sight glasses to illuminated displays and architectural features. Its combination of strength, light weight and weather resistance makes it a reliable choice for use in workshops, retail environments, laboratories and public spaces.
Product Features
- Clear cast acrylic construction for excellent optical clarity and a high-gloss finish.
- Multiple outside diameters available, including 40 mm, 44 mm, 50 mm, 60 mm, 70 mm and many other sizes to suit different designs.
- Choice of wall thicknesses: 5 mm, 6 mm, 8 mm, 10 mm, 12 mm and 15 mm for light, standard or heavy-duty applications.
- Offered in practical standard lengths of 2000 mm, 2100 mm and 2200 mm to minimise joints and simplify installation.
- Rigid and dimensionally stable tube suitable for machining, cutting and bonding with appropriate tools and adhesives.
- Good impact resistance and toughness compared with glass, yet significantly lighter in weight.
- Weather and UV resistant material, suitable for indoor use and many covered outdoor applications.
Key Features and Benefits
- Superior clarity enhances visibility of contents or internal components, ideal for display and inspection applications.
- Wide range of diameters and wall thicknesses allows precise matching to mechanical, flow or aesthetic requirements.
- Lightweight compared with glass, making handling, transport and installation easier and safer.
- Durable and long-lasting material reduces the need for frequent replacement, supporting cost-effective projects.
- Easy to fabricate using standard plastics-working tools, enabling custom cutting, drilling, routing and polishing.
- Resistant to many common cleaning agents, allowing simple maintenance and a consistently clear appearance.
Specifications
| Specification | Detail |
|---|---|
| Material | Clear cast acrylic (PMMA) |
| Outside diameter options | 40 mm, 44 mm, 50 mm, 60 mm, 70 mm (plus a further range of diameters available) |
| Wall thickness options | 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, 15 mm |
| Standard lengths | 2000 mm, 2100 mm, 2200 mm |
| Colour / finish | Clear, high-gloss finish |
| Typical service temperature | Approx. -20 °C to +70 °C (continuous use, application dependent) |
Applications and Ideal Uses
This clear acrylic cast tube is suitable for a wide range of industrial, commercial and creative projects where a strong, transparent cylindrical form is required.
- Protective guards, covers and safety shrouds around moving machinery or delicate components.
- Display stands, product columns and point-of-sale features in retail and exhibition environments.

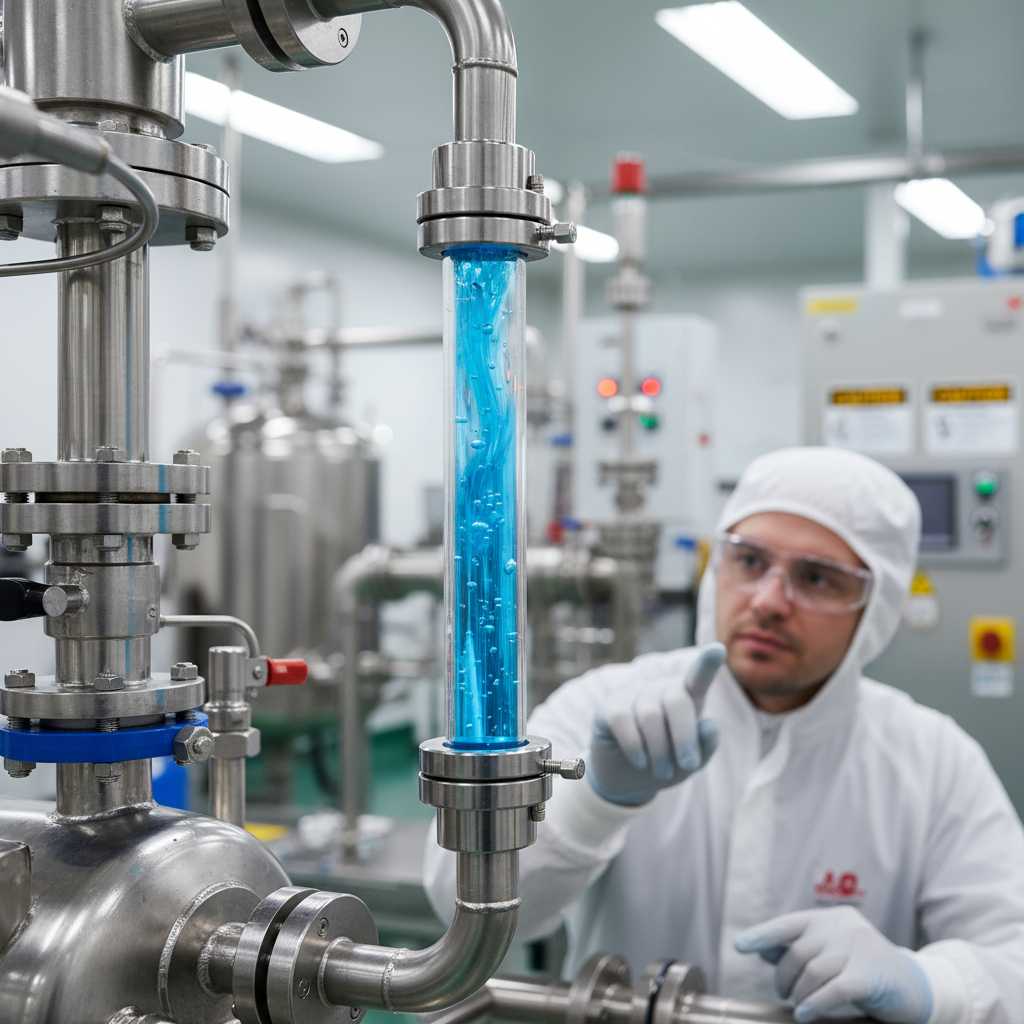

- Sight glasses, level indicators and inspection sections in low-pressure process or filtration systems.
- Architectural details, lighting diffusers and decorative installations in interior design projects.
- Model making, prototyping and educational demonstrations where clear visibility is essential.
Frequently Asked Questions
Can I cut the acrylic cast tube to a shorter length myself?
Yes, the tube can be cut to a shorter length using suitable tools such as a fine-toothed saw or a dedicated plastics-cutting blade. It is important to support the tube securely, use slow, steady cutting speeds and deburr the cut edges afterwards. Always follow appropriate safety precautions when cutting.
Is this acrylic tube suitable for outdoor use?
The material offers good resistance to weathering and UV light, so it can be used outdoors in many situations, especially in covered or partially sheltered locations. However, performance will depend on the specific environment and exposure. For long-term external use, periodic inspection and cleaning are recommended.
Can the clear acrylic tube be used for high-pressure fluid systems?
This acrylic tube is not designed as a certified pressure pipe and is generally not recommended for high-pressure fluid applications. While it can be suitable for low-pressure visual inspection sections or gravity-fed systems, you should always check the mechanical requirements of your application and consult an engineer where necessary.
