Description

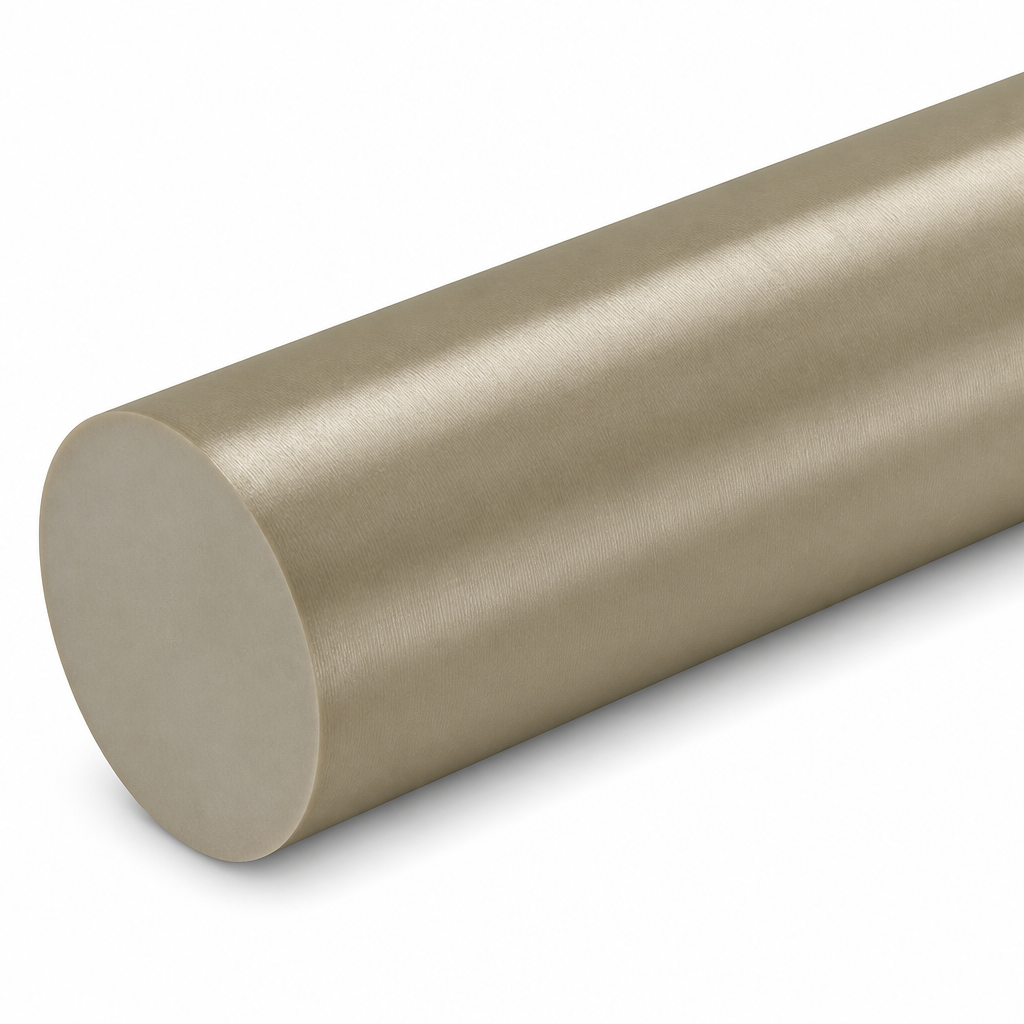

PEEK Rod is a high-performance thermoplastic known for its exceptional mechanical properties and temperature resistance. Ideal for use in demanding environments such as aerospace and medical industries.
Material Properties
PEEK, or Polyetheretherketone, is a semi-crystalline thermoplastic recognized for its high mechanical strength and temperature resistance, ranging from -50°C to +250°C. It is self-extinguishing according to UL 94 VO and complies with food safety regulations.
Performance Characteristics
PEEK Rod exhibits excellent high-temperature performance with a continuous service temperature of 260°C and a melting point of 343°C. Its tensile strength ranges from 90 to 100 MPa, making it significantly stronger than materials like nylon and acetal.
Applications and Uses
This versatile rod is used in various applications including seals, backup rings, valves, and components in the medical and aerospace sectors. PEEK Rod serves as a metal replacement in high-temperature applications and is compatible with vacuum environments.
Machining and Processing

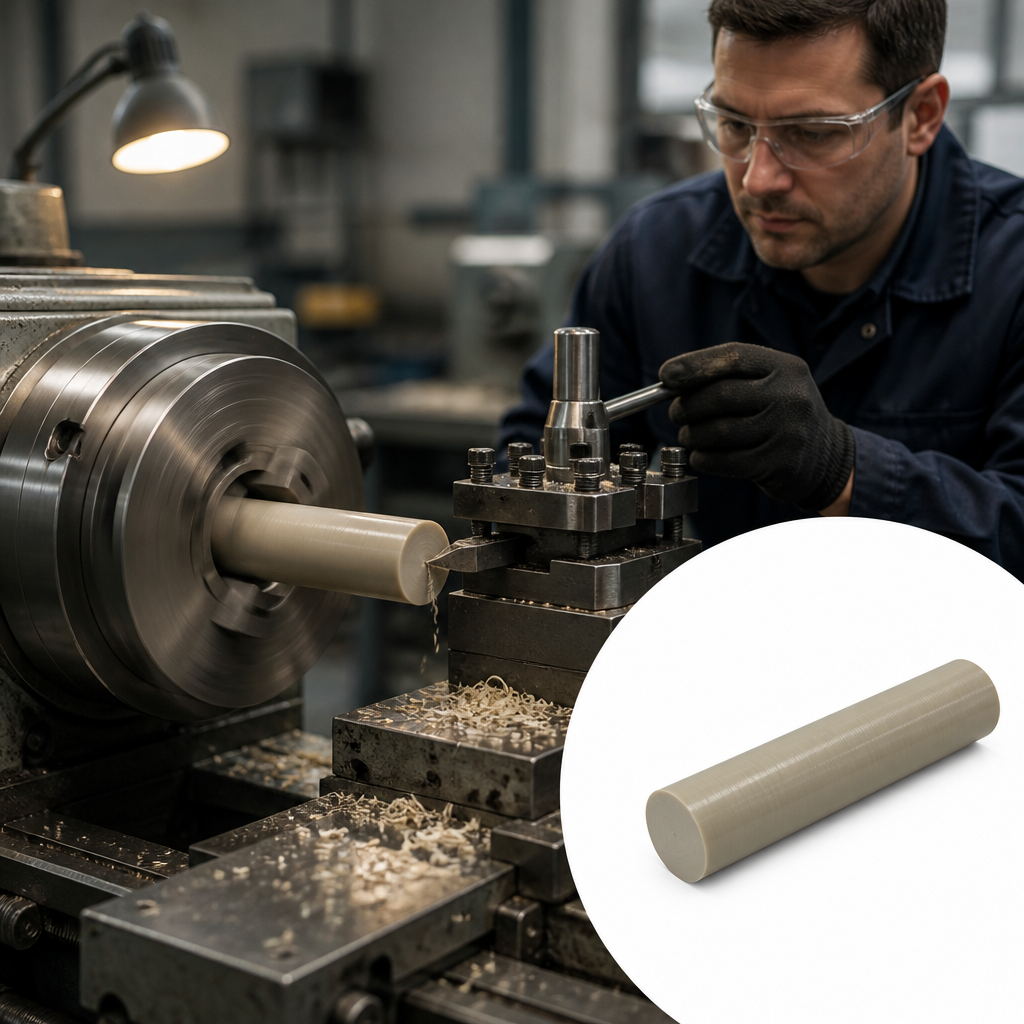

Machining PEEK Rod requires specific techniques to prevent surface cracks. It is recommended to use silicon carbide cutting tools and to machine dry, with pure water as the preferred coolant to maintain biocompatibility.
Specifications
- Material: Polyetheretherketone (PEEK)
- Temperature Resistance: -50°C to +250°C
- Melting Point: 343°C
- Tensile Strength: 90 - 100 MPa
- Diameter Range: 5mm to 180mm
- Food Compliant: Yes
- Chemical Resistance: Excellent
- Radiation Resistance: High
Benefits
- Safe for food contact
- Durable in high-temperature environments
- Long-lasting performance in demanding applications
- Reduced risk of degradation under radiation exposure
Use Cases
- Seals
- Back up rings
- Valves
- Medical
- Aerospace
FAQ
Q: Is PEEK Rod suitable for food applications?
A: Yes, natural PEEK grades comply with FDA regulations for extensive food contact.
Q: What is the temperature range for PEEK Rod?
A: PEEK Rod can withstand temperatures from -50°C to +250°C.
Q: Can PEEK Rod be bonded?
A: Bonding PEEK Rod is challenging due to its low surface energy, and it is recommended to consult a specialist adhesive supplier.
