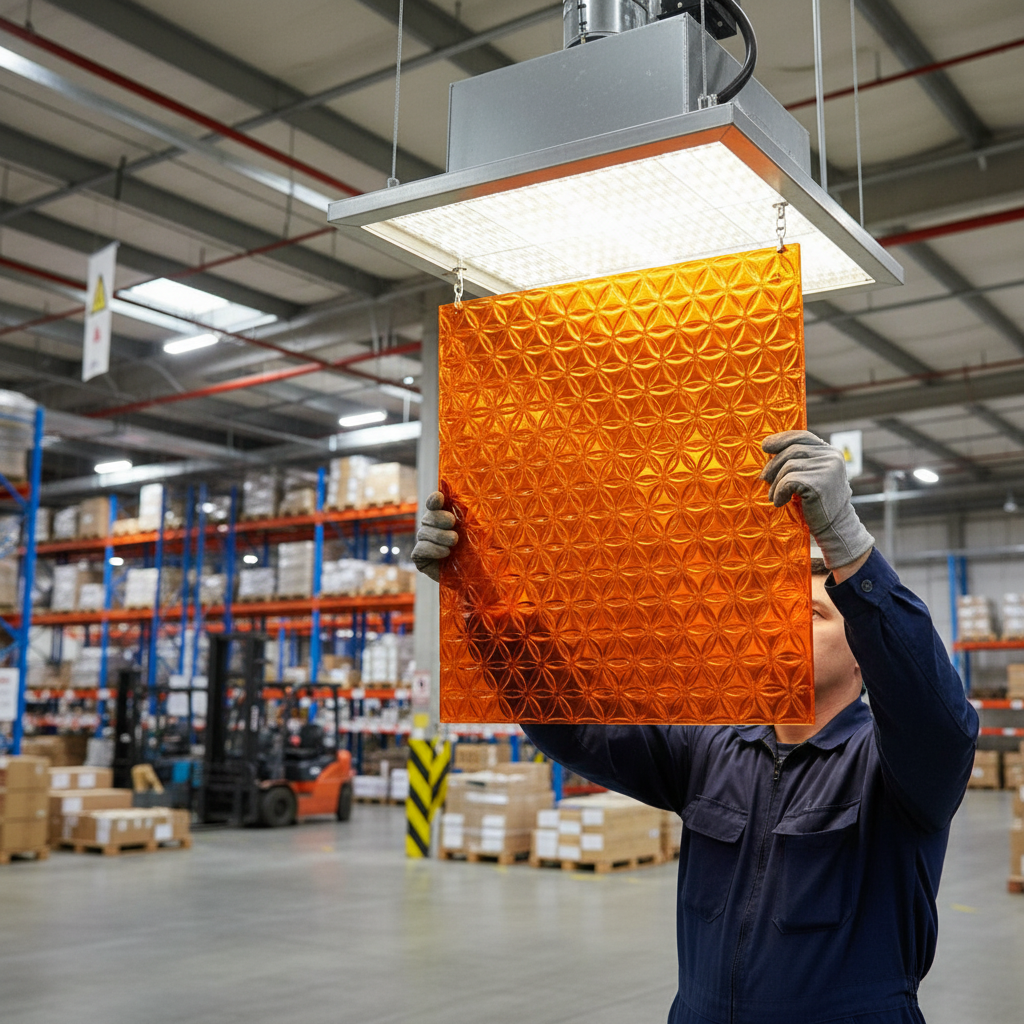

This Premium Honeycomb Composite Sheet features an airy yet rigid 3-dimensional translucent SAN inner core bonded with external layers of Acrylic. It is easy to cut and can be finished with standard accessories and profiles such as frames, handles, and hinges. Additionally, it can be edged with the same material used for the external layers.
Thanks to its lightweight, stiffness, translucency, and unique geometric pattern of its core, this structural panel has a wide variety of indoor applications. It is excellent for use as partition walls, wall presentations, lighting fixtures, bar- and counter fronts, stair panels, balustrades, doors, walls, and ceilings. Available in a range of colors with both transparent and satin finishes.
Technical Specifications
| Specification | Measurement |
|---|---|
| Material | Acrylic |
| Shape | Sheet |
| Color | Orange |
| Density (g/cm³) | 1.19 |
| E-modulus (MPa) | 3300 |
| COE (mm/m/10ºC) | 0.6 |
| Bending strength (kg/cm) | 1200 |
| Fire classification (EN13501) | E |
| Thickness tolerance | 0.4mm +/- 10% |
| Saw tolerance (mm) | +/-1 |
| Deviation angularity (mm/1m) | 1.5 |
| Service temp long term min (°C) | -10 |
| Service temp long term max (°C) | 50 |
| Material type | Honeycomb |
Applications
This composite sheet is ideal for a variety of indoor applications due to its durable structure and versatile design. Use it for:
- Partition walls
- Wall presentations
- Lighting fixtures
- Bar and counter fronts
- Stair panels
- Balustrades
- Doors, walls, and ceilings
FAQ
What are the key benefits of using this composite sheet?
Its lightweight and sturdy design makes it easy to install and adaptable for various uses.
Is this material fire resistant?
The composite sheet has a fire classification of E according to EN13501 standards.
What is the maximum service temperature?
The maximum service temperature for long-term use is 50°C.
