Description
Description

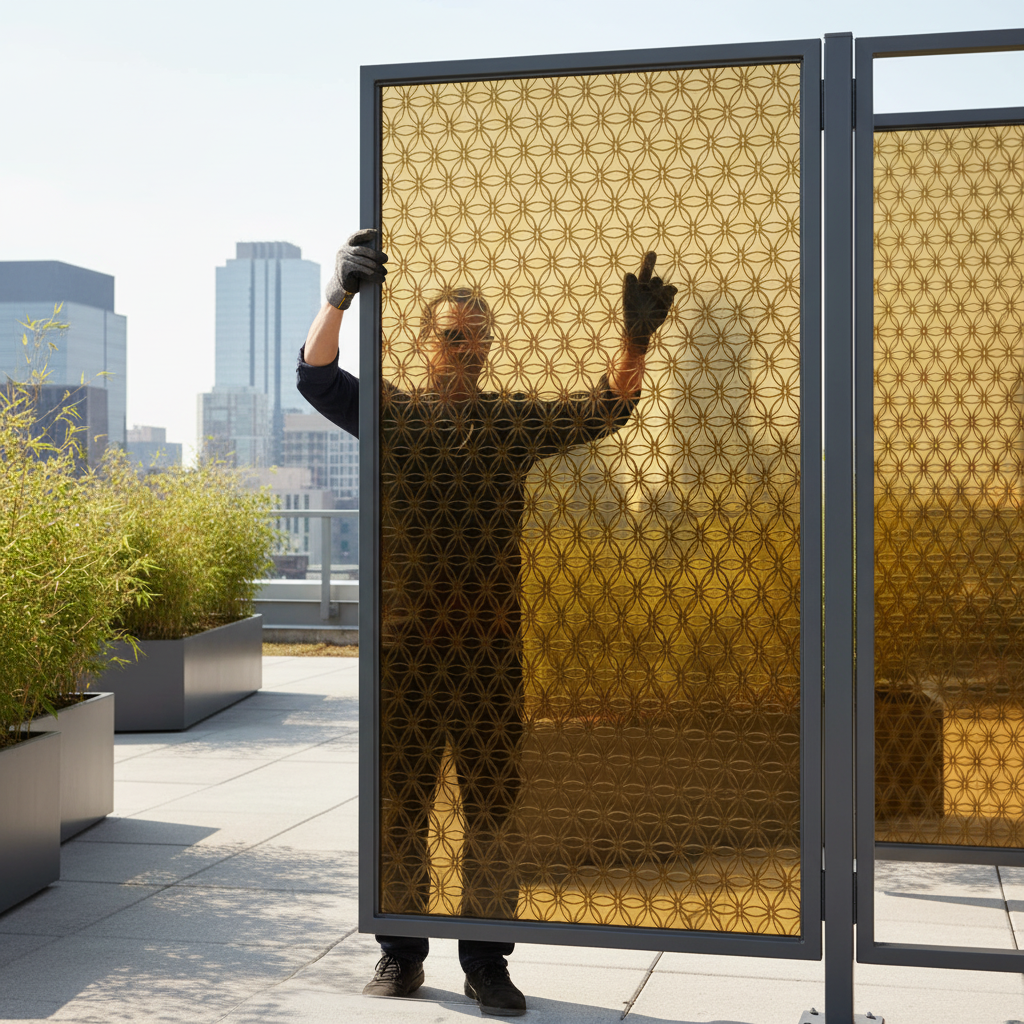

This honeycomb composite sheet features an airy yet rigid 3-dimensional translucent SAN inner core bonded with external layers of acrylic. It is easy to cut and can be finished with standard accessories and profiles such as frames, handles, and hinges. The composite sheet can also be edged with the same material used for the external layers.
Thanks to its characteristics of lightweight, stiffness, translucency, and the unique geometric pattern of its core, this structural panel has a wide variety of indoor applications. It is excellent for use as partition walls, wall presentations, lighting fixtures, bar and counter fronts, stair panels, balustrades, doors, walls, and ceilings. This sheet is available in a range of colors with both transparent and satin finishes.
Technical Specifications
| Specification | Measurement |
|---|---|
| Material | Acrylic |
| Shape | Sheet |
| Colour | Light Bronze |
| Density (g/cm³) | 1.19 |
| E-modulus (MPa) | 3300 |
| COE (mm/m/10ºC) | 0.6 |
| Bending strength (kg/cm) | 1200 |
| Fire classification (EN13501) | E |
| Thickness tolerance | 0.4mm +/- 10% |
| Saw tolerance (mm) | +/-1 |
| Deviation angularity (mm/1m) | 1.5 |
| Service temp long term min (°C) | -10 |
| Service temp long term max (°C) | 50 |
| Material type | Honeycomb |
Applications
This versatile composite sheet is suitable for various indoor applications, including:
- Partition walls
- Wall presentations
- Lighting fixtures
- Bar and counter fronts
- Stair panels
- Balustrades
- Doors
- Walls and ceilings
FAQs
What is the thickness of the honeycomb composite sheet?
The thickness tolerance is 0.4mm with a variance of +/- 10%.
Can this sheet be used outdoors?
This sheet is designed for indoor applications and has a service temperature range of -10°C to 50°C.
How can I cut the sheet?
The composite sheet is easy to cut and can be finished with standard accessories and profiles.
