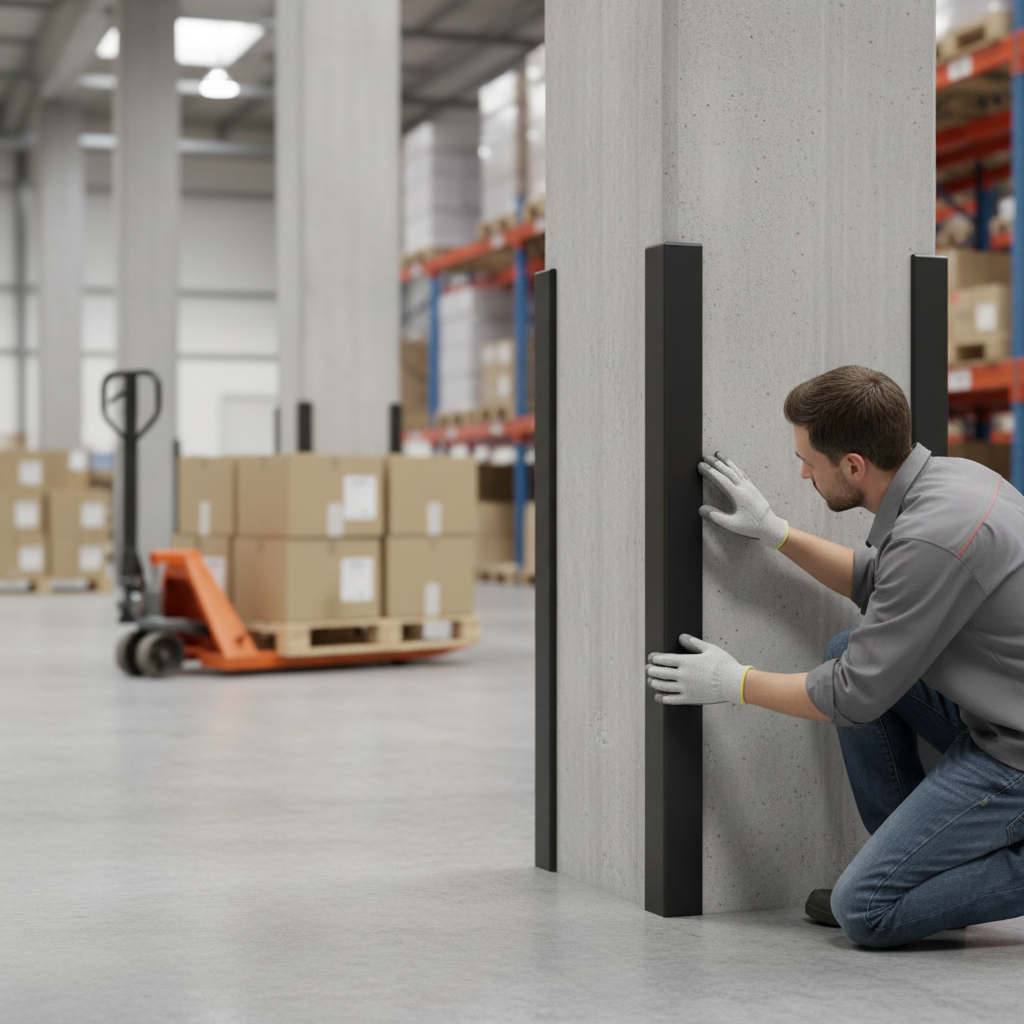

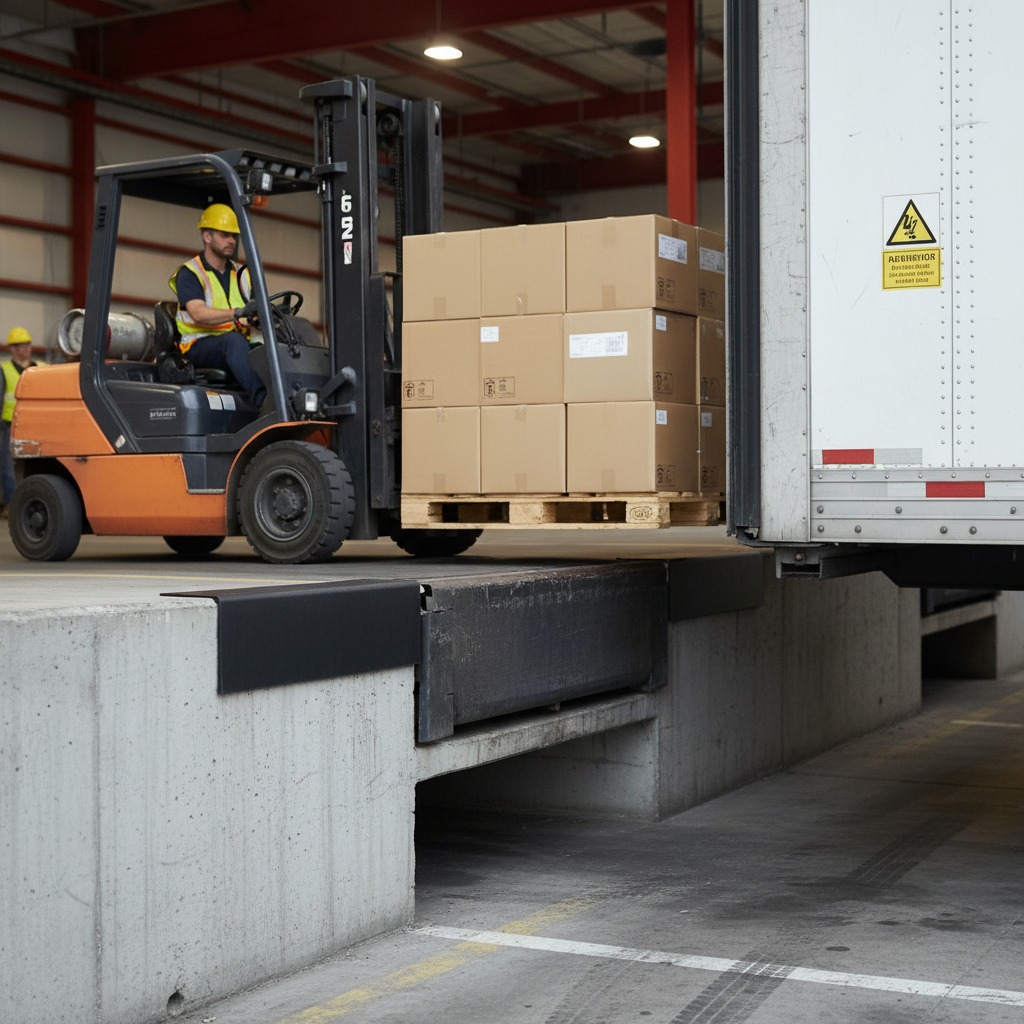

Our Premium Heavy Duty Plastic Angle Trim profiles are available in equal and unequal sizes and can be used for various applications, including corner protection, trimming, and beading. These profiles are manufactured from high-performance HDPE, characterized by a low density combined with high toughness. This material is resistant to most acids, bases, many organic solvents, and hot water, making it an excellent choice for a range of environments. Additionally, HDPE is a good electrical insulator.
Choose from a range of sizes to suit your design needs.
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Material | PE300 (HDPE) |
| Shape | Angle Trim |
| Colour | Black |
| Density (g/cm³) | 0.95 |
| Yield stress (MPa) | 27 |
| Elongation at break (%) | ≥70 |
| Notched impact strength (kJ/m²) | 20 |
| Shore hardness (scale D) | 69 |
| Tensile modulus of elasticity (MPa) | 1040 |
| Melting temperature (°C) | 130 |
| Thermal conductivity (W/(m*K) | 0.42 |
| CLTE (10⁻⁶K⁻¹) | 150 |
| Service temp long-term min (°C) | -50 |
| Service temp long-term max (°C) | 90 |
| Heat deflection temperature (°C) | 69 |
| Dielectric constant | 2.35 |
| Dielectric strength (kV/mm) | 45 |
| Volume resistivity (Ω*cm) | >10¹³ |
| Surface resistivity (Ω) | >10¹³ |
| Flammability | HB |
| Material type | Extruded |
Features & Benefits
- High toughness and durability for long-lasting use
- Resistant to most chemicals and hot water
- Excellent electrical insulation properties
- Versatile applications for corner protection and trimming
FAQ
What applications can the angle trim be used for?
The angle trim is suitable for corner protection, trimming, and beading in various environments.
Is the material resistant to chemicals?
Yes, the HDPE material is resistant to most acids, bases, and many organic solvents.
What is the temperature range for usage?
The service temperature range is from -50°C to 90°C, making it suitable for various applications.
