HDPE Sheet 3000 x 1500mm | High Density Polyethylene PE300 | Natural & Black | UK Stock

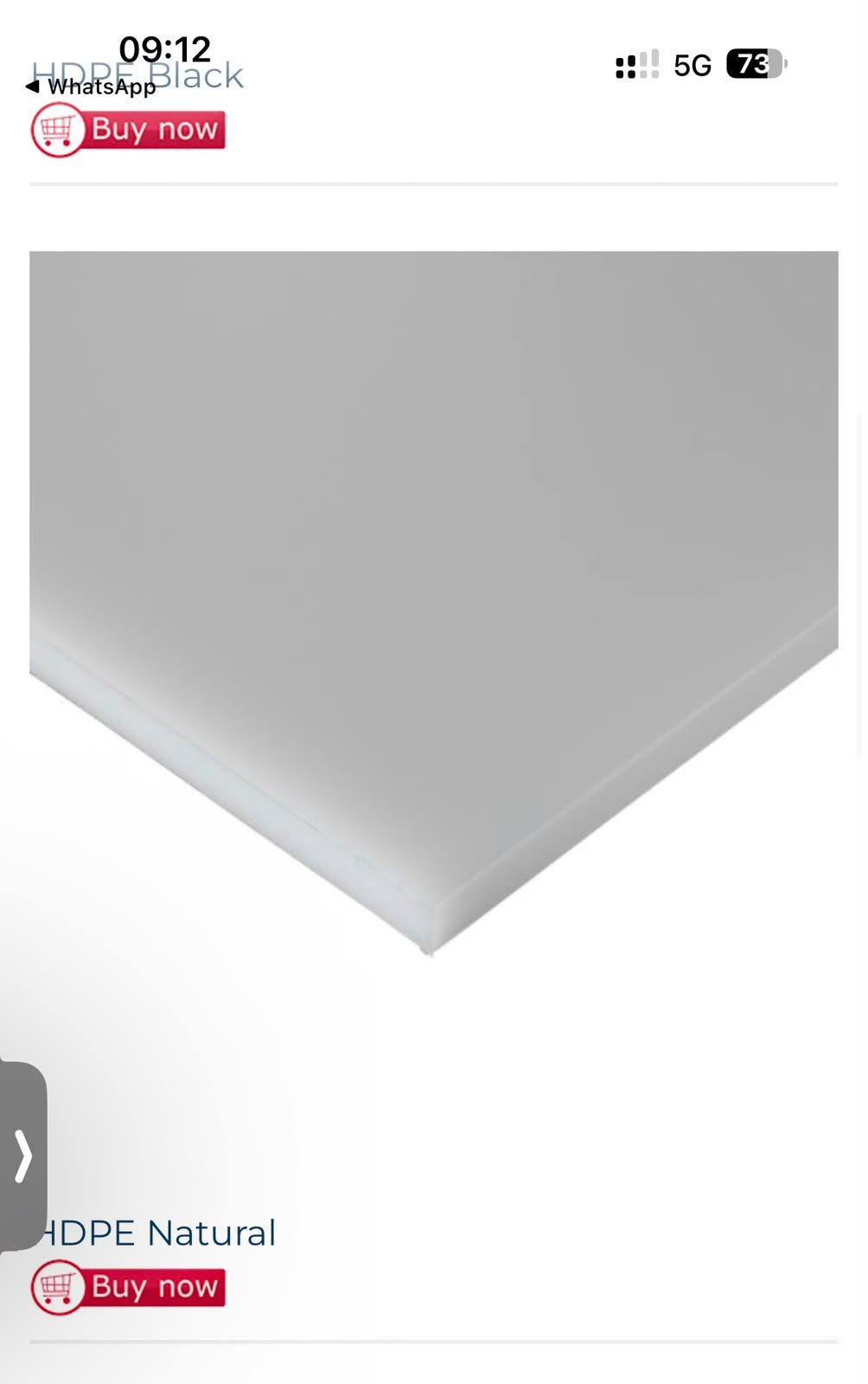

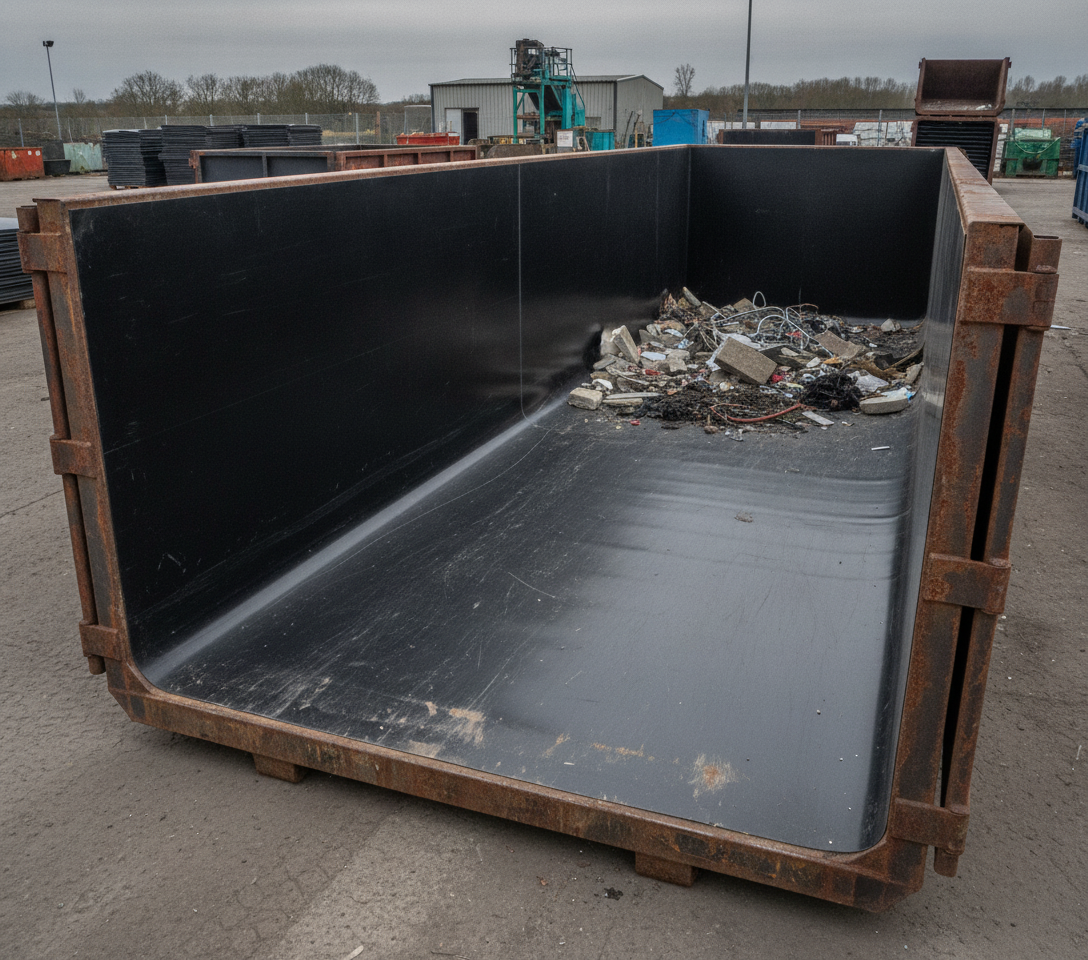

HDPE Sheet (High Density Polyethylene, PE300) in 3000 x 1500mm — available in Natural (white/cream) and Black, across 12 thicknesses from 2mm to 30mm. Sheet area: 4.5 m². Ideal for large industrial projects, skips, hopper linings, full-size panels.
HDPE PE300 is the UK's most widely specified general-purpose engineering plastic — known as the "chopping board material" but used across food production, industrial manufacturing, marine engineering, and precision machining. Food contact approved, chemically resistant, and self-lubricating.
Sheet Specifications
| Property | Value |
|---|---|
| Sheet Size | 3000 x 1500mm (4.5 m²) |
| Available Thicknesses | 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 20mm, 25mm, 30mm |
| Colours | Natural (White/Cream), Black |
| Material Grade | HDPE PE300 |
| Density | 0.96 g/cm³ |
| Operating Temperature | -50°C to +80°C |
| Tensile Strength | 22–28 MPa |
| Shore D Hardness | 60–65 |
| Water Absorption (24h) | <0.01% |
| Food Compliance | FDA / EU food contact approved ✅ |
| Chemical Resistance | Excellent — acids, alkalis, oils, solvents |
Thickness Tolerances
| Thickness | Tolerance |
|---|---|
| 1mm – 2mm | ±0.08–0.11mm |
| 3mm – 5mm | ±0.14–0.20mm |
| 6mm – 10mm | ±0.23–0.35mm |
| 12mm – 20mm | ±0.41–0.65mm |
| 25mm – 60mm | ±0.80–1.95mm |
Key Properties
- ✅ Food Safe & FDA Compliant — certified for direct food contact
- ✅ Excellent Chemical Resistance — resists acids, alkalis, oils and most solvents
- ✅ Low Friction / Self-Lubricating — waxy surface ideal for wear strips and slide pads
- ✅ Outstanding Wear Resistance — outperforms many metals as a liner/wear surface
- ✅ Lightweight — SG 0.96 (floats on water)
- ✅ Low Water Absorption — suitable for marine and wet environments
- ✅ High Impact Strength — even at sub-zero temperatures (-50°C)
- ✅ Machinable — CNC, drilling, routing, sawing with standard tools
Common Applications for 3000 x 1500mm Sheets
- Food Production: Chopping boards, food preparation surfaces, conveyor liners, meat processing equipment

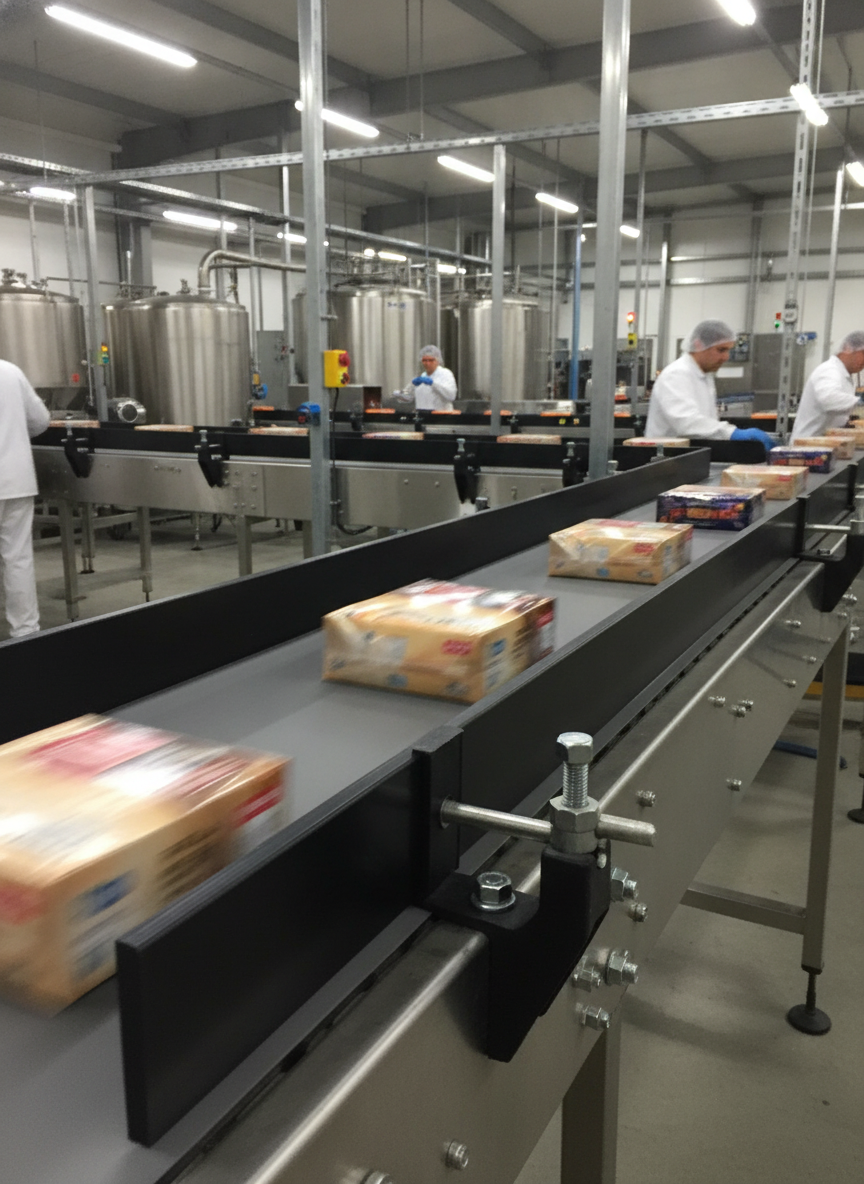

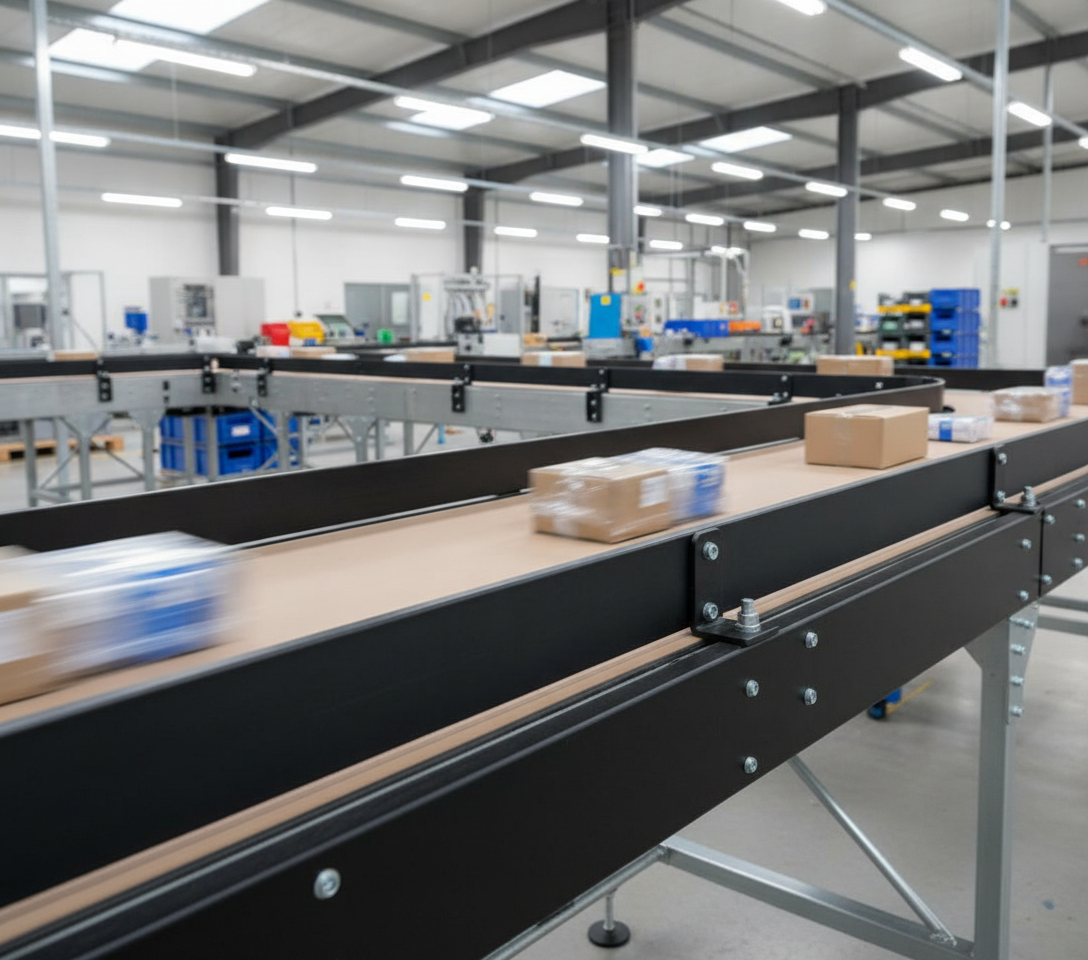

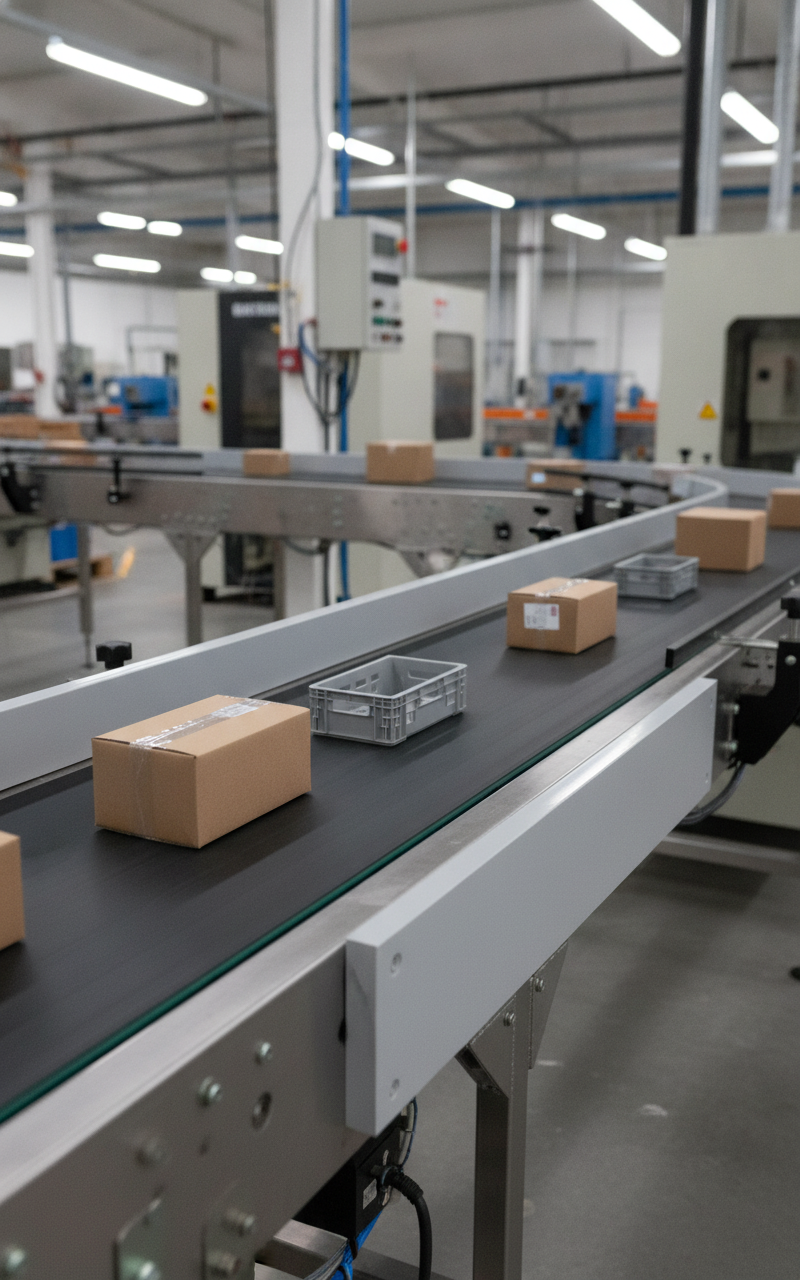

- Industrial Manufacturing: Conveyor wear strips, guide rails, slide pads, machine guards, wear liners
- Marine & Offshore: Hull protection, dock fenders, boat building components
- Engineering: Jigs, fixtures, spacers, insulators, bearing pads, tank construction
- Agriculture: Livestock equipment linings, feed troughs, stable mats, agricultural machinery guides
- Construction: Damp proof course, expansion joints, bridge bearings
Machining & Fabrication Notes
- Use sharp TCT (tungsten carbide tipped) tools — HDPE machines cleanly on CNC or conventional equipment
- HDPE has a low melting point (~130°C) — use coolant and avoid heat build-up when machining thicker sections
- Bonding: HDPE is difficult to bond with standard adhesives — use mechanical fixings (screws, bolts, rivets) or specialist HDPE adhesive
- Welding: Hot air welding with HDPE rod is possible for fabricated tanks and structures
- Standard woodworking saws work for rough cutting; TCT blades give cleanest edge finish
✅ UK Stock — 1–3 Day Dispatch | ✅ Food Contact Approved (FDA/EU) | ✅ Technical Support Available | ✅ Custom Sizes on Request
