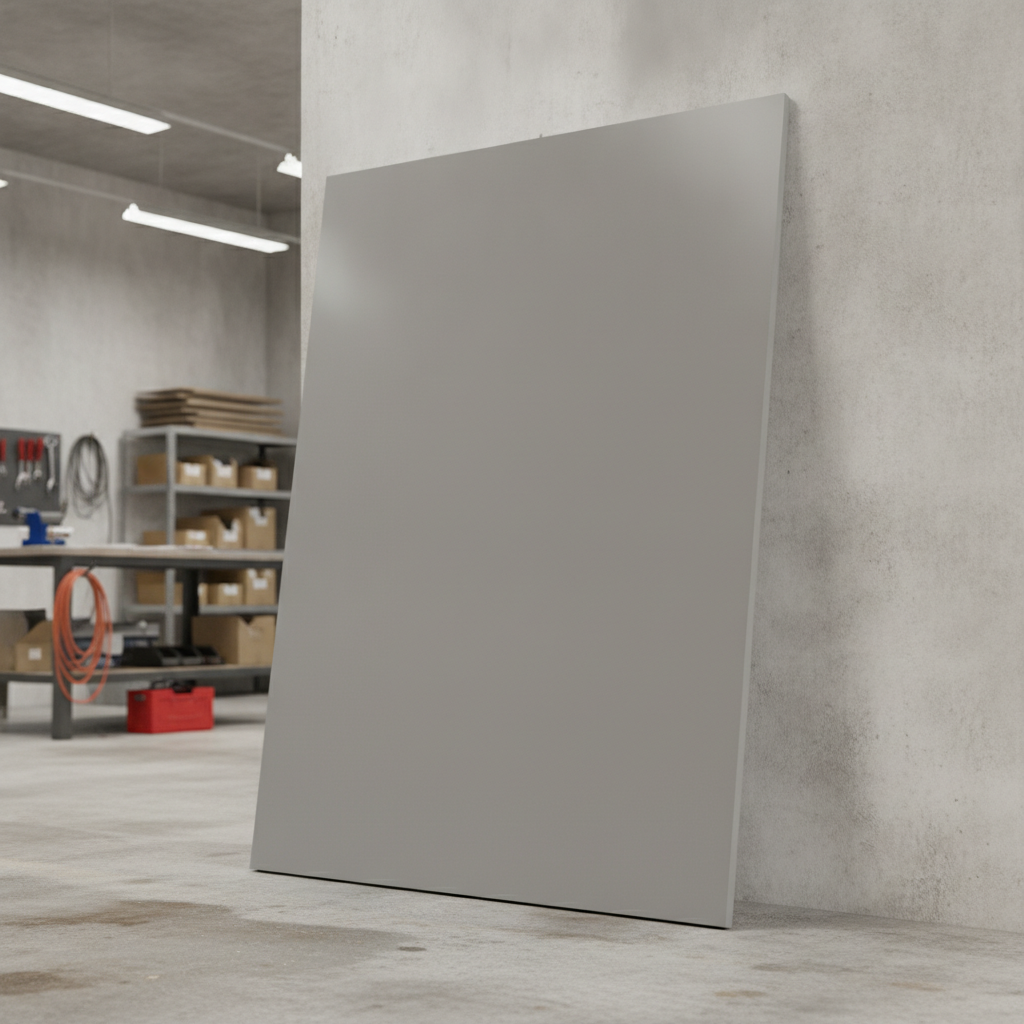

Grey Rigid PVC Sheet | All Sizes & Thicknesses | UK Stock
High-quality grey rigid PVC-U sheet available in a comprehensive range of sizes and thicknesses — from small offcuts through to large standard sheets. Select your exact size and thickness from the dropdown options. All sheets are cut square and despatched from UK stock.
Key Properties
- Material: Rigid PVC (PVC-U / Unplasticised PVC), grey
- Available sizes: 250×250mm up to 3000×1500mm
- Available thicknesses: 1.5mm up to 25mm (size dependent)
- Self-extinguishing — UL94-V0 rated
- Excellent chemical resistance to acids, alkalis and most solvents
- Good electrical insulating properties
- Low water absorption, high dimensional stability
- Working temperature: -10°C to +60°C
- Easily machined, welded and bonded
Typical Applications
- Chemical plant linings, tanks and ducting
- Laboratory furniture and splash-back panels
- Signage, display boards and templates
- Wall cladding and protective linings
- Electronic enclosures and insulators
- Fabricated fittings, valves and components
- Drainage channels and pipe fittings
- Battery boxes and acid-resistant trays
Material Specifications
| Property | Value |
|---|---|
| Material | Rigid PVC (PVC-U) |
| Colour | Grey |
| Density | 1.38–1.45 g/cm³ |
| Tensile Strength | ~50 MPa |
| Flexural Modulus | ~3000 MPa |
| Max Continuous Temp | 60°C |
| Flammability | Self-extinguishing (UL94-V0) |
| Standard | EN ISO 1163, DIN 7748 |
Fabrication Guide
Rigid PVC machines cleanly using standard woodworking or metalworking tooling — circular saws, jigsaws, drills, routers and mills all work well. For the best finish use carbide-tipped blades with 10–20mm tooth spacing. Edges can be degreased and bonded with solvent cement or contact adhesive. PVC welding rod can be used for continuous butt or fillet welds.
Why Buy From Us?
- ✅ UK stock — fast despatch
- ✅ All standard sheet sizes and popular cut sizes in one listing
- ✅ Clean, square-cut edges
- ✅ Suitable for trade and light industrial use
- ✅ Need a size not listed? Contact us for a custom cut quote
