Description
These premium flexible convex top T barb sections provide a neat, durable edging trim for panels, boards and sheet materials. Supplied in a convenient 25m coil, they are designed to push-fit into a groove, creating a smooth, convex visible edge with a secure barb fixing hidden within the substrate.
Manufactured from high-quality PVC and available in white or black, these T-shaped edging profiles are ideal for finishing furniture panels, displays, counters, partitioning and internal cladding. Their flexible construction allows them to follow gentle curves and irregular lines while maintaining a clean, professional appearance.
Product Features
- Flexible convex top T barb profile for neat panel and board edging.
- Supplied in a 25m coil for efficient installation and minimal joints.
- Range of sizes to suit different groove and panel dimensions: 15 x 3.5 x 8 x 2mm, 20 x 3 x 12 x 2mm, 25 x 3 x 12 x 2mm, 30 x 4 x 12 x 2mm and 40 x 4 x 12 x 2mm.
- Choice of colours to match or contrast with surrounding surfaces: white or black PVC.
- Convex top provides a smooth, rounded finished edge that is comfortable to touch.
- Integrated barb section for secure push-fit location into a pre-routed slot or groove.
- Durable PVC material suitable for internal applications in a wide range of environments.
Key Features and Benefits
- Improves appearance by covering raw or cut panel edges with a tidy, uniform convex trim.
- Helps protect edges from knocks, chipping and general wear, extending the life of panels and boards.
- Push-fit barb design allows quick, tool-light installation and easy on-site cutting to length.
- Flexible PVC construction accommodates gentle curves and uneven lines without cracking.
- Available in multiple sizes, enabling a close match to existing grooves and substrates for a secure fit.
- Neutral white and black colour options blend readily with common decor and furniture finishes.
Specifications
| Specification | Detail |
|---|---|
| Profile type | Flexible convex top T barb edging section |
| Available sizes (mm) | 15 x 3.5 x 8 x 2; 20 x 3 x 12 x 2; 25 x 3 x 12 x 2; 30 x 4 x 12 x 2; 40 x 4 x 12 x 2 |
| Colours | White, Black |
| Material | Flexible PVC (polyvinyl chloride), suitable for internal use |
| Supply format | 25m coil length per roll |
| Installation method | Push-fit into pre-cut groove/slot in panel edge |
Applications and Ideal Uses
These flexible convex top T barb sections are suitable for a wide range of edge-finishing tasks in commercial, retail and domestic interiors.
- Edging for furniture panels, counter tops and shelving units.
- Trim for internal wall cladding, partition panels and display boards.
- Finishing exposed edges on shopfitting, exhibition stands and point-of-sale units.
- Protective edging for office screens, cubicle partitions and decorative panels.
- General purpose panel and board edging in workshops, schools and public buildings.
Frequently Asked Questions
How do I choose the correct size of T barb section for my panel?
Match the barb dimensions to the width and depth of the groove or slot in your panel. The figures given (for example 20 x 3 x 12 x 2mm) relate to the overall profile and barb size; check that the barb thickness and depth correspond closely to your routed groove so that the section will push in firmly without being too loose or overly tight.
Can these PVC T barb profiles be bent around curves?
Yes, the flexible PVC construction allows the sections to follow gentle curves and radii commonly found on counters and panels. Very tight bends are not recommended, as this may cause deformation or stress; for best results, form the curve gradually and avoid sharp corners.
How are the T barb edging trims cut and installed?

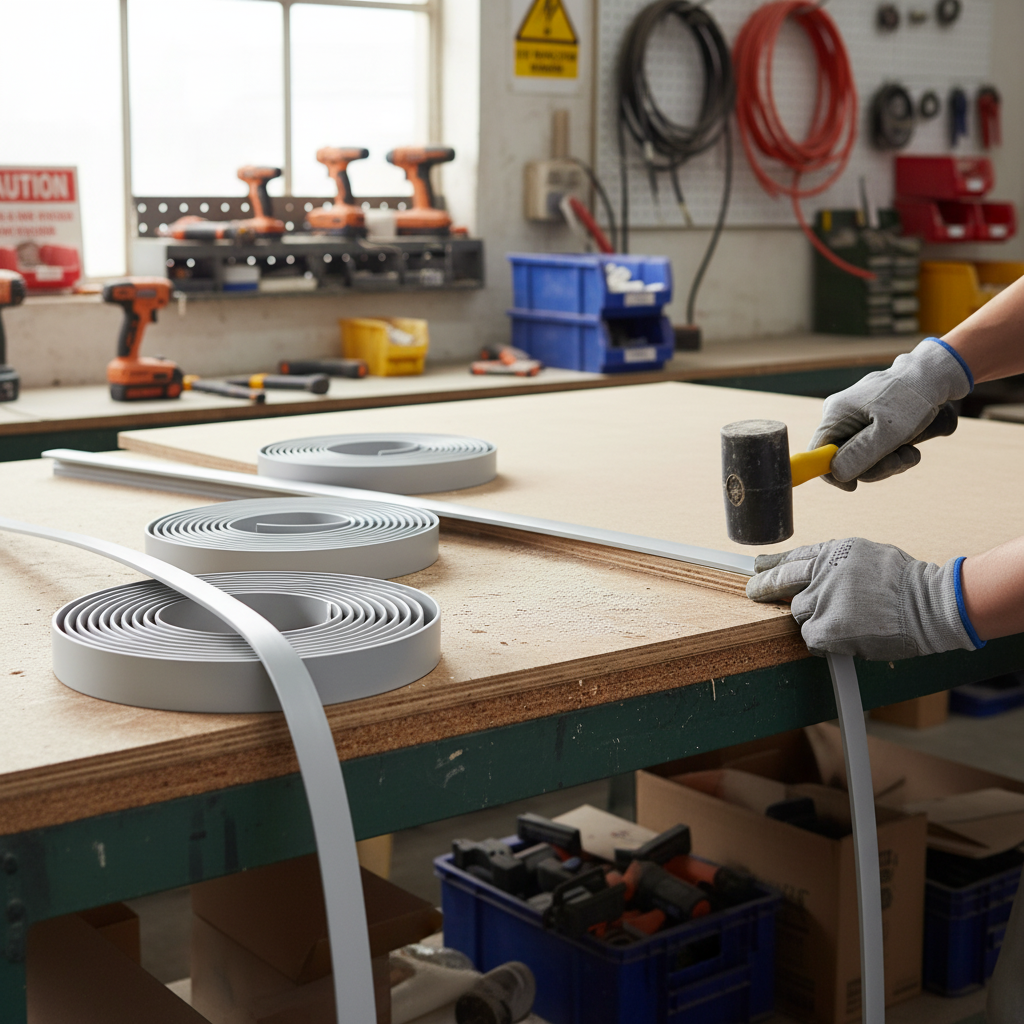

Measure the required length and cut the profile square using a fine-toothed saw or heavy-duty shears appropriate for plastics. Ensure the groove is clean and accurately sized, then press the barb section into the slot by hand or with a soft-faced tool, working along the edge until the convex top sits evenly against the panel surface.
