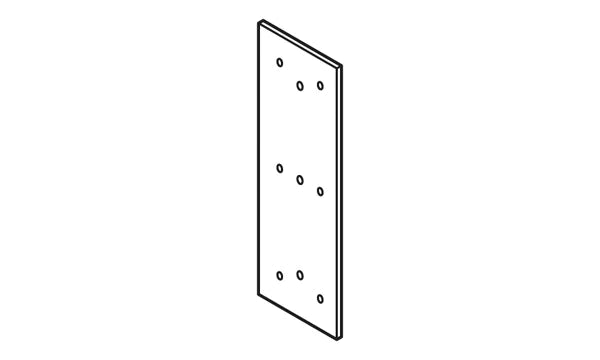

Bumper Stud Back Plate - 750 x 255 x 15 mm


Price
Sale price £210.24 | (Inc. VAT)

Description

It is easier and quicker to replace damaged bumpers or studs fixed to a back plate compared to those fixed directly into concrete.

The quoted price for this item excludes any fixings which can be purchased at extra cost, see our Fixings section.

The back plate has 3 x M24 threaded holes to accommodate any of our 750mm rubber bumpers. There are also 6 holes for fixing the plate to the bay, 4 are 18mm dia and 2 are 27mm dia ( the larger holes are there to allow this part to be fitted with an angle bracket to take the backplate above the dock - see part SN061 & SN062 ).

Our part SN301 M16x125mm can be used to fix this backplate to sound concrete walls. Note: 2 x SN476  M16x50mm OD washers are also needed to cover the 27mm holes on the top of the backplate.

Approx Dims:

  • 750 x 255 x 15 mm

Weight:

  • 24 kg
