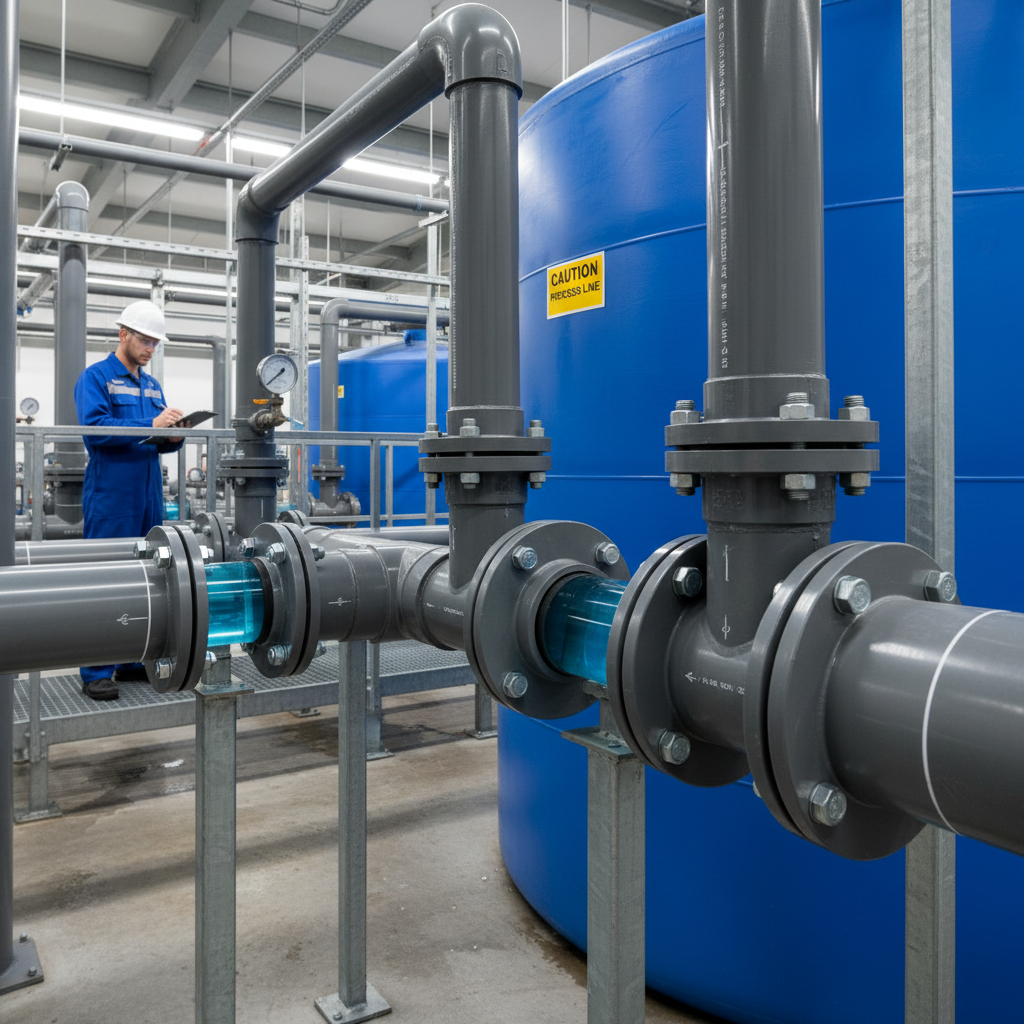

The Premium PVCu Full Face Flange Drilled to BS4504 NP10/16 with Plain Metric Socket is a high-quality flange manufactured in accordance with British Standards. This product conforms to the EEC safety level for Vinyl Chloride Monomer (VCM) and meets the requirements of the Water Regulations Advisory Scheme for potable water.
Designed for durability and efficiency, our PVCu fittings boast a temperature resistance range from 5°C to 60°C and offer excellent abrasion and corrosion resistance. These fittings are the ideal alternative to metal systems, providing significant savings on labor, maintenance, and materials. Lightweight and easy to install with only basic tools, PVCu Plain Metric fittings also feature exceptional chemical resistance.
Technical Specifications
| Specification | Measurement |
|---|---|
| Colour | Grey |
| Density (g/cm³) | 1.38 |
| Water absorption (mg/cm³) | <4 |
| Elongation at break (%) | >30 |
| Thermal conductivity (W/(m*K)) | 0.14 |
| CLTE (mm/m °C) | 0.08 |
| Service temp long term min (°C) | 0 |
| Service temp long term max (°C) | 60 |
| Material type | Pipe Fittings |
Benefits
- Lightweight design for easy handling and installation
- Cost-effective alternative to metal fittings
- Excellent chemical resistance ensures longevity
- Conforms to safety standards for potable water
FAQs
What temperature range can the flange handle?
The flange can withstand temperatures from 5°C to 60°C.
What is the color of the flange?
The flange is grey in color.
Is installation easy?

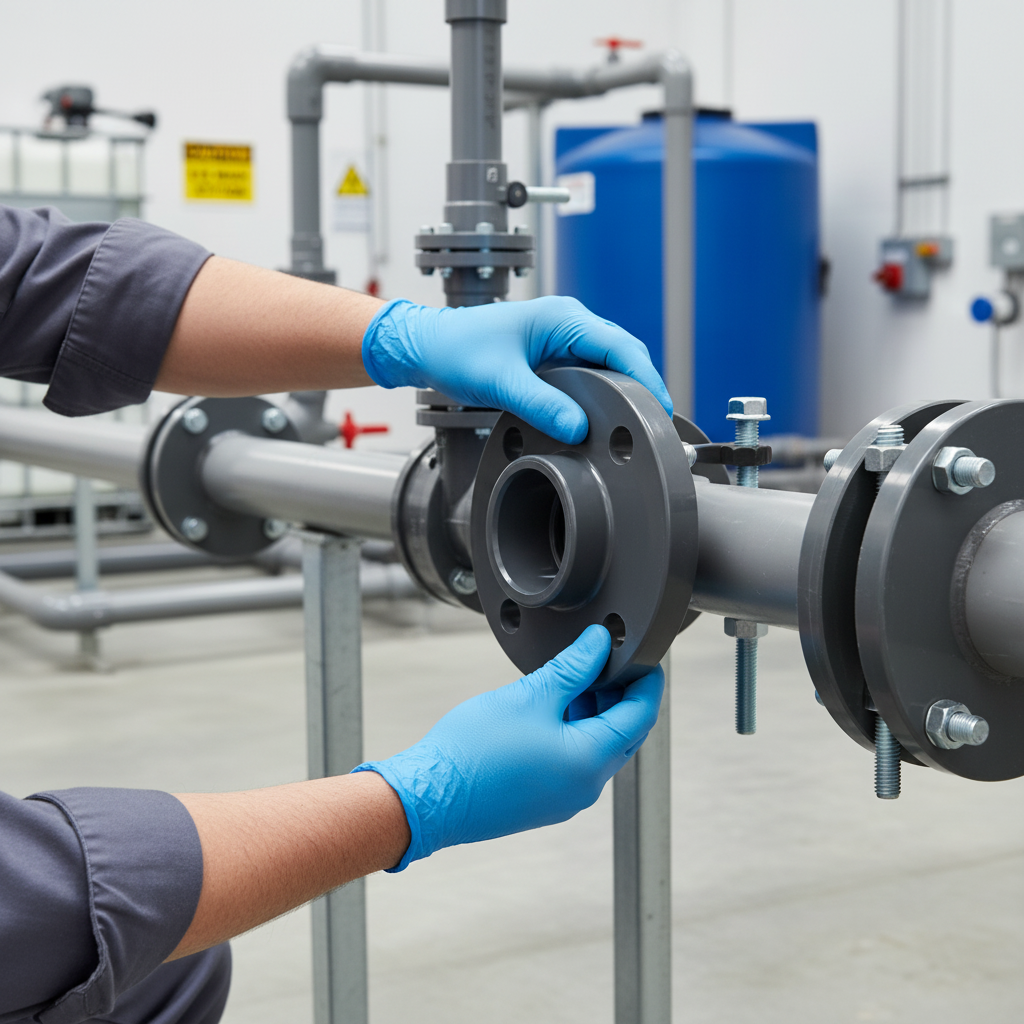

Yes, the flange is lightweight and can be installed using basic tools.
