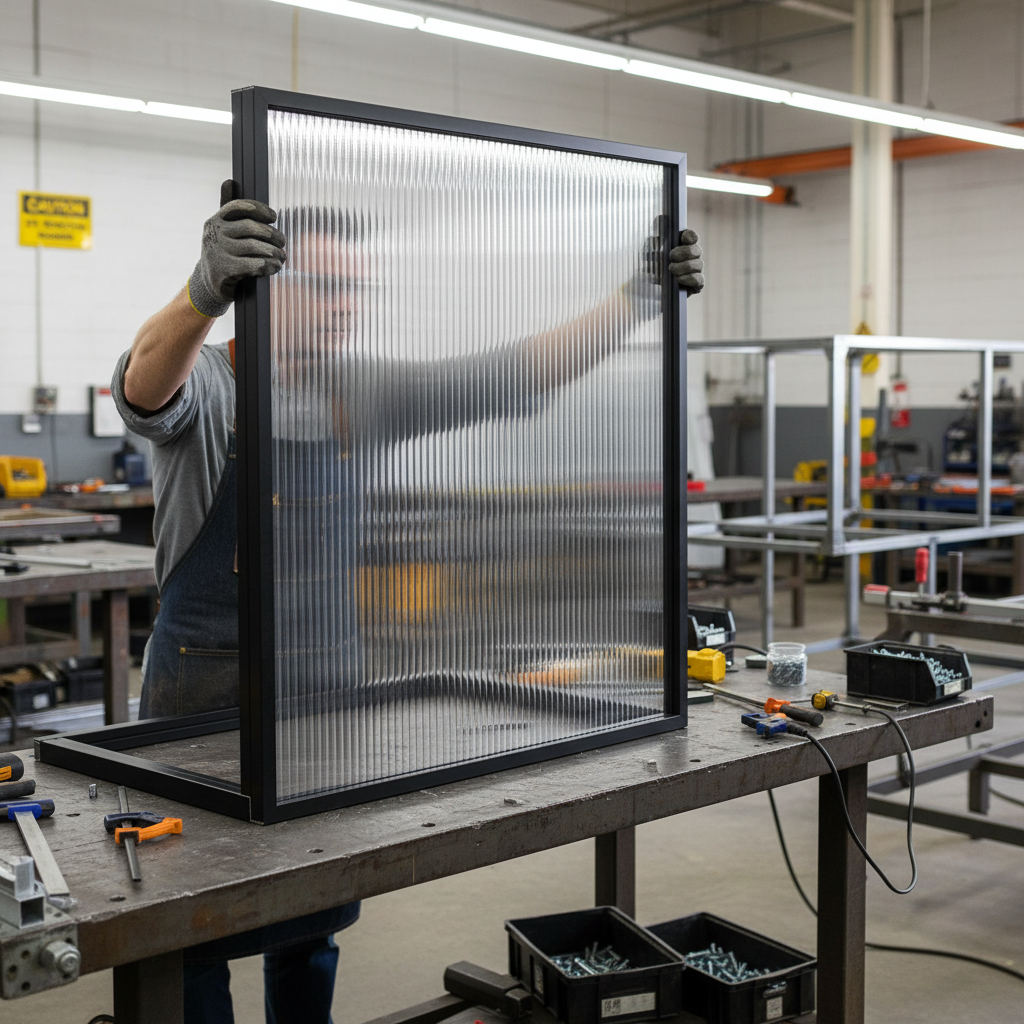

Premium Acrylic Extruded Reeded Sheets provide a strong and cost-effective alternative to traditional reeded glass. They are impact resistant, UV stable, and easy to maintain, offering excellent clarity with an element of obscuration, which opens up unique possibilities for designers. The ribbed pattern is suitable for a wide range of applications including lighting, retail displays, exhibitions, backlit facias, partitions, and cabinetry.
Please note: The convex reeds of the design run parallel to the sheet length of 2440mm with a nominal reed width of 9mm. These sheets are suitable for thermoforming. If you have requirements for machined or finished components, please inquire about bespoke services.
Technical Specifications
| Specification | Measurement |
|---|---|
| Material | Acrylic |
| Shape | Sheet |
| Colour | Clear |
| Density (g/cm³) | 1.19 |
| Water absorption (%) | 0.26 |
| Elongation at break (%) | 4 |
| Service temp long term min (°C) | -40 |
| Service temp long term max (°C) | 70 |
| Flammability 3mm | HB |
| Flammability 6mm | HB |
Applications
- Lighting fixtures
- Retail displays
- Exhibitions and trade shows
- Backlit facias
- Partitions and cabinetry
FAQ
-
Can the acrylic sheet be thermoformed?
Yes, it is suitable for thermoforming. -
What is the width of the reeds?
The nominal reed width is 9mm. -
What is the maximum service temperature?
The maximum service temperature is 70°C.
